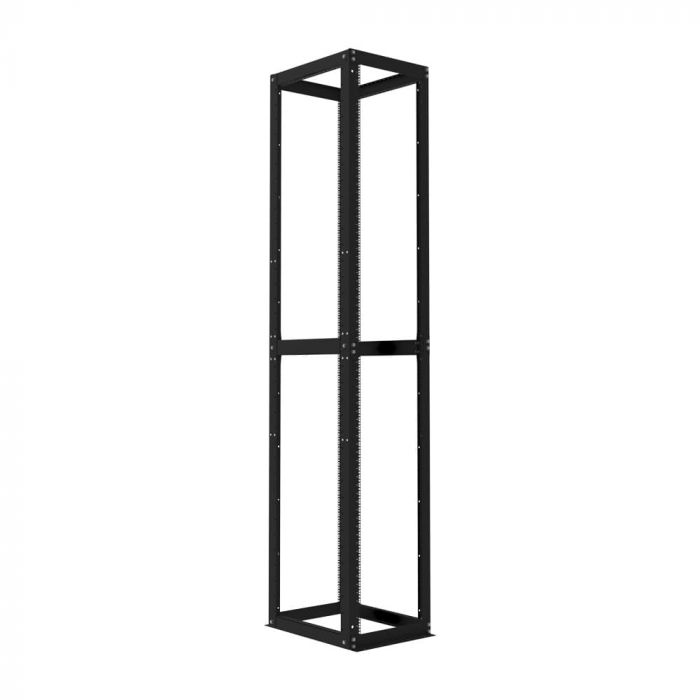

70U 111 Open Frame Rack 24" W x 28.875" D

Order Available ONLY by Phone 888-505-RACK

Need a custom size or rack? Give us a call. We have engineers ready to design your product and in house manufacturing for FAST turnaround time.

70U of Rackable Space

  • Rackmount Depth: 28.875" (733mm)
  • Rack Height: 122.6" (3,124mm)
  • Hole Type: 3/8" Square Holes
  • 24" width is perfect for data centers
  • Static load capacity of 4000 lb

Dell, HP, IBM, Cisco compatible*

  • Uses less floor space than cabinets
  • Flush floor mount spreads load on floor tiles
  • Base may be bolted to floor for stability
  • Optimizes cooling
  • Makes wiring easy
  • Streamlined support for power strips, PDUs
*Note: 28.875" depth only
Need a Cable Management Bar? Ask to add 137-5940
to your order when you call 1-888-505-RACK

See "Additional Information" for Tech Specs.

Softlayer (desktop image)Softlayer (mobile image)

RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer®.

The RackSolutions 70U Open Frame Server Rack is possibly the tallest server rack in the world that meets all EIA standards. The 28.875" server rack depth is compatible with all the major OEM's such as Dell, HP, IBM, and Cisco. Compatible with overhead cable trays from B-Line and other manufacturers. Read more about Open Frame Racks (opens in a new tab).

The 70U Open Frame Rack is available by phone. Please call 1-888-505-RACK to order.

Rack Top Options

Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Tops with or without cable pass-throughs. Hardware included.

Rack 111 Rack Top with Cable Pass-throughs (desktop image)Rack 111 Rack Top with Cable Pass-throughs (mobile image)
Rack 111 Rack Top without Cable Pass-throughs (desktop image)Rack 111 Rack Top without Cable Pass-throughs (mobile image)

Power Distribution: Choose from 8, 16 or 24 Outlets


P/N: PSV-F24-15A-S (24 Outlet)

16 Outlet Powerstrip

P/N: PSV-F16-15A-R (16 Outlet)

8 Outlet Powerstrip

P/N: PSV-F8-15A-Q (8 Outlet)

Installation Examples

Open Frame Racks Bayed Together  (desktop image)Open Frame Racks Bayed Together  (mobile image)

Here’s a great example of three, open frame racks bayed together in a server room.

Rack 111 Open Frame Rack with Callouts  (desktop image)Rack 111 Open Frame Rack with Callouts  (mobile image)

Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 169.030000
Country of Manufacture United States
Included Hardware 111-5215
  • Metal Parts:
    • (4) Long Vertical Rack Posts
    • (4) Short Vertical Rack Posts
    • (2) Front-to-Rear Middle Braces
    • (4) Doubler Plates
    • (4) C-Channels
    • (4) Front-to-Rear Braces
    • (2) Bottom Anchor Angles
    • (2) Top Angles
  • Fasteners:
    • (44) 1/2-13 Bolts
    • (12) 1/2-13 Nuts
    • (44) 1/2 Washers
    • (32) 1/4-20 Screw
    • (1) Floor Anchor Kit w/ Drill
Rack Type 4 Post Rack, Open Frame
Rack Internal Width EIA 19" Standard Rack
Ingram Part Number 111-5215 - 8FG034
Tech Notes Hole Type: EIA 3/8" square hole
Rack Post: J-shape

Rack Height: 122.6" (3124 mm)
Rack Mount Depths: 28.875" (733 mm)
Finish Black, textured powder coat
Assembly Notes 3/4" wrench required
Assembly time is approximately 15 minutes
Rack Units 70U
