HP DL320 G2 - Rackmount Rail Guide

Availability: In stock

HP DL320 G2 - Rackmount Rail Guide

HP Quick-Rails

The server ships with Fixed Rails which support several rack options

Sliding Rail Option

The Slide Rail option is for square holed racks with an installation depth of approximately 29"

2Post Rail Option

The 2Post Rail option supports uprights from 3" to 6.5"

3rd Party Rail Option

The 3rd Party Rail option supports round or square holed racks with an installation depth from 28" to 33"

2Post center mount

  1. Use the HP 3rd party rail kit, and convert 2U of 2Post rack to 4Post using 2POST-2UKIT

2Post flush mount

  1. Use the HP 3rd party rail kit and 4UKIT-003 (4 servers per 4U kit)

4Post square hole racks

  1. Use the HP Quick-Rails for Compaq square hole racks only. (29.12" mounting depth)
  2. Use the HP 3rd party rail kit for all other square hole racks
  3. Cage nuts are required

4Post round hole racks

  1. Use the HP 3rd party rail kit

4Post threaded hole racks

  1. Use the HP 3rd party rail kit

Double 2Post Racks

  1. Use the HP 3rd party rail kit

Wall Mounting

  1. Use HP Universal Rail Kit
  2. Use 1URACK-110 Wall Mount Kit

Rack Issues, Problems

  1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.

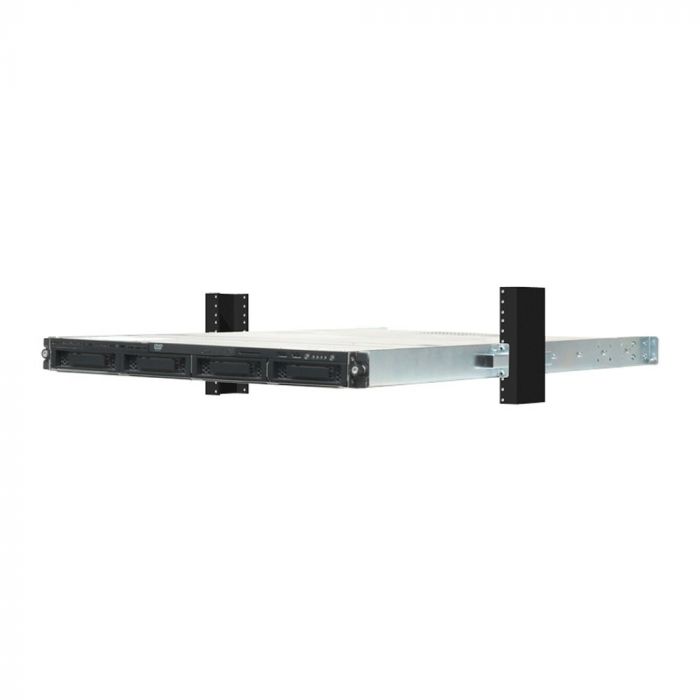

Note: Your server may look different than the one pictured

HPE Servers
Product Name SKU Price Qty
2U, 2Post Conversion Kit 2POST-2UKIT
CA$139.99
4U, Flush Mount, Conversion Kit for 2Post Racks 4UKIT-003
CA$199.99
Description

Details

Our Rackmount Rail Guide serves to show how the HP DL320 G2 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.
