HP DL365 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL365 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 4UKIT-009 and 2POST-2UKIT as mounting solutions for this server chassis.
Note: Your server may look different than the one pictured


+ HP Standard 1U Universal Rail Kit
The HP Standard Rail Kit supports square or round holed racks with an installation depth of 22.25" - 37.75"

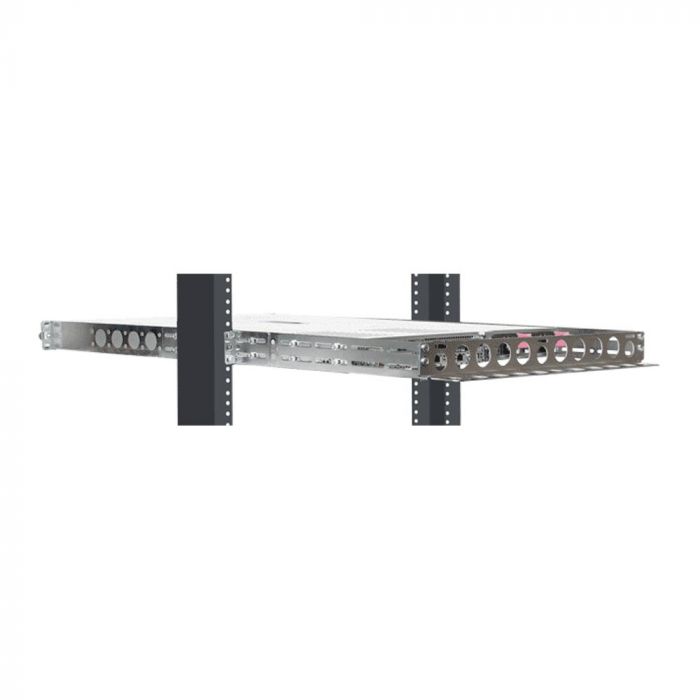

+ 2Post center mount
Use the HP standard 1U universal rail kit
Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (1 kit mounts two servers)
+ 2Post flush mount
Use the HP standard 1U universal rail kit and 4UKIT-003 (4 servers per 4U kit)
+ 4Post square hole racks
Use the HP standard 1U universal rail kit
29.12" (73.96 cm) mounting depth
+ 4Post round hole racks
Use the HP standard 1U universal rail kit
+ 4Post threaded hole racks
Use the HP standard 1U universal rail kit
+ Double 2Post racks
Use the HP standard 1U universal rail kit
+ Wall Mounting
Use HP Universal Rail Kit
Use 1URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
