HP DL385 G2 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL385 G2 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.

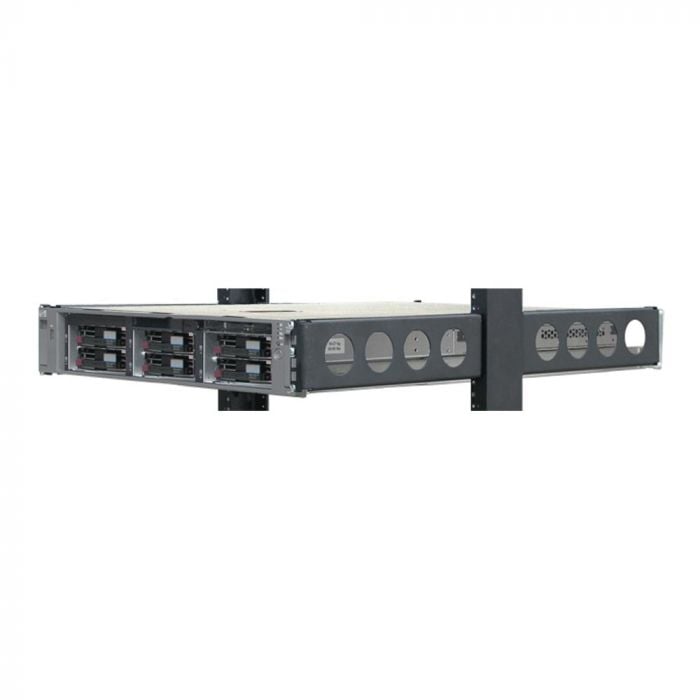

Note: Your server may look different than the one pictured


+ HP Standard 2U Universal Rail Kit
Used for Most 19" 4Post Racks.
Compatible with both square and round holed racks.
Rack mounting depth must be between 22" and 35 3/4"
+ 2Post center mount
Use the HP standard 2U universal rail kit, and convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts one server)
Compatible with upright depths from 3 - 10" (76 - 254 mm)
If you don't have the HP standard 2U universal rail kit, use the 2UKIT-009 fixed rail kit.
+ 2Post flush mount
Use the HP standard 2U universal rail kit
Convert 4U of 2Post rack space using 4UKIT-003
Compatible with upright depths from 3 - 10" (76 - 254 mm)
+ 4Post square hole racks
Use the HP Standard 2U universal rail kit
Tool-free support for square, round hole racks
Adjustable depth of 22 - 35" (559 - 889 mm)
+ 4Post round hole racks
Use the HP Standard 2U universal rail kit
Tool-free support for square, round hole racks
Adjustable depth of 22 - 35" (559 - 889 mm)
+ 4Post threaded hole racks
Use the HP Standard 2U universal rail kit
Tool-free support for square, round hole racks
Adjustable depth of 22 - 35" (559 - 889 mm)
+ Wall Mounting
Use HP Universal Rail Kit
Use 2URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
