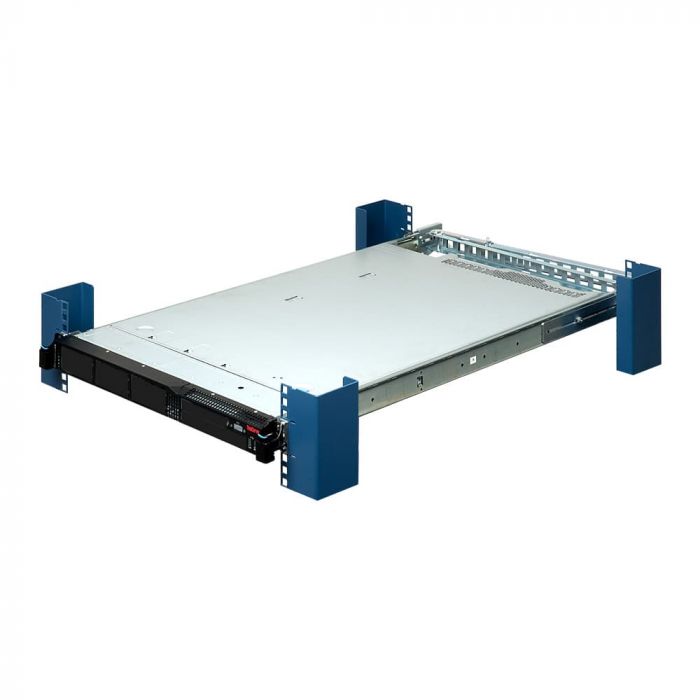

IBM x3550 M2, x3650 M2, x3650 M4 Slide Rails

Availability: In stock

IBM x3550 M2, x3650 M2, x3650 M4 Slide Rails

Works with 4Post, 2Post and Double 2Post Racks

  • Allows xSeries 3550, 3650 M2, 3650 M3 to mount in most racks
  • Supports various upright shapes such as "C", "Z", and "?" shapes
  • This slide rail kit replaces the IBM supplied slide rails
  • This kit also supports shallow racks without cable management

Alternate Mounting

Rack Solutions Promise
Product Name SKU Price Qty
IBM X3550 M2, X3650 M2, x3650 M3 Rails 1URAIL-IBM-3X50
CA$139.99
Description

Details

The RackSolutions IBM Slide rails are compatible with almost any 4 post server rack. These rails are designed to work with the IBM xSeries 3550 M2,IBM xSeries 3550 M3,IBM xSeries 3650 M2 and IBM xSeries 3650 M3 and 3650 M4 servers.
Additional Information

Additional Information

Compatibility IBM xSeries 3550 M2
IBM xSeries 3550 M3
IBM xSeries 3650 M2
IBM xSeries 3650 M3
IBM xSeries 3650 M4
Rail OEM IBM
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Includes screws, cage-nuts, and nuts for all standard rack types
Cable Management Optional Cable Management Arm
Rail Type Sliding - High quality ball bearing type
Mounting Depth Range 18" - 31.5" (457 - 800 mm)
Please contact RackSolutions for solutions outside the listed depth range
Tech Notes Standard "L" shaped uprights or non-standard "C", "Z" and "?" shapes
Front flange to door 1.50" (38 mm) minimum
Rear flange to door 4.25" (108 mm) max with cable management
4 Post 19" Rack (Server Racks, Equipment Racks, Cabinet Racks and Open Frame Racks)
2 Post 19" Relay Racks, 2 Post Racks, Telco Racks
Center Mount (2POST-2UKIT) or Flush Mount (4UKIT-003)
Rack Depth 2" - 5", 2" - 8.5" with -EXT kit
Rack Units 1U
Rack Type 2 Post , 4 Post
Amazon ASIN B00UVKDJ2K
RoHS Compliant Yes
Hole Type 4 Post
Compatible with industry standard 3/8" square hole racks.
Compatible with all standard round (non-threaded) holes.
Compatible with all standard threads including 10-32, and 12-24.
2 Post
Compatible with all standard threads including 10-32, 12-24 and metric M6
TAA Compliant Yes
