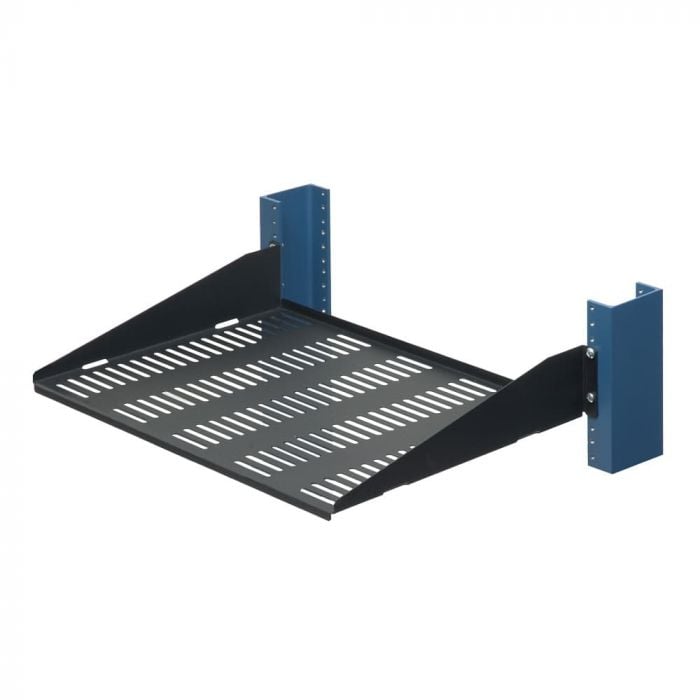

2U 2Post Cantilever Rack Shelf 13in Depth
As low as $59.99
Great for Mounting IT & Networking Equipment
- Solid and vented options available
- Choose from equipment stops (flanges) facing up or down
- Slots for equipment straps along the side of the shelf
- Can be mounted upside down
Compatible With 2 Post and 4 Post Racks
- Weight Capacity: 60 lbs (27.2 kgs)
- Shelf Depth: 13" (330.2 mm)
- Compatible with round, threaded, or square rack holes
Want something more versatile? Check out our configurable (opens in a new tab) version.
See "Additional Information" for Technical Specifications.
2U Cantilever 2 Post Rack Shelf Features
|Country of Manufacture||United States|
|Dell Part Number||2USHL-022HALF-13US - A0539432
2USHL-022HALF-13UV - A0754708
2USHL-022HALF-13DV - A0445191
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||2USHL-022HALF-13US - 6356022 2USHL-022HALF-13DS - 6223599 2USHL-022HALF-13UV - 4614649 2USHL-022HALF-13DV - 4614779|
|Ingram Part Number||2USHL-022HALF-13US - E93440 2USHL-022HALF-13DS - E93442 2USHL-022HALF-13UV - E93439 2USHL-022HALF-13DV - E93441|
|Assembly Notes||Phillips head screwdriver required|
|Equipment Depth||The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load-bearing capacity of the rack mount shelf or used to prevent equipment movement.|
|Shelf Type||Solid , Vented|
|Rack Type||2 Post|
|Shelf Surface Area||Flanges Up: 19.89" x 17.5" (505 x 445 mm) Flanges Down: 20" x 17.5" (508 x 445 mm)|
|Finish||Black textured powder coat|
|Mounting Depth Range||These relay rack shelves are cantilever mounted and will install into any relay rack, as well as any 4Post server rack|
|Included Hardware||10-32 & 12-24 pan head screws|
|Overall Installation Depth||13" (330 mm)|
|Material||16 GA Steel|
|Amazon ASIN||2USHL-022HALF-13UV = B00UVK9YC4 2USHL-022HALF-13DV = B016ZSDM82 2USHL-022HALF-13US = B0006I5GYQ 2USHL-022HALF-13DS = B0006I5H0E|
|Tech Notes||These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
