5U HyperShelf for 8 Dell Precision 3260 Compact Workstation
Designed for Dell Precision 3260
- Rack mount 8 Dell Precision 3260 per 5 rack units of space
- Increase scalability and decrease deployment times
- No power button or peripheral port interference
- 26” - 29.50” mounting depth range
Maximize Space and Performance
- Fully articulated cable management arm for in-rack serviceability
- Built-in cable management for tie points and cable pathways
- Designated tie down points for power adapters
- High-quality ball bearing slide rails with high capacity and full extension
- Integrated 120mm exhaust fan for increased airflow and cooling efficiency
HyperShelves are equipped with a standard 6ft Fan Cable with a NEMA 1-15P Plug to a Fan Terminal Receptacle. A 6ft Fan Cable with a IEC C14 plug to a Fan Terminal Receptacle (SKU:100-9043) can be purchased separately from RackSolutions. An adapter may be required to accommodate different plug types. RackSolutions does not provide adapters for the HyperShelf.
RackSolutions HyperShelf for Dell Precision 3260 is designed for enterprise deployments and data center environments. You can rack mount up to 8 Dell Precision PCs in a 5U sliding enclosure. This rack mount shelf is built to optimize airflow and space so that your Dell PCs will last and perform.
The HyperShelf provides a lower installation cost per computing device and does not interfere with the power button or peripheral ports. A removable side panel is included for easy cable access and exhaust containment. You will be able to increase operational efficiency with limited space while decreasing deployment times.

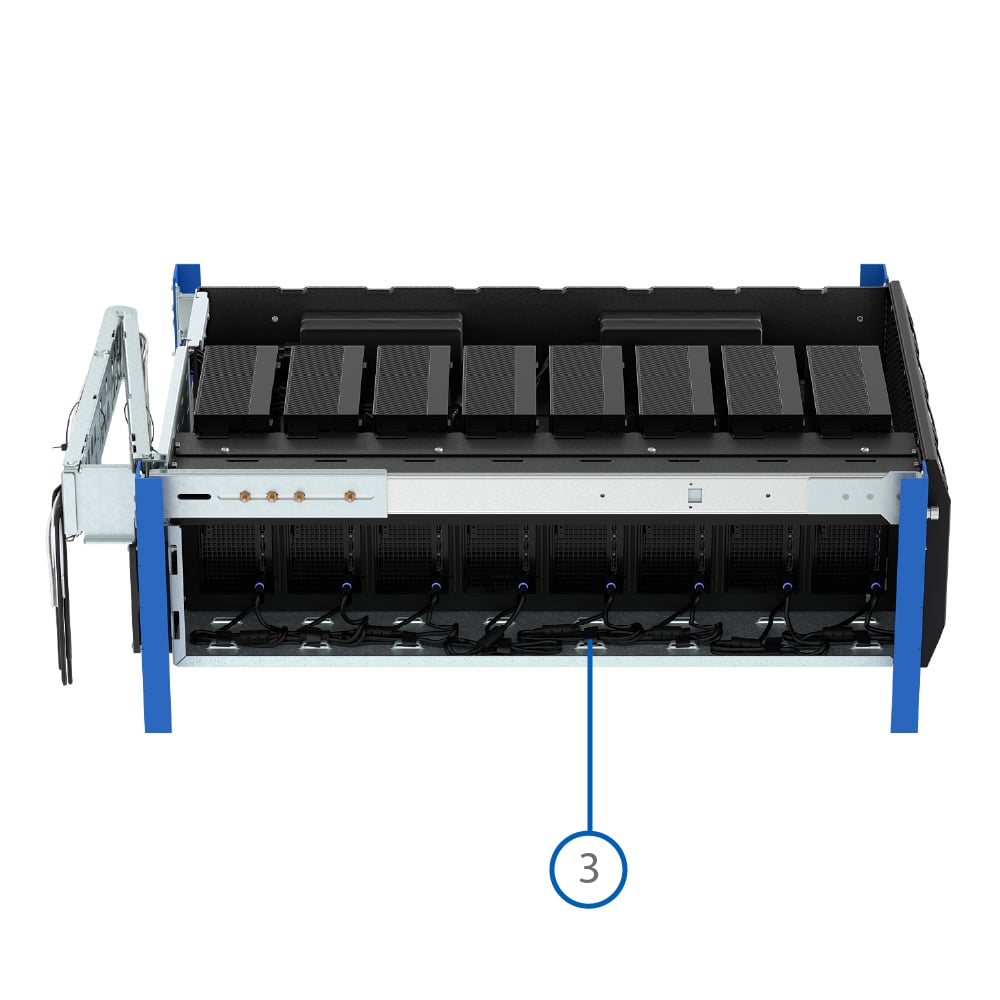

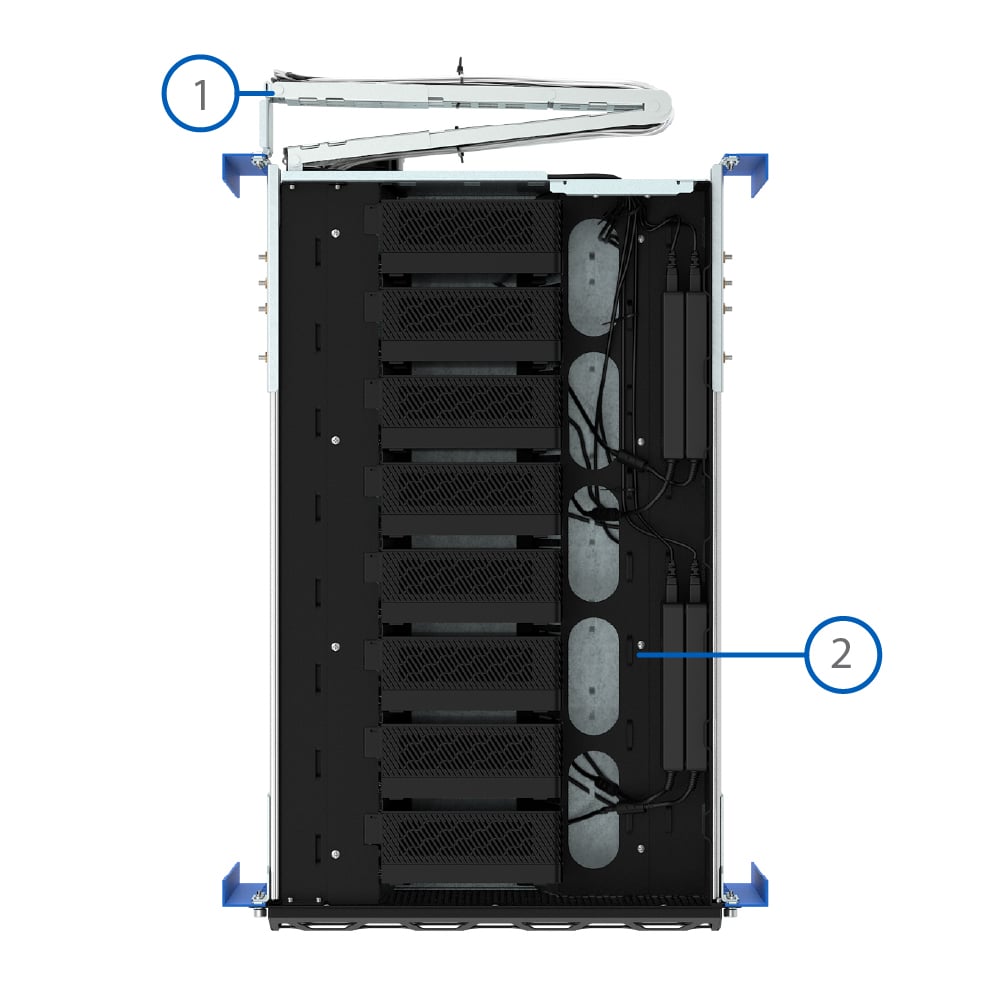

The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your Precision 3260 workstations in and out of the rack. The Precision 3260 shelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.
The Precision 3260 HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

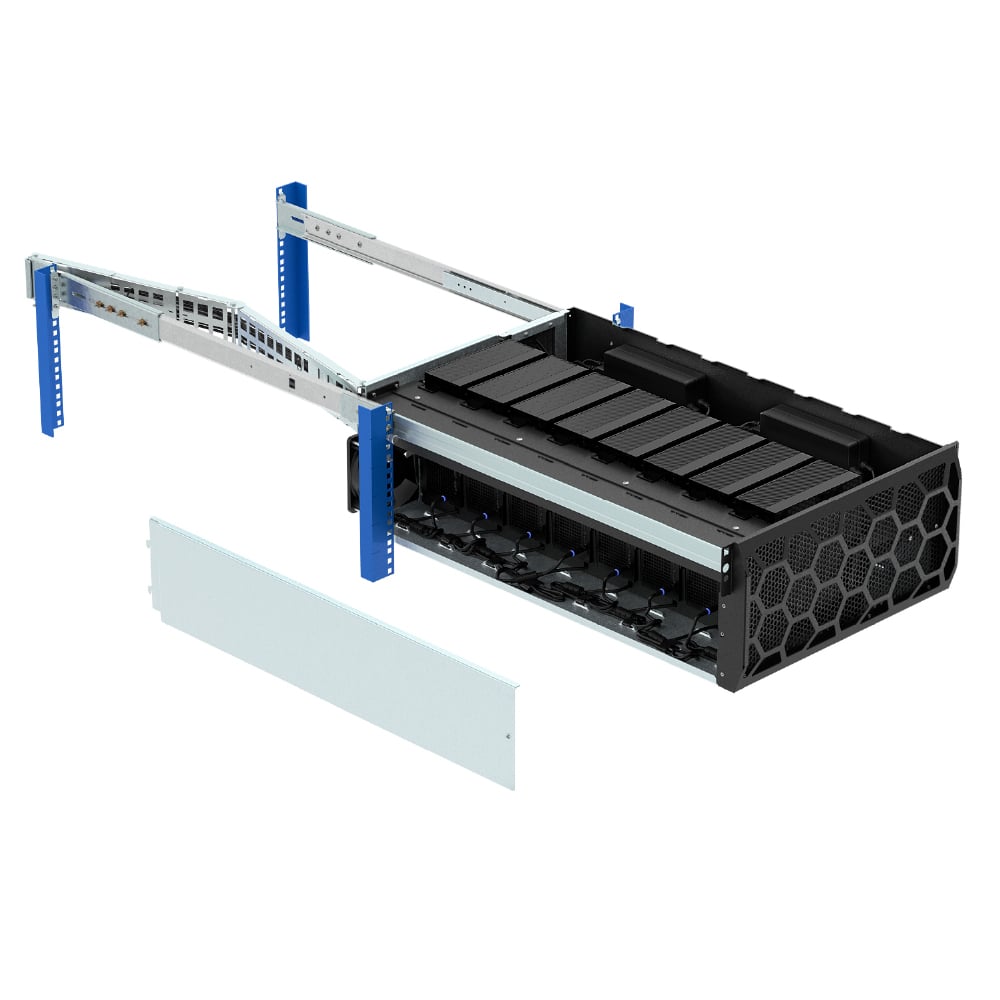

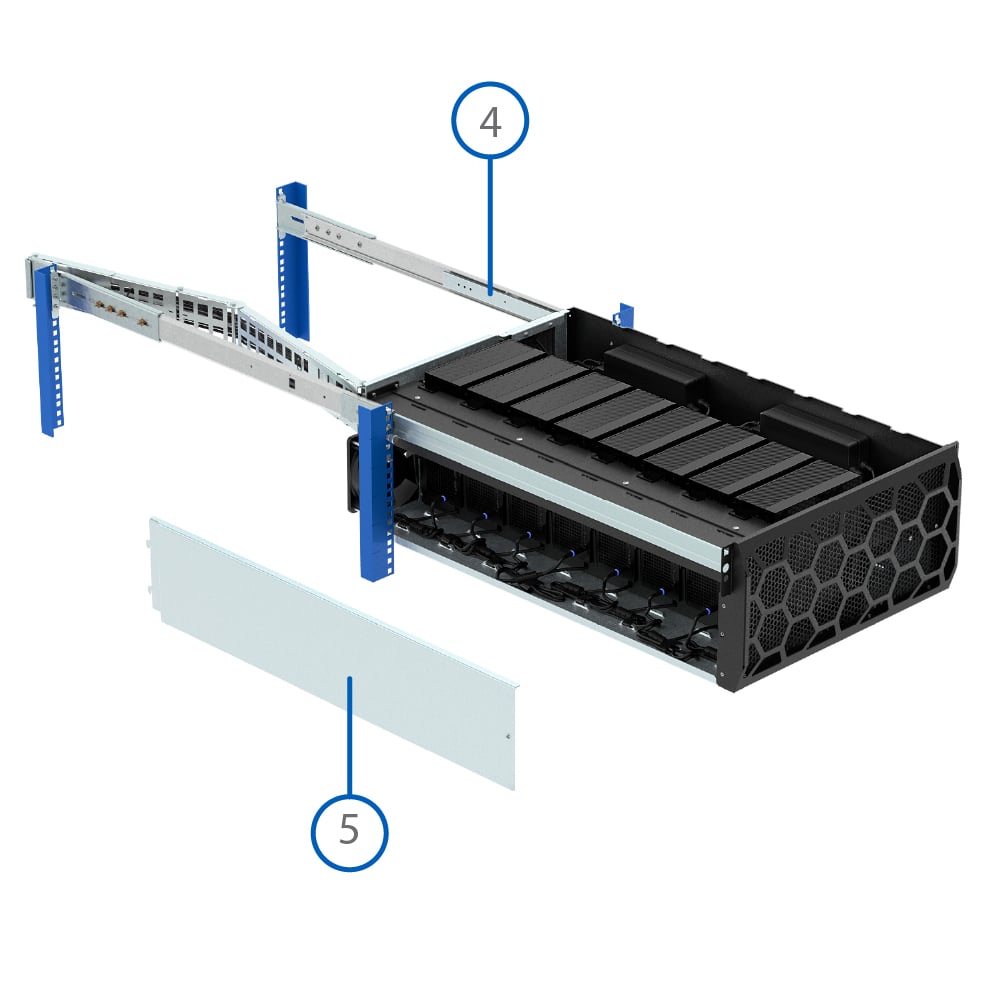

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.

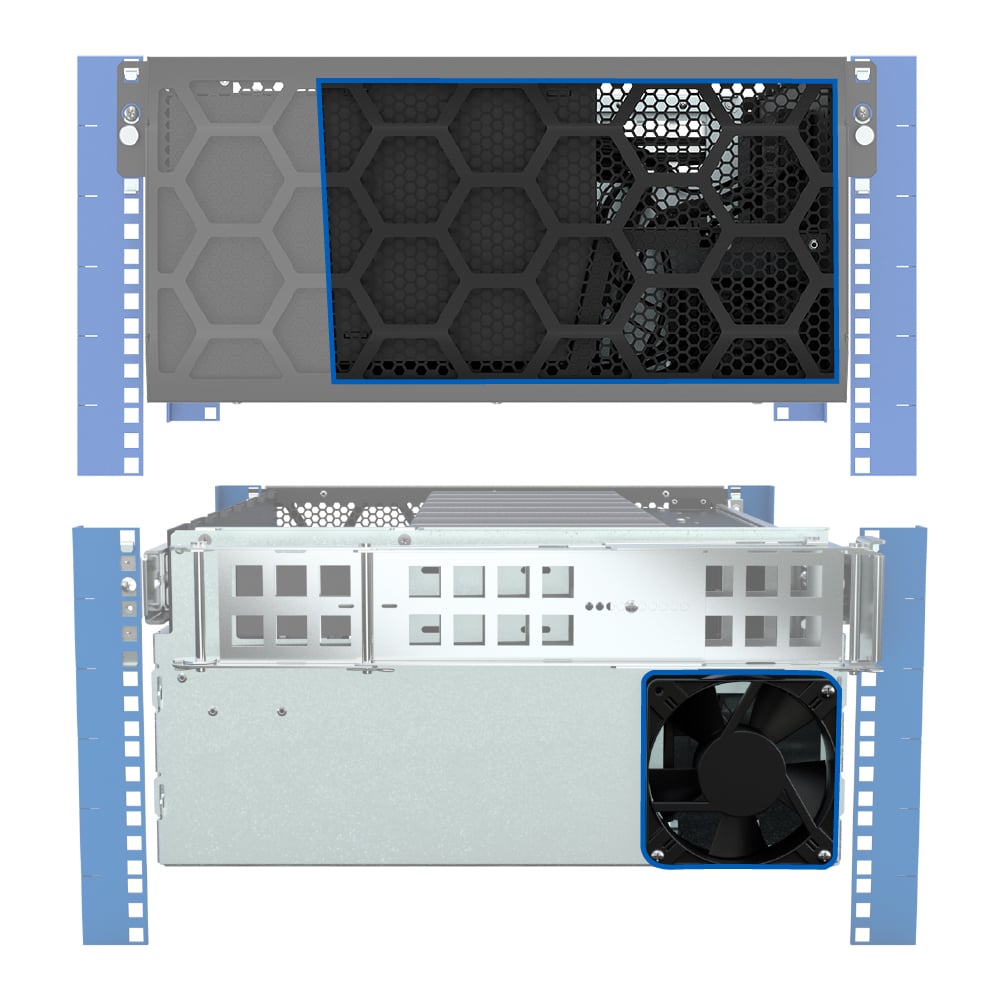

For optimal cooling and thermal efficiency, the Precision 3260 HyperShelf features integrated airflow for your PCs. To prevent the air from mixing, the intake and exhaust separates the hot and cold air. The airflow management separates the hot and cold air, so you can be confident that your devices will not overheat.
The rack mount shelf features removable side panels that allow for accessing power buttons, peripheral ports, or power supplies.

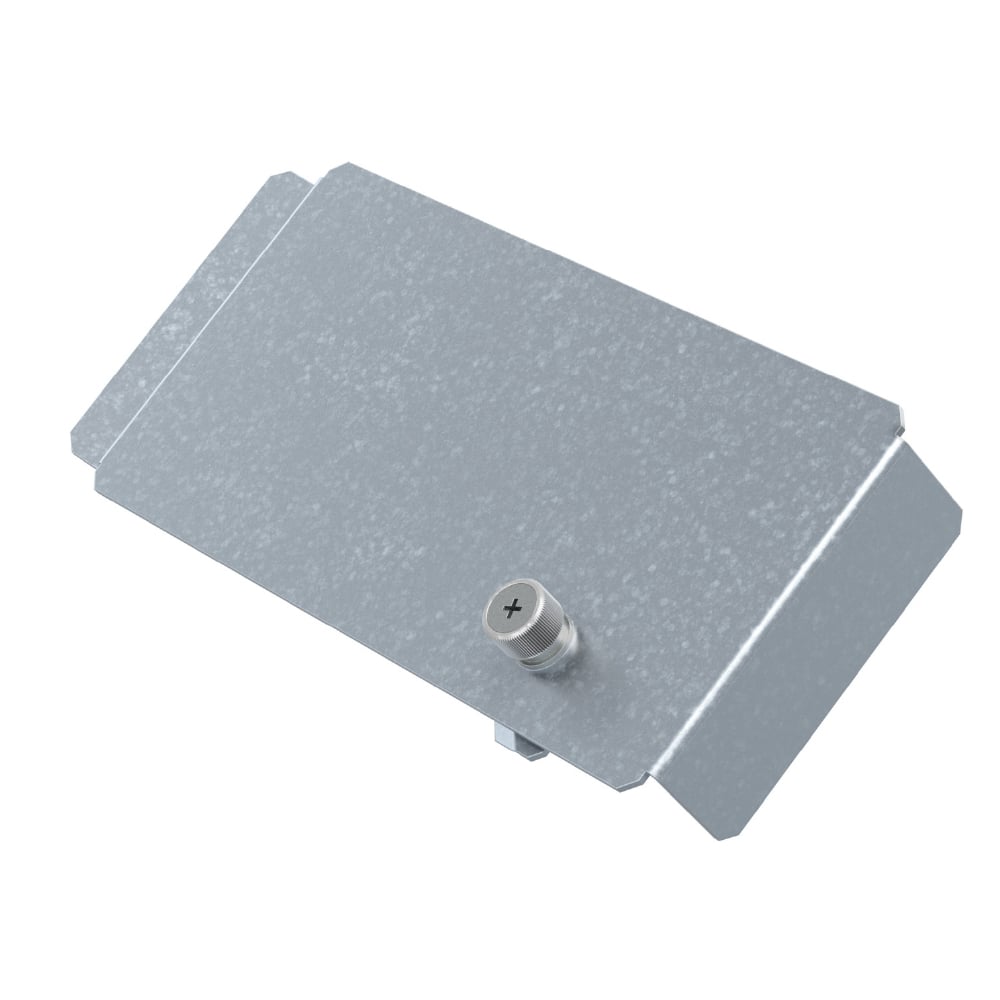

Similar to server rack blanking panels, the Precision 3260 Blanking Plate allows IT professionals to control the airflow in their hypershelf, rather than the entire server rack enclosure. Our blanking plate improves the efficiency of integrated airflow ducting within the shelf. The blanking plate prevents the hot and cold air from mixing, where only the hot air is passively exhausted from the shelf.
| Made In America | Yes |
|---|---|
| BABA Compliant | Yes |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Included Hardware | 115-8765
|
| Compatibility | Dell |
| Dell Part Number | AC200198 |
| Ingram Part Number | 115-8765 - 06UU57 |
| Fixed/Sliding | Sliding |
| Finish | Galvanized Steel |
| Hole Type | Square |
| Material | 16 GA Steel |
| Shelf Depth | 25"-30" (635mm-762mm) |
