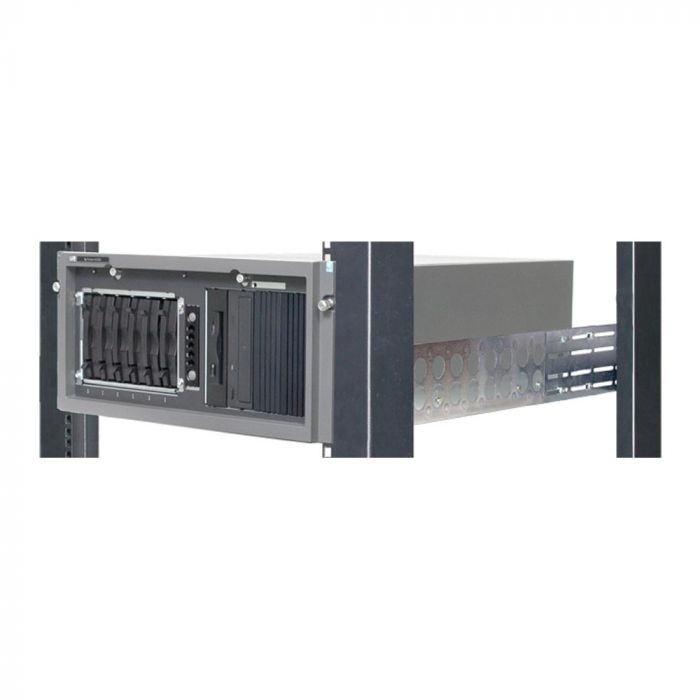

HP ML350 G6 - Rackmount Rail Guide
HP Standard 3U-7U Universal Rail Kit
Tool-free support for racks with square or round
mounting holes: 24"-36"
2Post center mount
- Use the HP Standard 3U-7U Universal Rail Kit
- Convert 5U of 2Post rack to 4Post using 2POST-5UKIT
- Compatible with upright depths from 3 - 9"
2Post flush mount
- Use the HP Standard 3U-7U Universal Rail Kit
- Convert 4U of 2Post rack to 4Post using 4UKIT-003
- Compatible with upright depths from 3 - 9"
4Post racks
- Use the HP Standard 3U-7U Universal Rail Kit
- Minimum Rack Depth: 23-3/4"
- Maximum Rack Depth: 35"
- Hole Type: Square, Round
- Thread Type: 10-32, 12-24, Metric M5, or unthreaded
- If you don't have the HP Rails, RackSolutions' Universal Rails 3UKIT-109 is an option. Tool-less, Universal Rails 3UKIT-109-QR is a great option for square hole racks
Rack Issues, Problems
- Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
