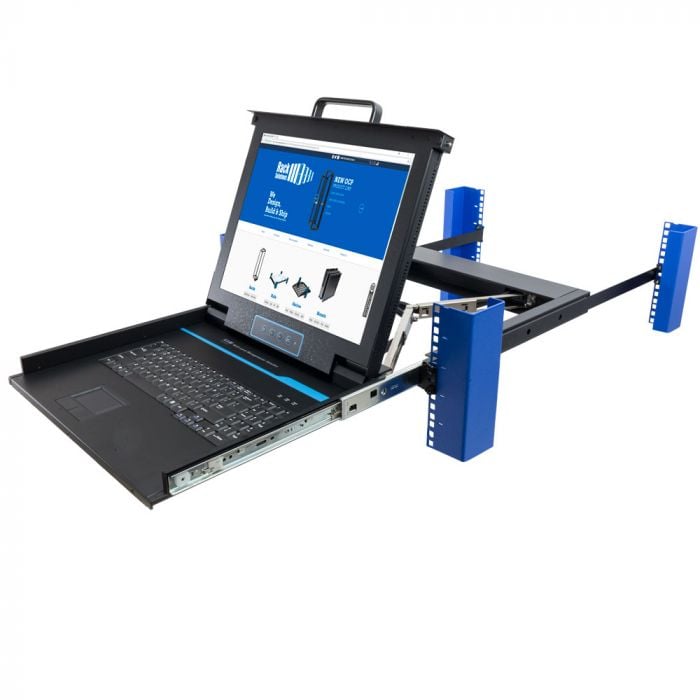

1U KVM 1 Port Console with 17" Monitor

$1,074.99
In stock
SKU
185-5286

Manage server systems within a rack

  • 1 port KVM switch controls a single system (15 pin VGA)
  • Built-in cable management arm
  • Console auto sleeps when closed
  • Compatible with standard EIA 19" racks
  • Slides in and out on high quality ball bearing slides
  • Easily folds away into 1U when not in use

All-in-One keyboard, mouse, and monitor

  • 17" TFT LED Monitor
  • Supports resolution up to 1280 x 1024
  • 75 Hz refresh rate
  • 106-key US standard keyboard
  • Integrated easy to use touchpad

RackSolutions 1U KVM 1 Port Console is perfect for controlling a single system within a server rack using a 15 pin VGA port or a large system with the addition of a KVM switch. The entire console integrates a 17" LED monitor, a 106-key keyboard, and touchpad within a single rack unit. The KVM console easily slides in and out of the rack on high quality ball bearing slide rails and locks in place when opened or closed. The integrated cable management feature keeps the sleeved cables from getting tangled. When the console is closed, it is set to auto-sleep to save power as well as increase the life of the product and easily folds away into 1U when not in use.

More Information
Mounting Depth Range 18.3 - 33.4" (465 - 850 mm)
Rack Type 4 Post Rack
Tech Notes Product dimension (W × D × H) 17.64" x 18.54" x 1.67"
Power Input-100V-240V
Cable Management Cable management arm included
Included Hardware Packaging Contents:
User Manual 1pc
Power cord 1 pc
Rack mount kit 2 pcs
KVM Signal Cable: KVM Port 15 pin HDB male
Server or PC Port: 15 pin VGA Port
Rail Type Ball-bearing slide
Fixed/Sliding Sliding
Monitor Specs 1280 x 1024 @ 75 Hz
Keyboard Specs 106-Key US Standard Keyboard
Amazon ASIN B01MQE6GSG
RoHS Compliant Yes
TAA Compliant No
