| Product Name | P/N: | Availability | Price | Qty |
|---|---|---|---|---|

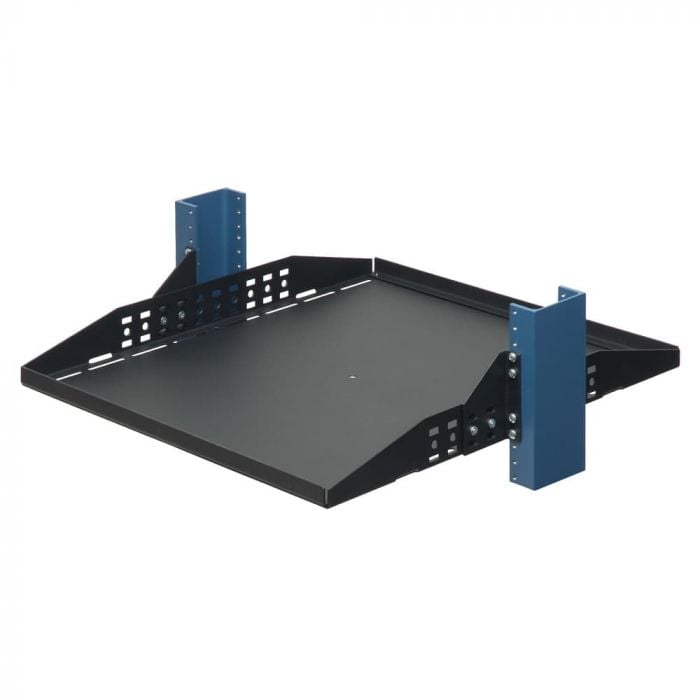

| Configurable Relay Rack Shelf - 20" Solid | 2USHL-020FULL-20S |
In Stock
|
CDN$ 85.00
|
|

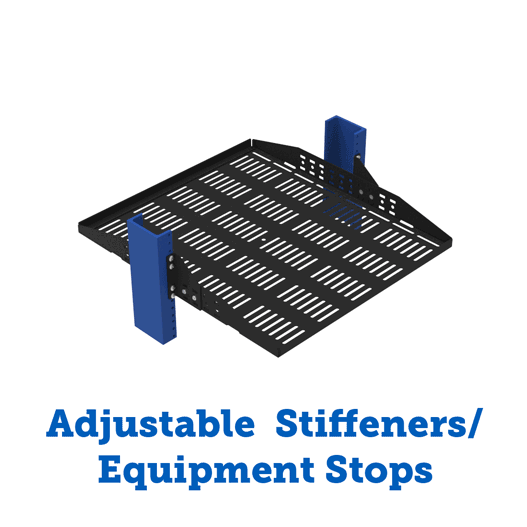

| Configurable Relay Rack Shelf - 20" Vented | 2USHL-020FULL-20V |
In Stock
|
CDN$ 74.99
|
Features
The relay rack shelf is compatible with any 19" EIA standard relay rack. The relay rack shelf has a 150 lb (68 kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 20" deep can be supported on a relay rack shelf. Transport and seismic options are available for a relay rack shelf if the installation requires.
Configurable Relay Rack Shelf - 20" - Technical Specifications
| Rack Type | EIA 19" standard relay rack |
| Rack Type | 2Post |
| Weight Capacity | 150 lbs (68 kgs) |
| Equipment Depth | The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement. |
| Mounting Depth Range | These relay rack shelves are cantilever mounted and will install into any relay rack as well as any 4Post server rack |
| Overall Installation Depth | 20" (508 mm) |

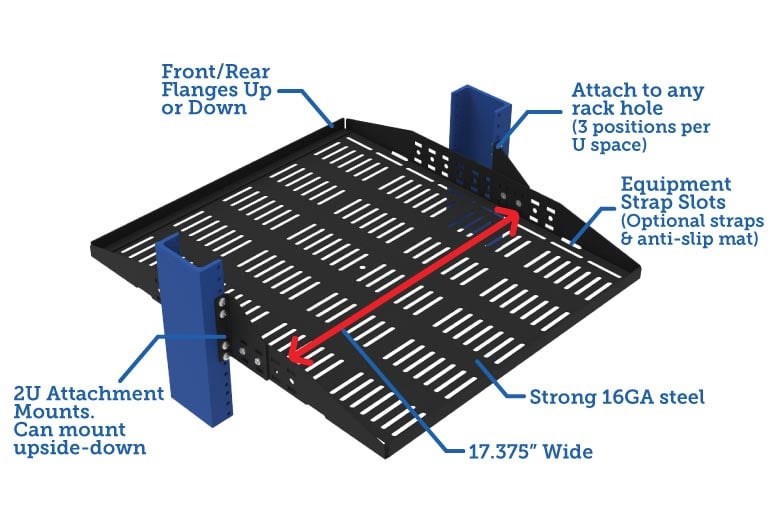

| Shelf Surface Area | 20" x 17.375" (508 mm x 441 mm) |
| Shelf Type | Vented or Solid |
| Finish | Black, textured powder coat |
| Included Hardware | 10-32 & 12-24 pan head screws |
| Hole Type | 10-32 or 12-24 threaded holes Square hole relay racks will require cage nuts |
| Assembly Notes | Phillips head screwdriver required |
| Tech Notes | The relay rack shelf can be installed in a 4Post server rack Shelf depth is measured from front to rear excluding flanges |
