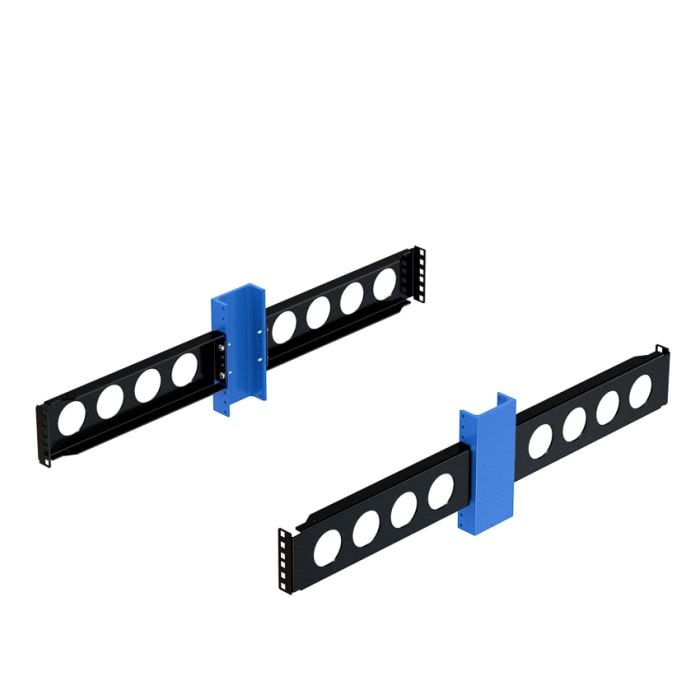

1U-7U Conversion Bracket 4-Pack

As low as $184.99
In stock

Mount 4Post equipment in 2Post racks

  • Creates a 4Post rack in a 2Post rack
  • Only convert the space you need
  • 1U, 2U, 3U, 4U, 5U and 7U size brackets available
  • Compatible with many Dell, HP, IBM, other equipment
  • Preferred 2Post mount by OEM manufacturers
  • Weight capacity: 50 lbs per rack unit
  • Hardware Included
  • What are converters used for? (opens in a new tab)

Compatible with most 2Post Racks

  • Works with standard EIA 19" racks or 23" telecommunications racks
  • Compatible with 3" and 6" uprights
  • Quick and simple installation

Note: The server chassis + rail kit width can not exceed 17.72" to be compatible.

In order to ensure that your equipment will mount properly using the 2Post Conversion Brackets, you must measure the width of your device's chassis (with the mounting rails installed) to see if the overall width exceeds 17.72". If it does, the Conversion Brackets may not work with your equipment. See illustration above for an example of how to measure the overall width.

The RackSolutions 2 Post, Center Mount Conversion, 1U-7U server rack mounting kits allow users to create both 4 post cabinets on a 2 post rack, or mount 4 post equipment on 2 post racks. For 4 post cabinets on a 2 post rack, the equipment is designed for quick and easy assembly and installation. It is also easy to customize the setup for server rack cabinets, allowing users to convert only the space they need, instead of engaging in a larger project than necessary. When the assembly is configured to handle 4 post equipment on 2 post racks, it is compatible with 3" uprights and Dell, HP, IBM and other major server types. This setup is preferred by most leading OEM manufacturers. The 2 Post, Center Mount Conversion includes a number of features to help users easily create a server rack solution that meets their specific needs. At its simplest, the assembly can be set up to support a single, rackmount server, allowing the user to customize the rack's location to match where the server needs to go. However, solid steel conversion brackets equipped with coupling capabilities let users combine the brackets to support multiple rackmount servers or create an entire server cabinet.

2 Post Converter max width (desktop image)2 Post Converter max width (mobile image)

Compatible with Most Servers

The server chassis when attached to the rail kit can not exceed 17.72" to be compatible.

1U Conversion Kit Upward Bend (desktop image)1U Conversion Kit Upward Bend (mobile image)

Upward Bend in 1U Conversion Kit Only

Notice in the 1U conversion kit that there is an upward bend to increase the load strength of the bracket.

Combine Multiple Conversion Kits (desktop image)Combine Multiple Conversion Kits (mobile image)

Combine Multiple Conversion Kits

Hardware is included to couple conversion brackets together, if using multiple sizes in the same rack.

RackSolutions conversion brackets avaliable 1U-7U (desktop image)RackSolutions conversion brackets avaliable 1U-7U (mobile image)

Multiple Size Options

Chose the amount of U space that needs to be converted to 4 post mounting by picking between the 1U-7U size options.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 101-6883
  • Kit Contents:
    • (2) Left 1U Conversion Brackets (13" Long)
    • (2) Right 1U Conversion Brackets (13" Long)
  • Rack Hardware Kit:
    • (9) 10-32 Phillips Head Screws
    • (9) 12-24 Phillips Head Screws
    • (9) M6 Phillips Head Screws
  • Bracket Hardware Kit:
    • (13) 12-24 Phillips Head Screws
    • (13) 12-24 Cage Nut


2POST-2UKIT | 2POST-3UKIT | 2POST-4UKIT | 2POST-5UKIT | 2POST-7UKIT
  • Kit Contents:
    • (2) Left Conversion Brackets
    • (2) Right Conversion Brackets
  • Bracket to Rack Hardware Kit:
    • (16) 12-24 Slotted Hex Bolts
  • Equipment Install Hardware Kit:
    • (10) M6x0.1mm Pan Head Screws
    • (12) M6x0.1mm Cage Nut
Dell Part Number 101-6883 - AB540940
2POST-2UKIT - A0421207
2POST-4UKIT - A0532626
2POST-5UKIT - A0558741
2POST-7UKIT - A8094108
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 2POST-2UKIT - 4614576
2POST-3UKIT - 4614577
2POST-4UKIT - 4614578
2POST-5UKIT - 4614579
2POST-7UKIT - 4614580
Ingram Part Number 101-6883 - 7BB560
2POST-2UKIT - 870984
2POST-3UKIT - 870939
2POST-4UKIT - 870957
2POST-5UKIT - 870975
2POST-7UKIT - 870976
Finish Black, powder coated
