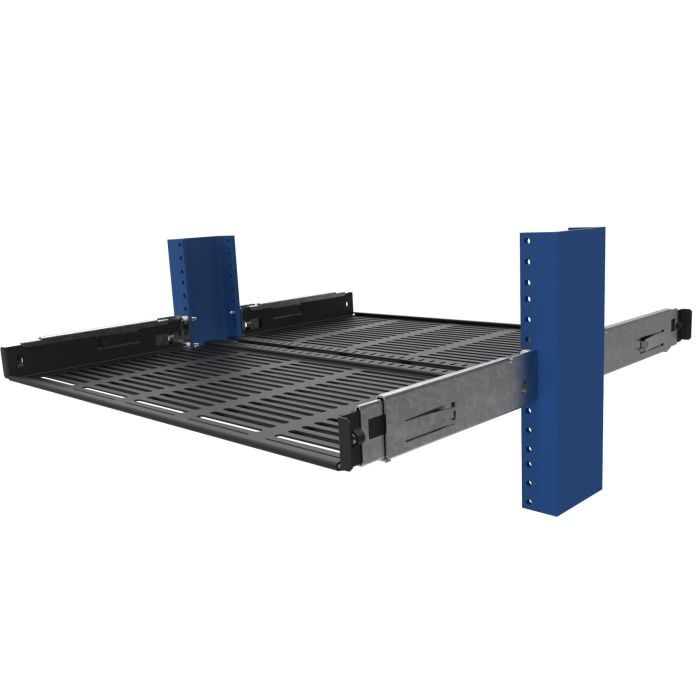

Dual 2 Post Rack Sliding Shelf

In stock

Supports Shallow Equipment on Sliding Half Shelves

  • Ideal for small IT equipment such as laptops
  • Fits 3" 2Post rack side channels
  • Only takes up 1U of space

Fits Any 2 Post Rack

  • Weight Capacity: 40lbs (18kgs)
  • Shelf Depth: 8.76" (222.5mm)
  • Compatible with 3" uprights
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions Dual 2-Post Rack Sliding Shelf is 19" EIA standard 2Post rack. Designed for light weight products such as laptops in 2 post racks, our RackSolutions Dual 2-Post Rack Sliding Shelf has a 40 lbs (18kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 8.76" (222.5mm) deep can be supported on this 2Post rack shelf and slides out of the rack for easier servicing. This shelf is only compatible with 3" 2 post uprights and the weight capacity is 20 lbs per each half sliding shelf. RackSolutions unique design of this product is unlike any others, as you are able to utilize small IT equipment on double sliding half shelves while only taking up 1U of your rack space.

Double Sliding ShelvesDouble Sliding Shelves

Double Sliding Shelves

Conveniently access your equipment utilizing the double feature of both sliding shelves.
2 post rack sliding shelf vertical 2 post rack sliding shelf vertical

Easy Equipment Access

Both half shelves extend out to 15" with 8.7" shelf depth
More Information
Assembly Notes Phillips head screwdriver required
Equipment Depth Supports equipment up to 8.76" (222.5mm)
Shelf Type Vented
Rack Type 2 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.9" x 10.3" (429.26 mm x 261.6 mm)
Finish Black textured powder coat
Mounting Depth Range 8.5" - 15" (216mm - 381mm)
Included Hardware 10-32 & 12-24 pan head screws
Weight Capacity 20lbs (9kgs) per shelf side
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth Each shelf slides out to a total shelf extension of 15.1" (383.54mm)
Hole Type Compatible with round, threaded, or square rack holes
Material Shelf - 16 GA Mid Rails -18 GA
Synnex SKU 5911691
TAA Compliant Yes
RoHS Compliant Yes
