5U HyperShelf for 8 Dell Pro Max Micro
Rack mount up to 8 Dell Pro Max Micro PCs per shelf
- Increases operational efficiency with limited shelf space
- Integrated airflow ducting for optimal cooling and thermal efficiency
- Supports more Dell Pro Max Micro desktops per rack than alternatives in the industry
- High-quality ball bearing slide rails with high capacity and full extension
- No power button or port interference
- 27” - 29.5” (685.8mm - 749.3mm) mounting depth range
- Compatible with Dell Pro Max Micro and Dell Precision 3280 Compact Workstation
HyperShelf for Dell Pro Max Micro Features
- Rack mount 8 Dell Pro Max Micro desktops per 5 rack units of space
- Extends out of the server rack for in-rack serviceability
- Built-in cable management for integrated tie points/pathways
- Isolated intake and exhaust ports
- Removable side panels for cable access and cleaning
- Optional blanking plate to control airflow in the shelf
Note: This product is recommended for deployment in standard data center environments.
- Without a fan upgrade kit: Maximum ambient temperature is 80°F (27°C).
- With a fan upgrade kit installed: Maximum ambient temperature is 90°F (32°C).

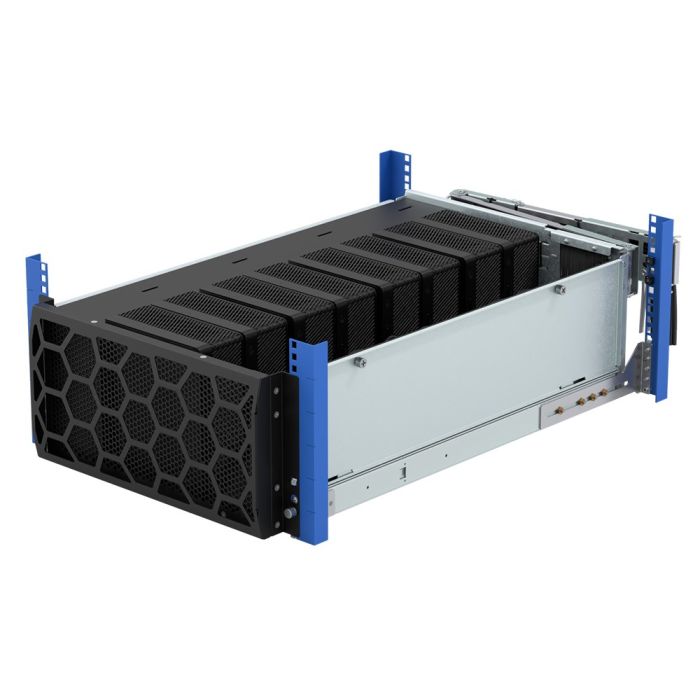

Designed for data center environments and enterprise deployments, the Dell Pro Max Micro HyperShelf allows you to rack mount 8 workstations per 5U of rack space. This rack mount shelf provides a lower installation cost per device that doesn’t interfere with the power button or peripheral ports. We built the Dell Pro Max Micro HyperShelf to perfectly optimize space and airflow to enhance system performance and reliability. By using this rack shelf, you will be able to decrease deployment times and increase scalability.
Industry Applications
The RackSolutions HyperShelf for the Dell Pro Max Micro is built for hyperscale data centers and high-density configurations where efficiency, airflow, and space optimization are critical. Engineered for versatility, it supports a wide range of industries and applications by reducing installation costs per device and improving in-rack serviceability.
- Banks and Financial Institutions - Powers high-density workstation clusters for daily banking operations, share trading, and real-time data analysis.
- Automotive and Aerospace Industries - Supports engineering workloads, including simulation and CAD applications, with efficient cooling and compact rack layouts for GPU-intensive performance.
- Media and Post-Production Teams - Hosts render farms and VFX workstations, enabling high-performance processing while maximizing rack space and organization.
- Remote Office and Edge Deployments - Enables rapid installation, simplified maintenance, and consistent performance across distributed environments. This ensures enterprise-grade reliability beyond the primary data center.
- Data Center Environments - Maximizes rack density and airflow efficiency while ensuring easy maintenance. Its high-density design simplifies installation and cable management, helping data centers operate more efficiently and cost-effectively.

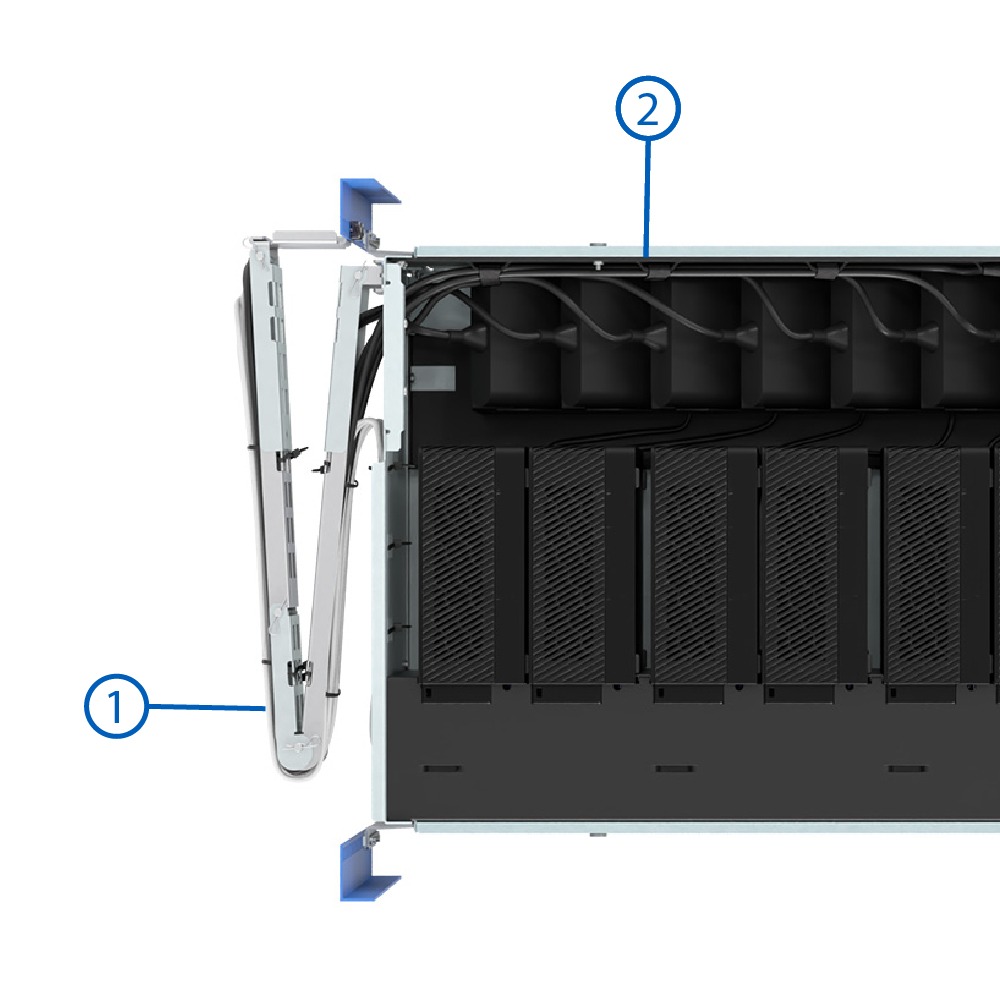

The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your devices in and out of the rack. The Dell Pro Max Micro HyperShelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.

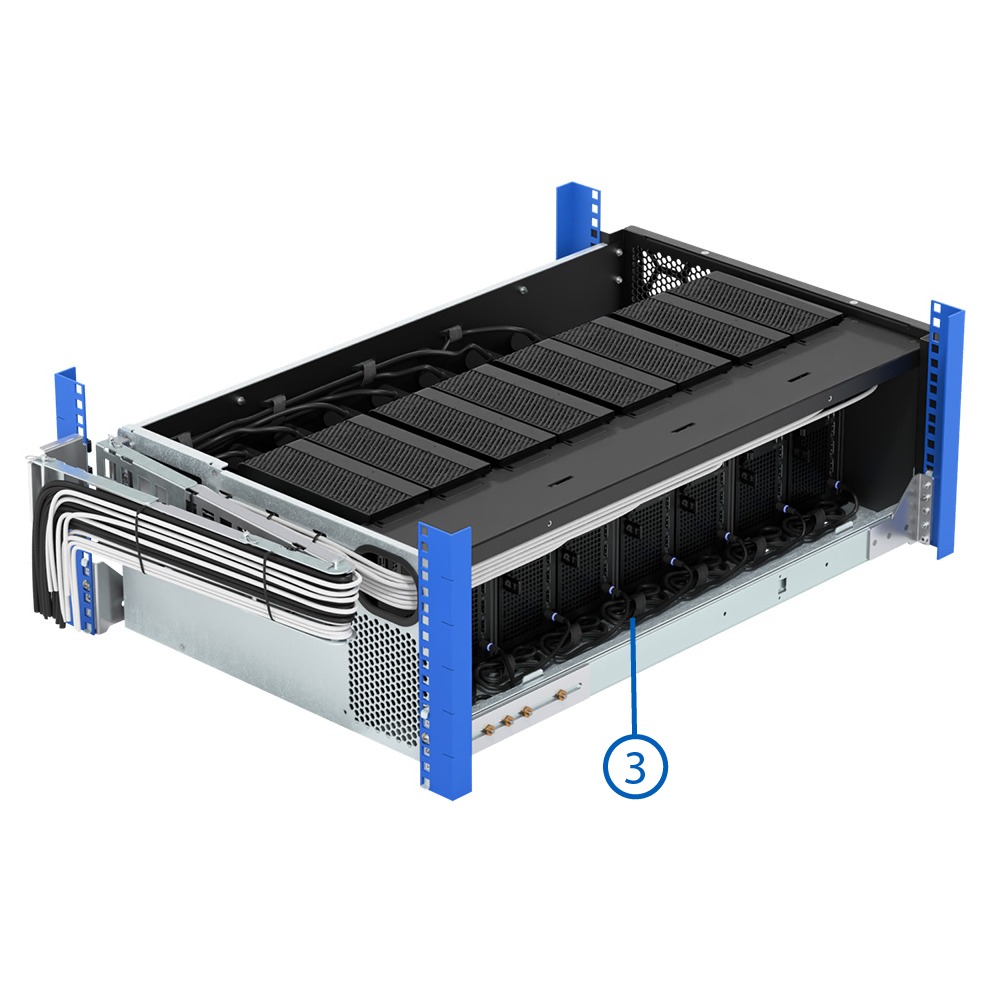

The Dell Pro Max Micro HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

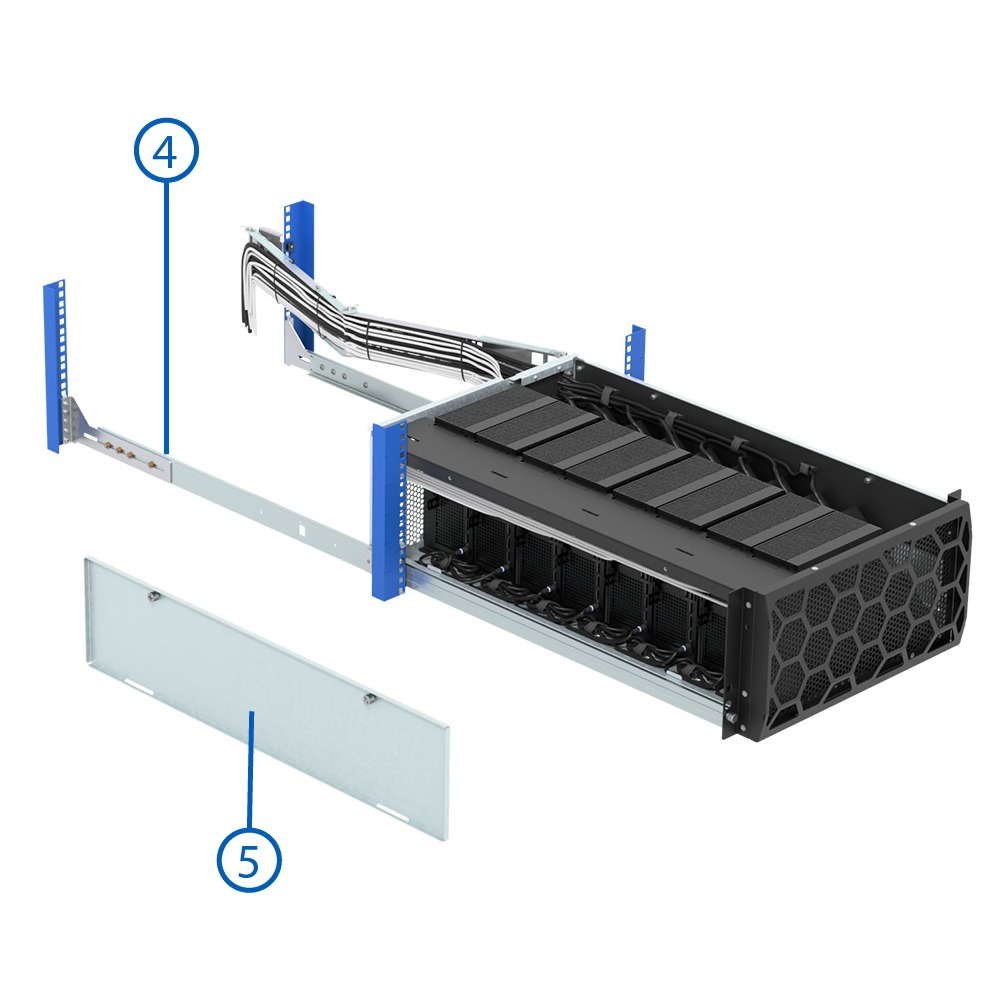

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.

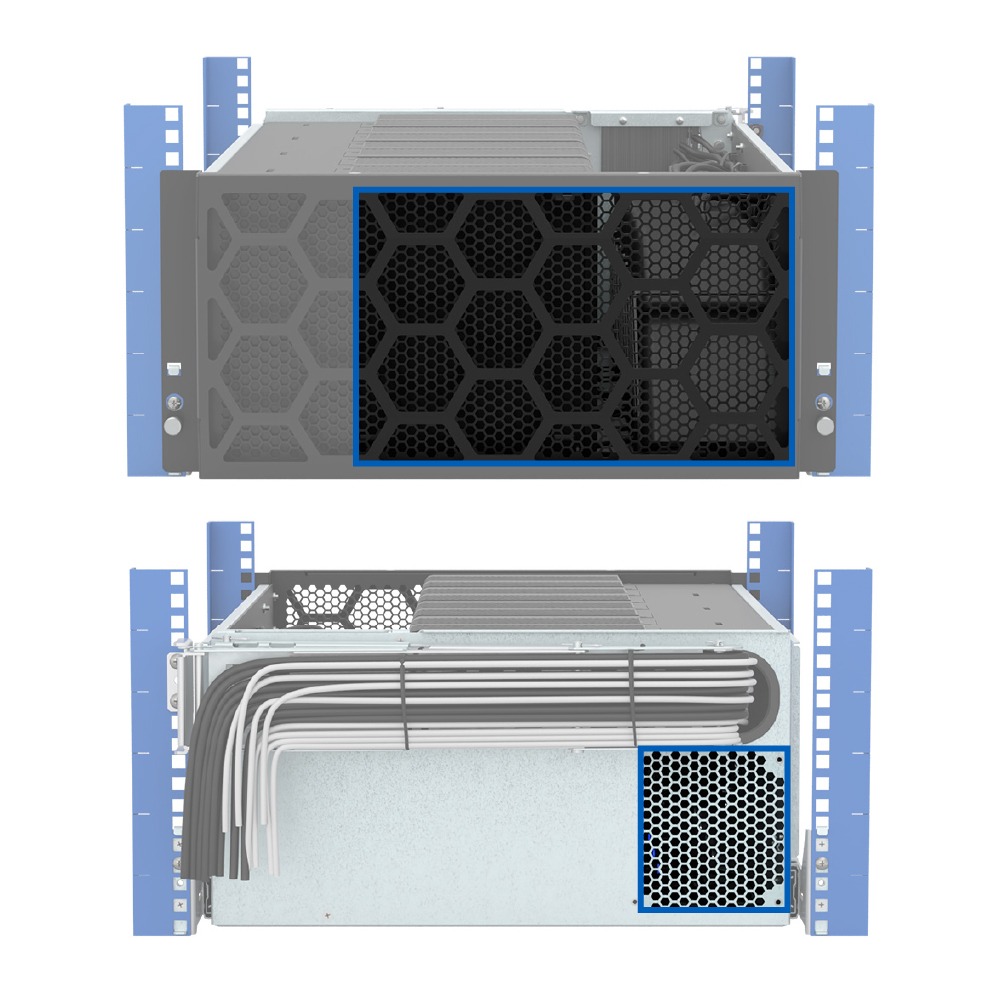

For optimal cooling and thermal efficiency, the Dell HyperShelf features integrated airflow for your workstations. To prevent the air from mixing, the isolated intake and exhaust aisles separate the hot and cold air.

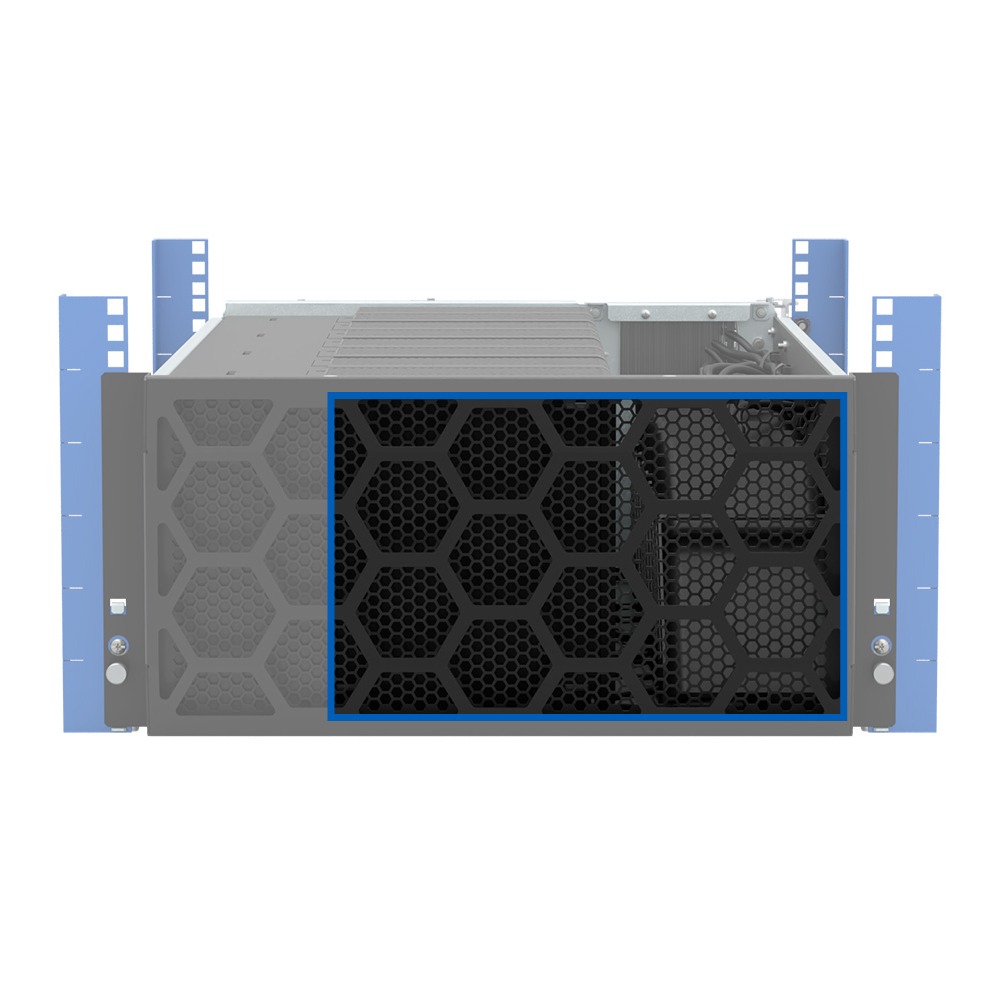

The front airflow management of the rack mount shelf includes mounting holes for optional fans to be installed. The airflow management separates the hot and cold air, so you can be confident that your devices will not overheat.

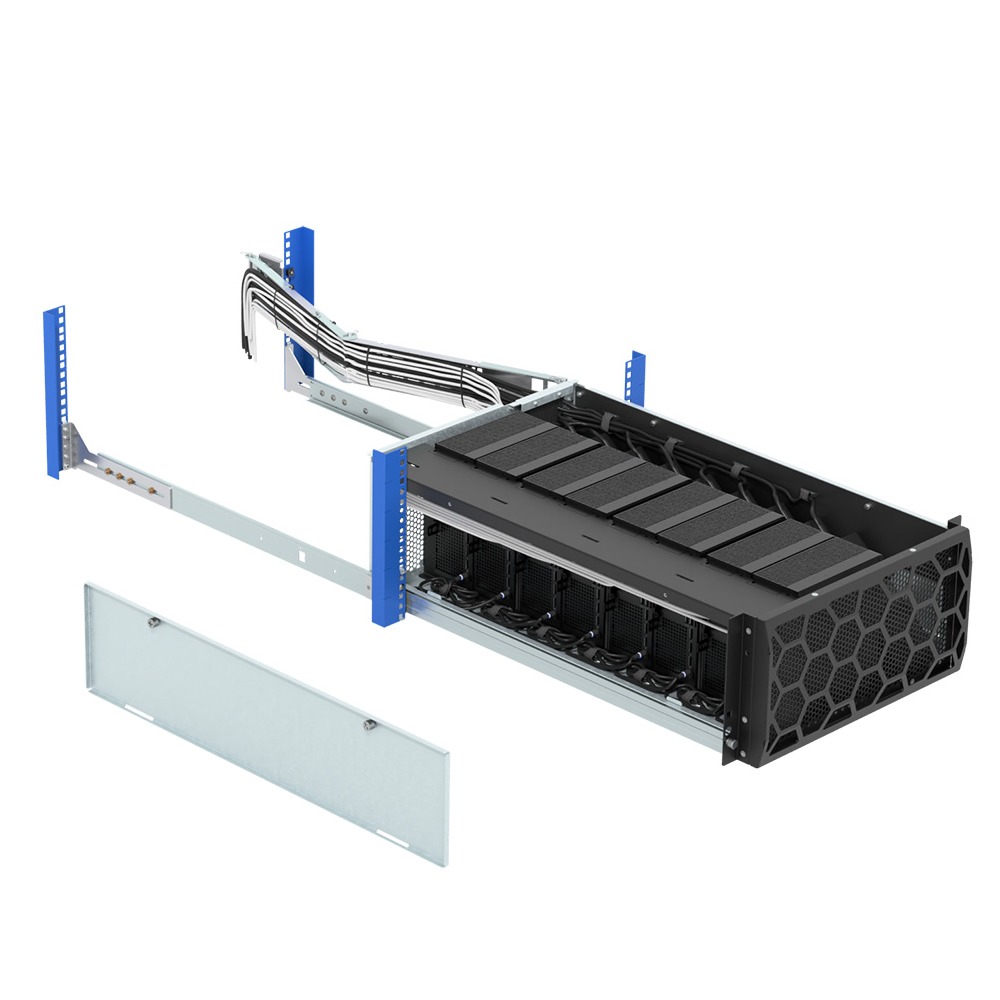

The rack mount shelf features removable side panels that allow for accessing power buttons, peripheral ports, or power supplies.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 47.550000 | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Pro | Form Factor | Compact | U Height | 4U - 9U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Sliding | Finish | Galvanized, Clear Zinc, and Black Powder Coat | Material | Galvanized Steel and Cold-Rolled Steel |
|---|
Data Sheet
5U HyperShelf for 8 Dell Pro Max Micro (115-9037)
Open PDF
Cable Guide
5U HyperShelf for 8 Dell Pro Max Micro (115-9037)
Open PDF
Installation Instructions
5U HyperShelf for 8 Dell Pro Max Micro (115-9037)
Open PDF
Dimensional Drawings
5U HyperShelf for 8 Dell Pro Max Micro (115-9037)
Open PDF
Kit Contents:
- (1) Hypershelf
- (1) Cable Management Arm Kit
- (1) Rail Kit
- (1) Fan Hardware Kit
Fan Hardware (1x):
- (1) Fan Power Cord
- (2) 50" Velcro Wrap
Cable Management Arm Kit:
- (1) Cable Management Arm Assembly
- (1) 50" Velcro Wrap
- (6) 11" Cable Tie
- (8) 8-32 x .500 Truss Head Screw
- (2) 10-32 x .500 Pan Head Screw
- (2) 10-32 Cage Nut
Rail Kit:
- (1) Rail Assembly Pair
- (4) 8-32 x .250 Truss Head Screw
Kit Contents:
- (1) Pro Max Micro Blanking Plate
Kit Contents:
- (1) 120 mm Fan
- (1) Fan Grill
- (1) Fan Cover
- (1) NEMA 1-15P 72" Fan Cable
- (1) Fan Hardware Pack
Fan Hardware Pack:
- (4) #8-32 x 2" Pan Head Screw
- (4) #8-32 Keps Nut
- (4) #8-32 Nylock Nut
Kit Contents:
- (1) 120 mm Fan
- (1) Fan Grill
- (1) Fan Cover
- (1) IEC C14 72" Fan Cable
- (1) Fan Hardware Pack
Fan Hardware Pack:
- (4) #8-32 x 2" Pan Head Screw
- (4) #8-32 Keps Nut
- (4) #8-32 Nylock Nut
- Pro Max Micro
