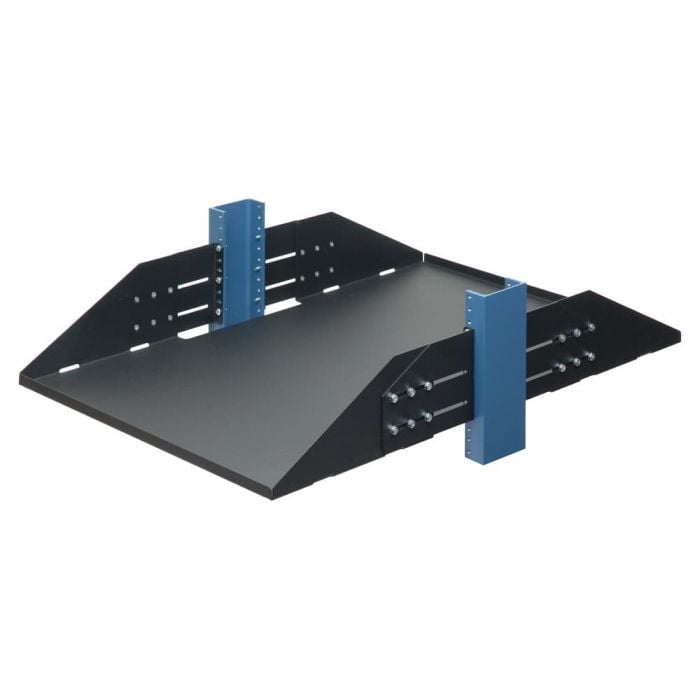

3U 2Post Adjustable Center Mount Rack Shelf 29in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
As low as $109.99
In stock

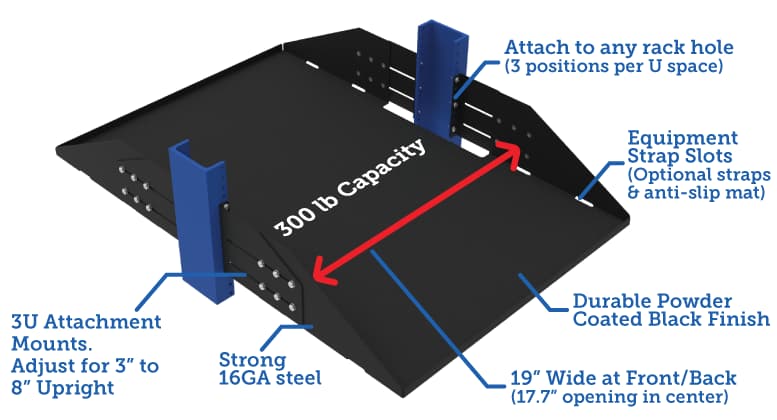

Adjustable to Fit Most 2 Post Racks

  • Options with flanges facing up or down
  • Mounting brackets adjustable to fit 3" - 8" (76 - 203 mm) uprights
  • Slots for equipment straps along the side of the shelf
  • Can be mounted upside down

Compatible With 2 Post Racks

  • Weight Capacity: 300 lb (136 kgs)
  • Shelf Depth: 29" (736 mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions 29 inch (736 mm deep) 3U Adjustable 2 Post Relay Rack Shelf is designed to fit almost every standard EIA 19" 2 Post telco or relay racks by using adjustable mounting brackets that can fit uprights ranging 3 - 8 inches (76 - 203 mm). Choose from options with flanges, also called equipment stops, facing up or down. The shelf features slots for equipment straps along the side of the shelf for securing any equipment on the shelf.

3U Adjustable 2 Post Relay Rack Shelf - 29 (desktop image)3U Adjustable 2 Post Relay Rack Shelf - 29 (mobile image)
More Information
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 3USHL-024FULL-29US | 107-2237
  • Assembly Components:
    • (1) Shelf
    • (2) Left Brackets
    • (2) Right Brackets
  • Rack Hardware Package:
    • (13) 10-32 Pan Head Screw
    • (13) 12-24 Pan Head Screw
  • Bracket Hardware Package:
    • (25) 8-32 Pan Head Screw
    • (25) 8-32 Keps Nuts
Dell Part Number 3USHL-024FULL-29US - A5898252
107-2237 - A7270128
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 3USHL-024FULL-29US - 5809083
107-2237 - 5000056
Ingram Part Number 3USHL-024FULL-29US - GV8606
107-2237 - KT8237
Assembly Notes Phillips Head Screwdriver Required
Equipment Depth Supports equipment up to 29" (736 mm).

The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges increase load capacity and prevent equipment movement.
Shelf Type Solid
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area 17.7" x 29" (450 mm x 736.6 mm)
Finish Black Textured Powdercoat
Mounting Depth Range These Telco Rack Shelves are compatible with a Telco Rack
with 3" to 8" (76.2 mm to 203 mm) Side Post.
Weight Capacity 300 lb (136 kgs)
Rack Units 3U
Tool-less/Standard Standard
Overall Installation Depth 29" (736.6 mm)
Material 16 GA Steel
