110-B Wall Mounts for Dell USFF

As low as $99.99
In stock
Adjustable
Fixed

Wall mount a Dell OptiPlex 780 USFF

  • Only Compatible with USFF PCs - Full Compatibility Below
  • Monitor attaches using 75 mm and 100 mm VESA hole patterns
  • Wallmount bracket supports up to 50 lbs
  • All required mounting hardware is included
  • PC and monitor not included

Customize to your needs

  • Compatible with most flat panel displays
  • Pairs great with one of our keyboard wall mounts
  • Tilt and fixed monitor options available

Dell Compatible Products

  • OptiPlex 780 Ultra Small Form Factor (USFF)
  • OptiPlex 790 Ultra Small Form Factor (USFF)
  • OptiPlex 990 Ultra Small Form Factor (USFF)
  • OptiPlex 7010 Ultra Small Form Factor (USFF)
  • OptiPlex 9010 Ultra Small Form Factor (USFF)
  • OptiPlex 9020 Ultra Small Form Factor (USFF)

NOTE: See "Additional Information" below for compatibility.

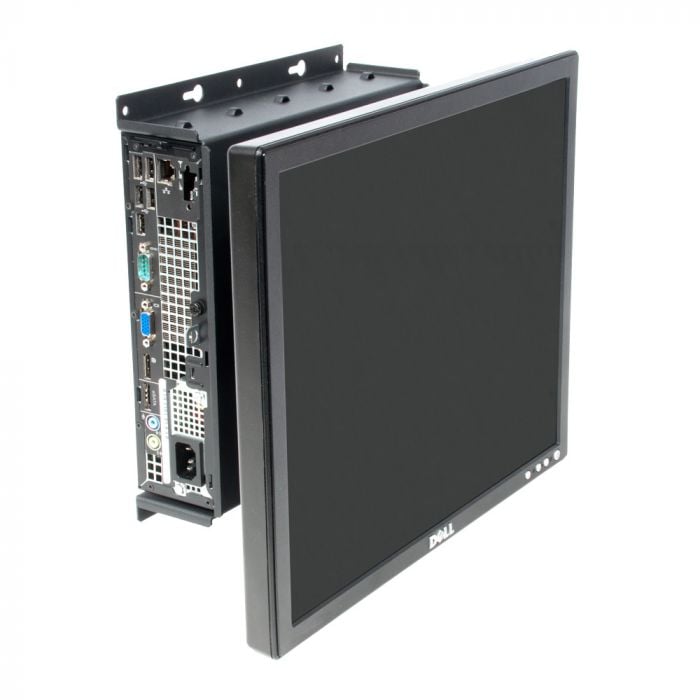

The Dell OptiPlex 780 USFF Wall Mount from RackSolutions is used for mounting the ultra-small form factor (USFF) Dell OptiPlex 780 PC, as well as various other OptiPlex USFF models. Combined with a monitor, the mount takes the PC's already small footprint and takes up even less space by creating a compact all-in-one solution, making it perfect for small offices or cramped work environments. A fully wall mounted system can be created when paired with one of our keyboard wall mounts. Two versions of the wall mount are available, with one that keeps the monitor in a standard "fixed" position, and another option that includes a tilt bracket that allows you to position your monitor to your preferred viewing angle. The Dell OptiPlex 780 USFF Wall Mount is compatible with most flat panel displays using 75 mm and 100 mm VESA hole patterns.


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware "104-1965
    Assembly Components:
    • (1) Main Bracket
    Monitor Hardware Package:
    • (8) Nylon Spacers
    • (5) M4 x 10mm Flat Head Screws
    • (5) M4 x 12mm Flat Head Screws
    • (5) M4 x 20mm Flat Head Screws
    Wall Mount Hardware Package:
    • (4) Pan Head Screws
    • (4) Anchors


104-1952
  • Assembly Components:
    • (1) Main Bracket
    • (1) Pivot Assembly
  • Monitor Hardware Package:
    • (8) Nylon Spacers
    • (5) M4 x 10mm Pan Head Screws
    • (5) M4 x 18mm Pan Head Screws
    • (5) M4 x 25mm Pan Head Screws
  • Wall Mount Hardware Package:
    • (4) Pan Head Screws
    • (4) Anchors
  • Pivot Hardware:
    • (5) 8-32 Flat Head Screws
"
Compatibility Dell
Dell Part Number 104-1952 - A4417547
104-1965 - A5742989
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 104-1952 - 4614626
104-1965 - 4614625
Ingram Part Number 104-1952 - DV8684
104-1965 - KF1081
Rack Type Wall Mount
Finish Black, textured powder finish
