120-B Wall Mounts for Dell OptiPlex SFF
Wall Mount for Dell OptiPlex SFF PC Models
- Only Compatible with SFF PCs - Full Compatibility Below
- Creates a compact, wall mounted, all-in-one solution
- 75 mm and 100 mm VESA hole pattern
- Wall mount bracket can hold up to 50 lbs
- Includes all mounting hardware
- PC & Monitor not included
Customize to your needs
- Compatible with most monitors
- Tilt option available to position the monitor as needed
- Combined with a keyboard wall mount provides a full wall mounted system
NOTE: See "Additional Information" below for compatibility.Â
Dell Compatible Products
Optiplex 3010 Small Form Factor (SFF)
Optiplex 3020 Small Form Factor (SFF)
- Optiplex 7010 Small Form Factor (SFF)
- Optiplex 7020 Small Form Factor (SFF)
- Optiplex 7040 Small Form Factor (SFF)
- Optiplex 9010 Small Form Factor (SFF)
- Optiplex 9020 Small Form Factor (SFF)
Optiplex 740 Small Form Factor (SFF)
Optiplex 745 Small Form Factor (SFF)
- Optiplex 790 Small Form Factor (SFF)
- Optiplex 960 Small Form Factor (SFF)
- Optiplex 980 Small Form Factor (SFF)
- Optiplex 990 Small Form Factor (SFF)
- OptiPlex XE2 Small Form Factor (SFF)

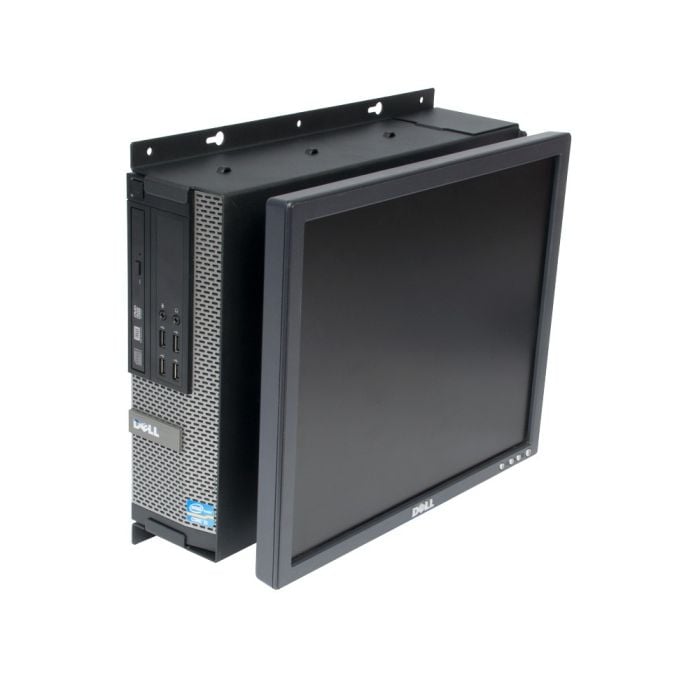

RackSolutions' Dell Optiplex 790 SFF Wall Mount allows you to mount Dell OptiPlex 790 SFF PCs, as well as other OptiPlex SFF models including the 9010 to the wall. The wall mount creates a compact all-in-one system by mounting both the PC and the monitor together on the wall. The mount also allows you to mount the PC horizontally under a table or desk if desired at the expense of the monitor mount. There are two options when choosing a Dell Optiplex 790 SFF Wall Mount, a version that allows your monitor to tilt and one that stays fixed. The wall mount is compatible with almost any flat panel display using 75 mm and 100 mm VESA hole patterns. All required mounting hardware is included with the Dell Optiplex 790 SFF Wall Mount.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.
| Dell Part Number | 104-2323 (Fixed) - A7248086 104-2324 (Tilt) - A5777178 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
|---|---|
| Synnex Part Number | 104-2323 - 4614619 104-2324 - 4614620 |
| Ingram Part Number | 104-2323 - LC0946 104-2324 - LC0947 |
| Compatibility | Dell |
| Assembly Notes | Phillips head screwdriver required |
| Dimensions | Fixed Monitor Outside Dimensions P/N: 104-2323 H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 4.06" (103 mm) Tilt Monitor Outside Dimensions P/N: 104-2324 H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 5.09" (129 mm) |
| Rack Type | Wall Mount |
| Finish | Black, textured powder finish |
| Amazon ASIN | 104-2323 = B00UVK81V4 104-2324 = B00NFTCYIY |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Included Hardware |
|
