100-A Wall Mounts for Dell OptiPlex Micro PCs

main product photo
RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
Proudly US Made (default) Proudly US Made (hover)
Be the first to review this product
As low as $32.99
In stock
RackSolutions Dell OptiPlex Micro PCs Wall Mount Shareable
Get shareable link
RackSolutions Dell OptiPlex Micro PCs Wall Mount Hint

Wall mount your Dell OptiPlex Micro PC

  • 104-5005 - Fixed
  • 104-4935 - Tilted
  • Creates a compact all-in-one solution and can mount under a desk
  • Uses 75 mm and 100 mm VESA hole pattern
  • All required mounting hardware is included

Customizable to your needs

  • Tilt bracket option available to adjust monitor
  • Works with most flat panel displays
  • Pairs great with our keyboard wall mount
  • Secure barrel lock is included with the lock upgrade (101-8412)

NOTE: See "Additional Information" below for compatibility. PC & Monitor NOT included.



The Dell OptiPlex Micro Wall Mount from RackSolutions takes the OptiPlex Micro's already ultra compact design and creates an all-in-one solution, leaving an even smaller footprint making it suitable for almost any work environment. The Dell OptiPlex Micro Wall Mount allows a monitor to be attached using 75 mm and 100 mm VESA hole patterns, making it compatible with most flat panel displays. There are two options when choosing a Dell OptiPlex Micro Wall Mount, a version that allows your monitor to tilt and one that stays fixed. The wall mount can also be mounted under a desk, keeping it hidden and out of the way. For added security, a lock upgrade using a secure bracket and barrel lock (included with the secure lock upgrade) is also available. The Dell OptiPlex Micro Wall Mount includes all required mounting hardware so all you need is a Phillips head screwdriver.

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).

Compatible Dell Products:

  • Dell OptiPlex 3000 Micro
  • Dell OptiPlex 3020 Micro
  • Dell OptiPlex 3040 Micro
  • Dell OptiPlex 3046 Micro
  • Dell OptiPlex 3050 Micro
  • Dell OptiPlex 3060 Micro
  • Dell OptiPlex 3070 Micro
  • Dell OptiPlex 3080 Micro
  • Dell OptiPlex 3090 Micro
  • Dell OptiPlex 5000 Micro
  • Dell OptiPlex 5050 Micro
  • Dell OptiPlex 5060 Micro
  • Dell OptiPlex 5070 Micro
  • Dell OptiPlex 5080 Micro
  • Dell OptiPlex 5090 Micro
  • Dell OptiPlex 7000 Micro
  • Dell OptiPlex 7010 Micro
  • Dell OptiPlex 7020 Micro
  • Dell OptiPlex 7040 Micro
  • Dell OptiPlex 7050 Micro
  • Dell OptiPlex 7060 Micro
  • Dell OptiPlex 7070 Micro
  • Dell OptiPlex 7080 Micro
  • Dell OptiPlex 7090 Micro
  • Dell OptiPlex 9020 Micro
  • Dell OptiPlex Micro Form Factor (Plus 7020)

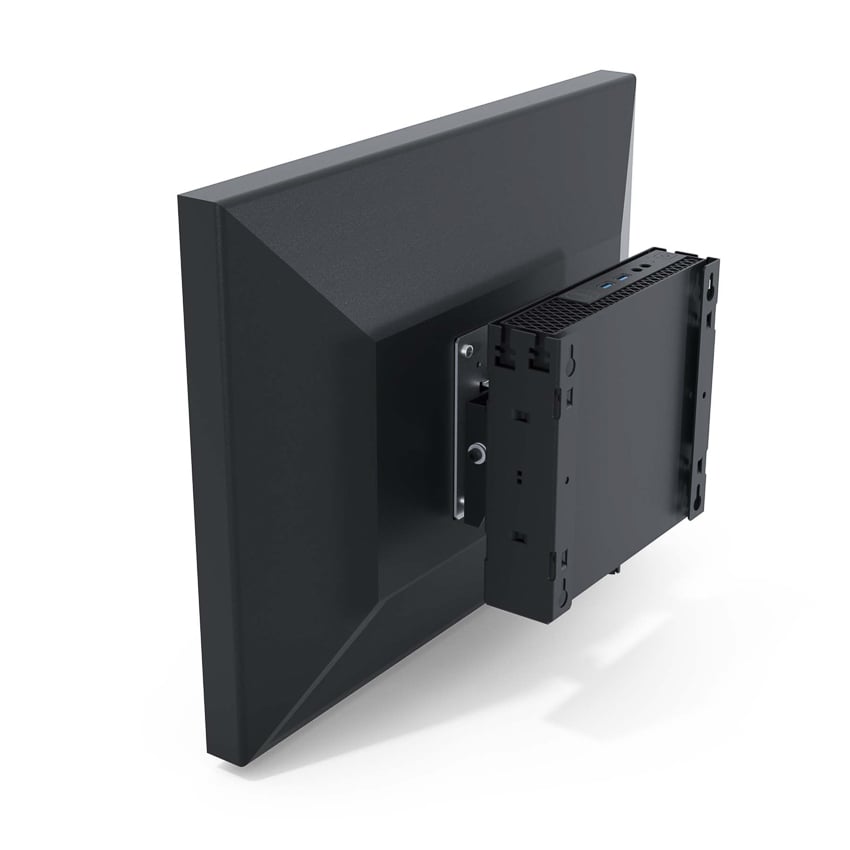

Racks 104 4935 MAIN MOUNT TILT BACK02 v03-850px (desktop image)Racks 104 4935 MAIN MOUNT TILT BACK02 v03-850px (mobile image)

104-4935 - Tilted Bracket

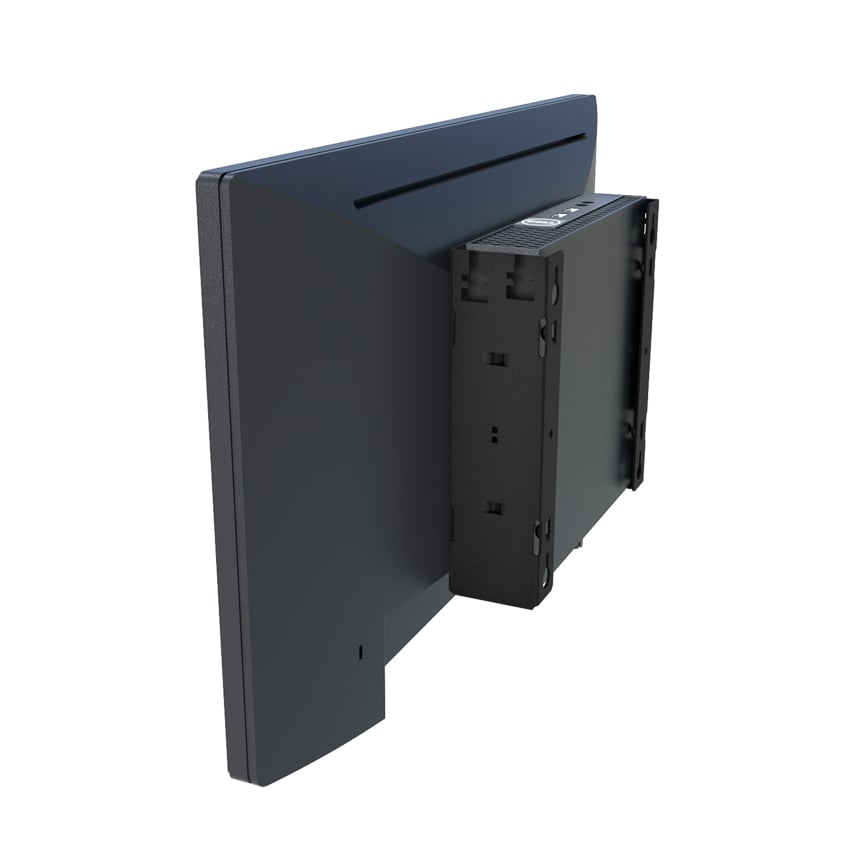

104-5005 100 A Wall Mounts For Dell4-850px (desktop image)104-5005 100 A Wall Mounts For Dell4-850px (mobile image)

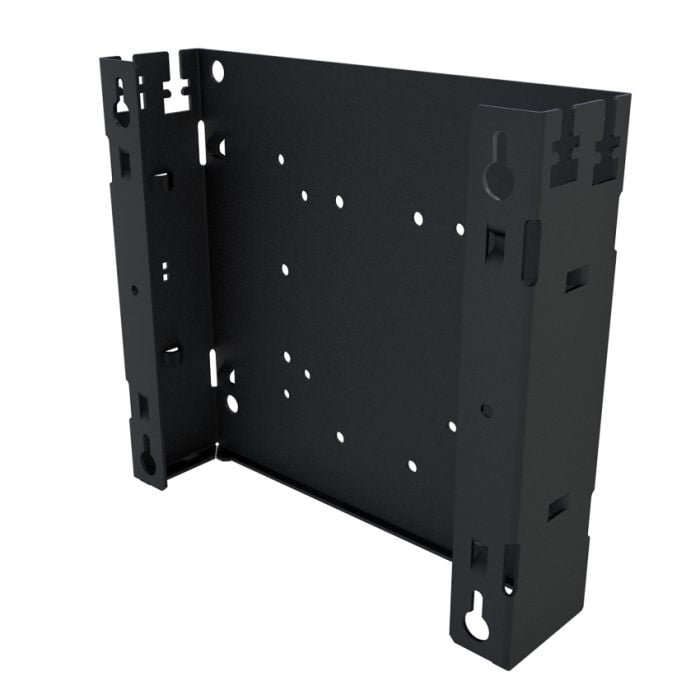

104-5005 - Fixed Bracket

VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware "104-4935 | 104-5005
  • Wall Mount Hardware Package:
    • (4) Drywall Anchors
    • (4) 8-32 x 1.250 Pan Head Screws
  • Assembly Components:
    • (1) Mount Bracket
    • (1) Tilt Monitor Bracket (104-4935 Only)
  • Tilt Monitor Bracket Hardware Package (104-4935 Only):
    • (4) 8-32 x 0.375 Pan Head Screws
  • Fixed Monitor Mount Hardware Package:
    • (8) Spacers
    • (4) M4 x 0.7 x 10mm Pan Head Screws
    • (4) M4 x 0.7 x 18mm Pan Head Screws
    • (4) M4 x 0.7 x 25mm Pan Head Screws
"
Compatibility Dell
Compatible Products
  • Dell OptiPlex 3000 Micro
  • Dell OptiPlex 3020 Micro
  • Dell OptiPlex 3040 Micro
  • Dell OptiPlex 3046 Micro
  • Dell OptiPlex 3050 Micro
  • Dell OptiPlex 3060 Micro
  • Dell OptiPlex 3070 Micro
  • Dell OptiPlex 3080 Micro
  • Dell OptiPlex 3090 Micro
  • Dell OptiPlex 5000 Micro
  • Dell OptiPlex 5050 Micro
  • Dell OptiPlex 5060 Micro
  • Dell OptiPlex 5070 Micro
  • Dell OptiPlex 5080 Micro
  • Dell OptiPlex 5090 Micro
  • Dell OptiPlex 7000 Micro
  • Dell OptiPlex 7010 Micro
  • Dell OptiPlex 7020 Micro
  • Dell OptiPlex 7040 Micro
  • Dell OptiPlex 7050 Micro
  • Dell OptiPlex 7060 Micro
  • Dell OptiPlex 7070 Micro
  • Dell OptiPlex 7080 Micro
  • Dell OptiPlex 7090 Micro
  • Dell OptiPlex 9020 Micro
  • Dell OptiPlex Micro Form Factor (Plus 7020)
Dell PC Compatibility OptiPlex 3020 MFF, OptiPlex 3040 MFF, OptiPlex 3046 MFF, OptiPlex 3050 MFF, OptiPlex 3060 MFF, OptiPlex 3070 MFF, OptiPlex 3080 MFF, OptiPlex 3090 MFF, OptiPlex 5050 MFF, OptiPlex 5060 MFF, OptiPlex 5070 MFF, OptiPlex 5090 MFF, Optiplex 7000 MFF, Optiplex 7010 MFF, Optiplex 7020 SFF, OptiPlex 7040 MFF, OptiPlex 7050 MFF, OptiPlex 7060 MFF, Optiplex 7070 MFF, OptiPlex 7090 MFF, OptiPlex 9020 MFF
Dell Part Number 104-5005 - A8930316
104-4935 - A8930317
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 104-5005 - 4614617
104-4935 - 4614618
Ingram Part Number 101-7732 - 9CA727
104-5005 - 7BB558
104-4935 - 9CA726
Finish Black, textured powder finish
