100-C Fixed Wall Mount for Dell Wyse

$64.99
In stock
SKU
114-4658

Wall mounts a Dell Wyse 7000 Series

  • Compatible with most Wyse Z Class Thin Client PCs
  • Uses 75 mm and 100 mm VESA monitor hole pattern
  • Raised lances for securing zip ties
  • All required mounting hardware is included
  • PC, power supply, & monitor not included

Customize to your needs

Dell Compatible Products

  • Wyse Zx0
  • Wyse 7290-Z90D7
  • Wyse 7490-Z90Q7
  • Wyse 7490-Z90QQ7p
  • Wyse 7290-Z90D8
  • Wyse 7490-Z90Q8
  • Wyse 7490-Z90Q10
  • Wyse Thin Client 7040
  • Wyse Thin Client 5070 Slim
  • Wyse Thin Client 7020 Small Form Factor (SFF)

NOTE: See "Additional Information" below for compatibility with other models.

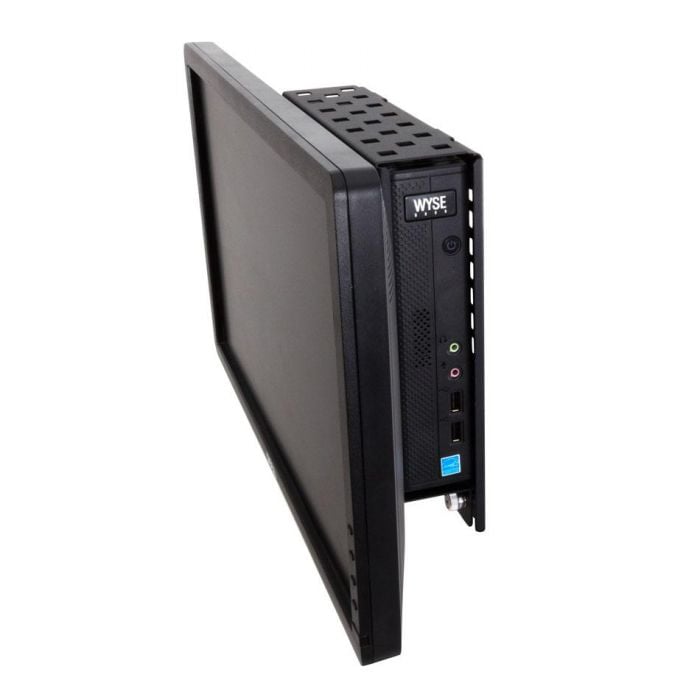

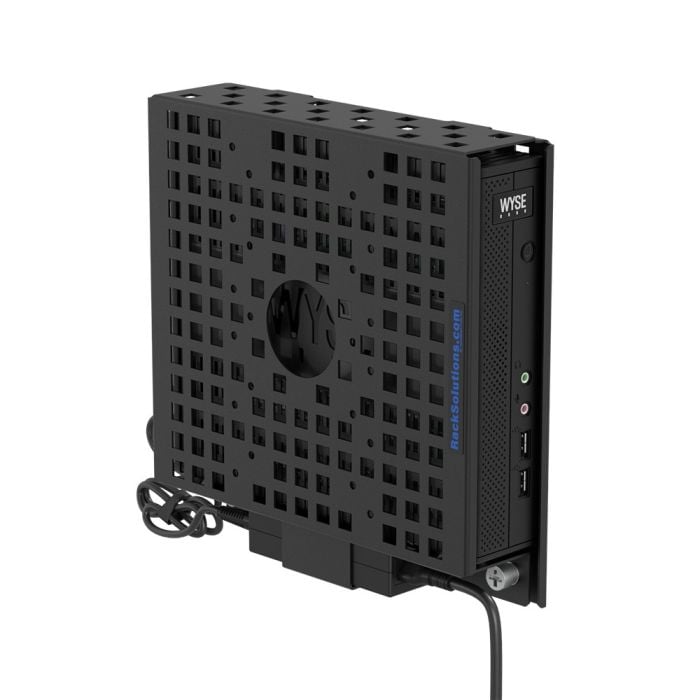

The RackSolutions Dell Wyse 7000 Series Wall Mount is designed to create a compact work space by mounting a Dell Wyse Thin Client PC to a wall. With VESA hole patterns on both sides, the wall mount is dual mounting, allowing it to mount your Z Class thin client to the back of a monitor, as well as to a wall or even a monitor arm. The wall mount is designed to be compatible with most flat panel displays, and serves as an alternative to the Wyse Dual Mounting Bracket Kit. The bracket also includes a place for the power brick to be mounted with the PC. All required mounting hardware is included with the Dell Wyse Wall Mount. Raised lances are integrated in the enclosure for securing cables and the power brick to the enclosure. PC, A/C adapter, & monitor are not included.


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 3.906000
Country of Manufacture United States
Included Hardware 114-4658
  • Assembly Components:
    • (1) Mounting Bracket
    • (1) Chassis Bracket
  • Monitor Hardware Package:
    • (8) Nylon Spacers
    • (5) M4 x 10mm Pan Head Screws
    • (5) M4 x 18mm Pan Head Screws
    • (5) M4 x 25mm Pan Head Screws
  • Wall Mount Hardware Package:
    • (4) Pan Head Screw
    • (4) Anchors
  • Attachment Hardware Package:
    • (4) M4 Keps Nuts
    • (2) M4 x 12mm Pan Head Screws
    • (4) M4 x 10mm Pan Head Screws
Compatibility Dell
Dell Part Number 114-4658 - A8500541
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 114-4658 - 4614616
Ingram Part Number 114-4658 - 1P2985
Finish Black, powder coat
