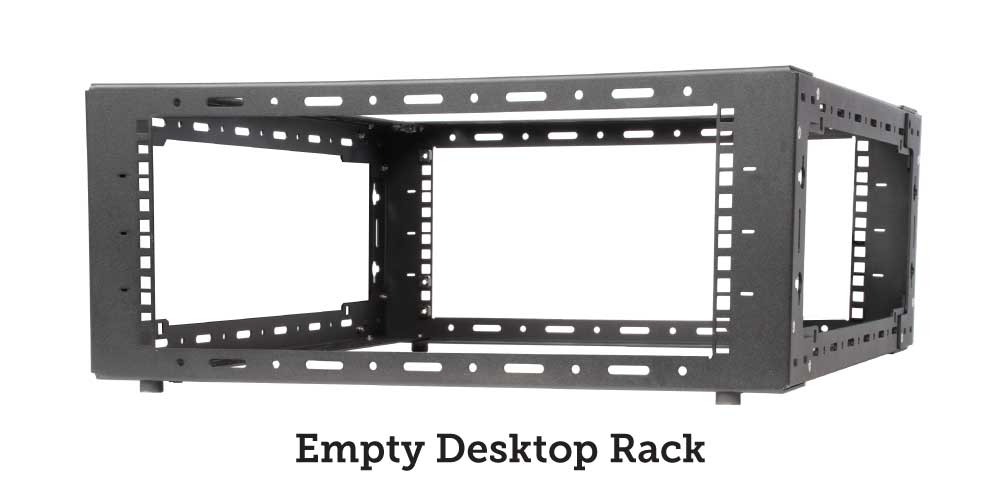

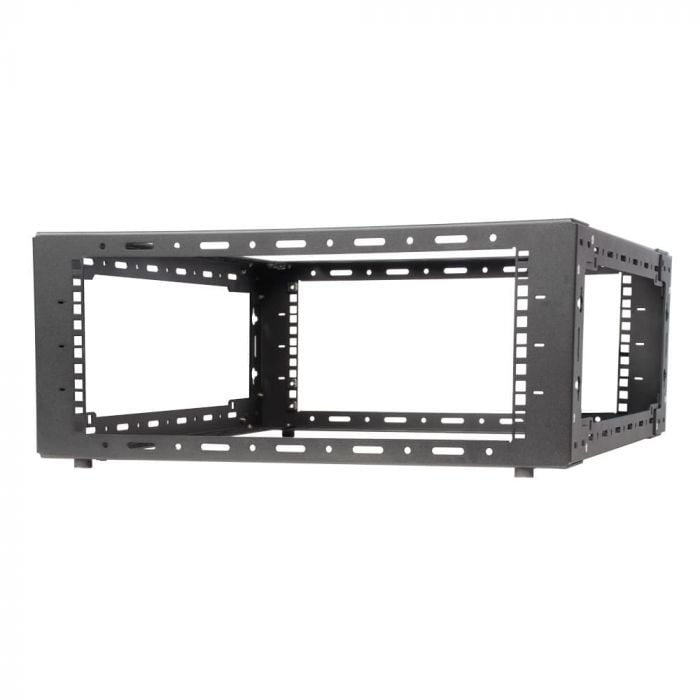

Open Frame Desktop Rack

Availability: In stock

Open Frame Desktop Rack

4U-9U Front Mount, 12U-21U Top Mount

  • 9 total configurations
  • Mount 19" rack mount equipment
  • 50 lb per U capacity (9U = 450 lb capacity)
  • For servers, use 15U depth = 29.95" mounting depth
  • Mount servers up to 9U

Desktop mount 19" equipment and servers

  • Optional side panels
  • Open design allows for optimal air flow
  • Easy cable access & tie points
    *Be sure your server rails will extend to 29.95" before ordering

See "Additional Information" for Tech Specs.

Rack Solutions Promise

* Required Fields

From: CA$204.99

To: CA$384.93

Price as configured: CA$0.00

Price as configured: CA$0.00



Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

Our desktop rack unit is available in 4U-9U front mounts and 12U-21U top mounts combining into 9 total configurations. The open frame rack desk top rack mounts 19" rack mount equipment and holds 50 lbs per U capacity.

Desktop Rack Features

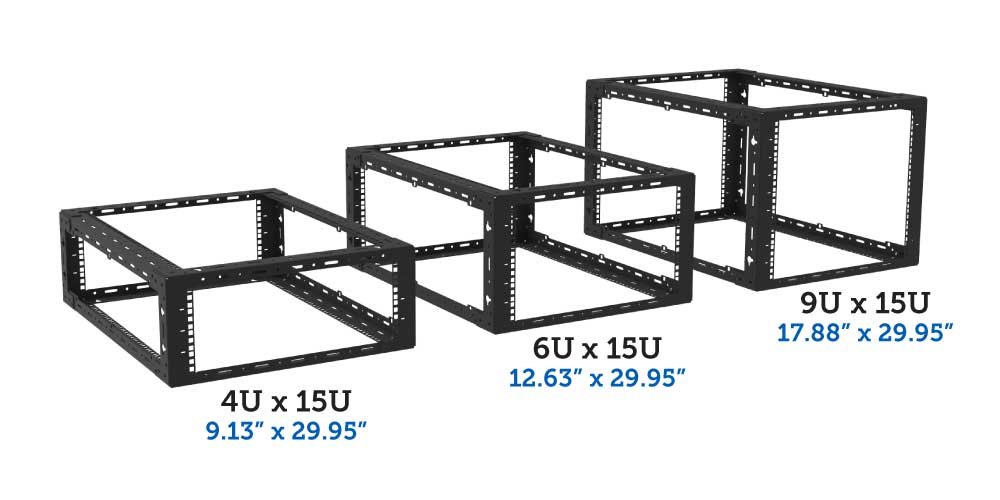

Desktop Rack Sizes

Side Panels

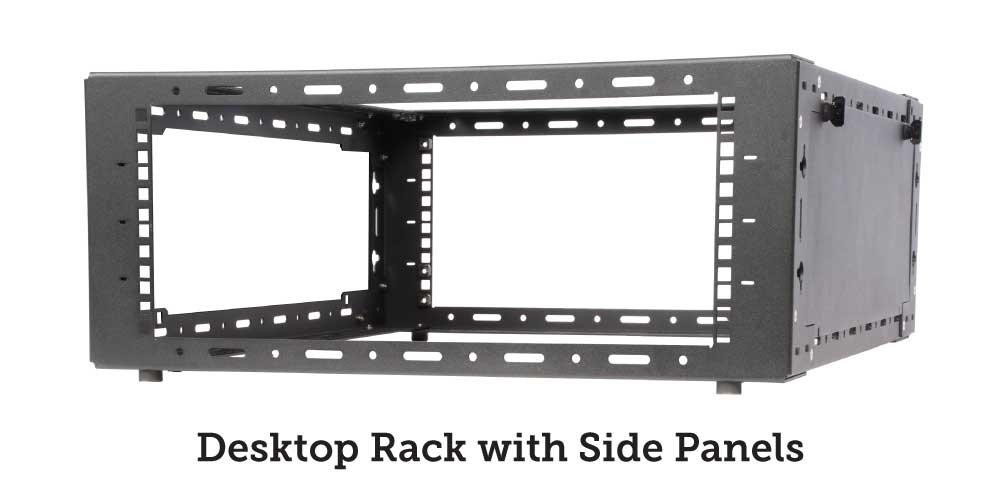

Desktop Rack Side Panels

Our desktop rack is tool-less and noin-locking. The desktop rack mount side panels come in 9 different sizes and are sold as as single units.You must order 2 side panels per desktop server rack if you wish to install side panels on the left and right side of the desktop rack stand. The desktop equipment rack side panels are easy to install.

Filler Panels

Filler Panels may be used to fill in the open spaces on the front, back and top of the Desktop Computer Rack.

Power Strips

Any of these horizontal power strips will easily mount to the top, front or back of this Desktop Rackmount Kit.

Additional Information

Additional Information

Rack Type 4 Post Rack, Open Frame
Rack Internal Width EIA 19" Standard Rack
Included Hardware (2) Frames
(4) Posts

Assembly Hardware Kit
(32) 10-32 x .375" Flat Head Screws

Mounting Hardware Kit
(4) .25" Hex Lag Screws
(4) .281 Flat Washers

Rack Mount Hardware Kit
(20) 12-24 x .500" Pan Head Screws
(20)12-24 Cage Nuts
Finish Black, powder coated

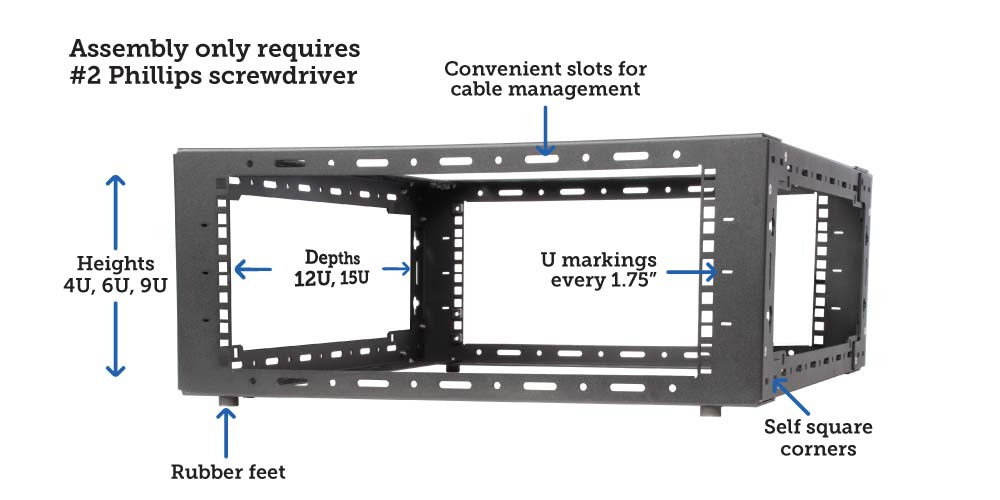

Assembly Notes Assembly time is less than 10 minutes
Requires only a #2 Phillips Screwdriver
Rack Units 4U, 6U, or 9U front mount
12U, 15U, 21U top mount
RoHS Compliant Yes
TAA Compliant Yes
Dimensions Vertical: 4U, 6U, 9U in front and rear
Horizontal: 12U, 15U, 21U on top
