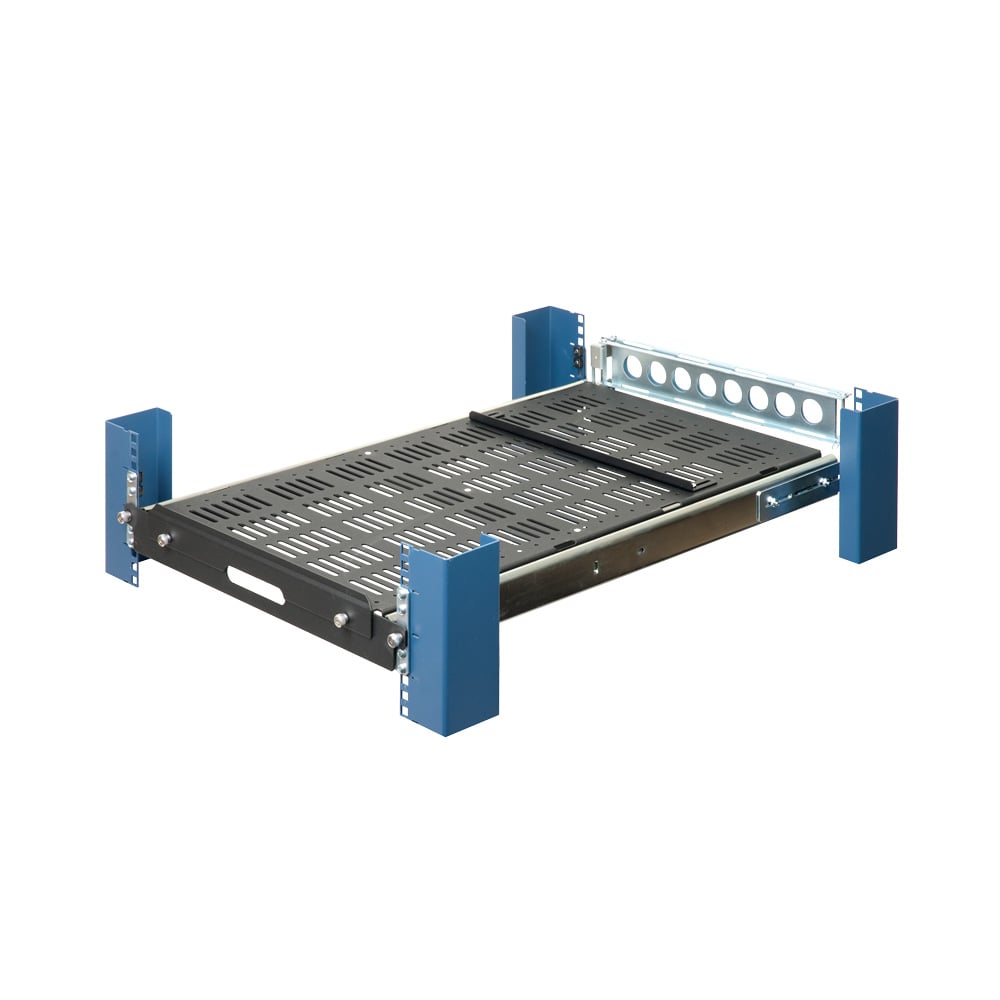

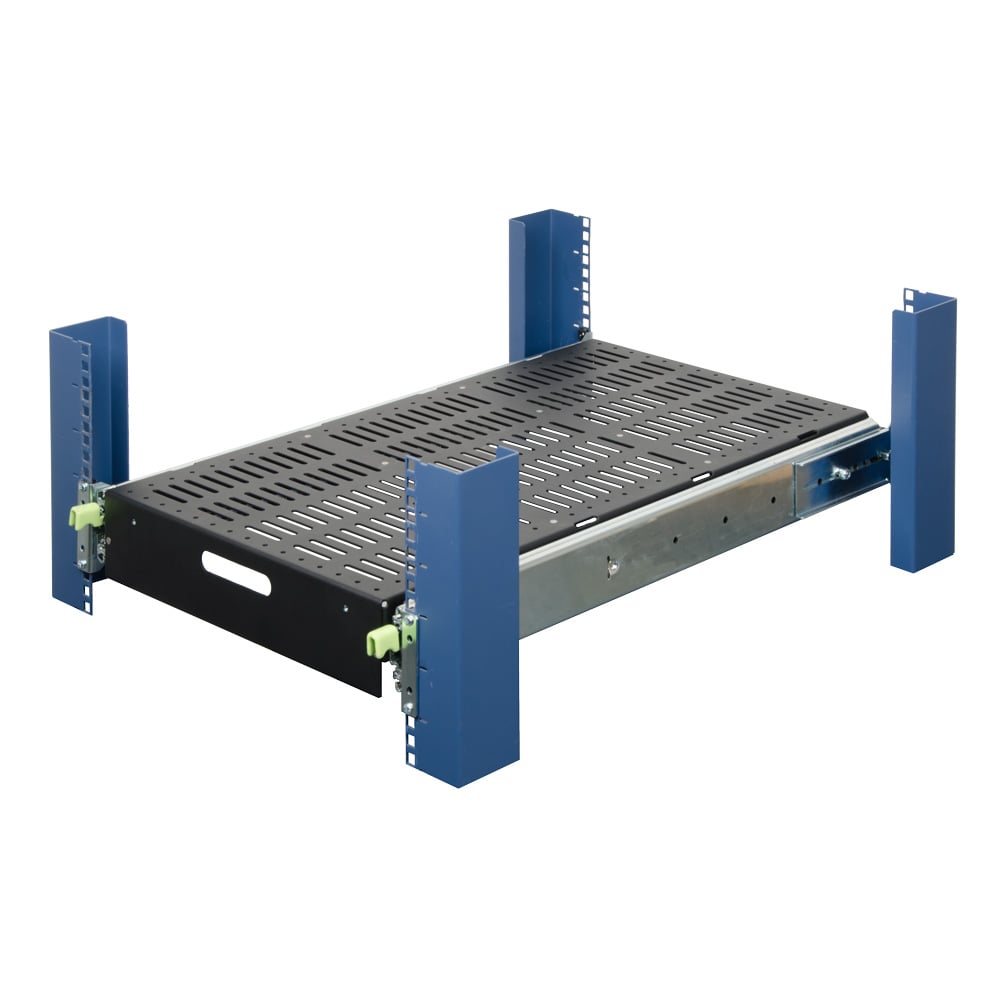

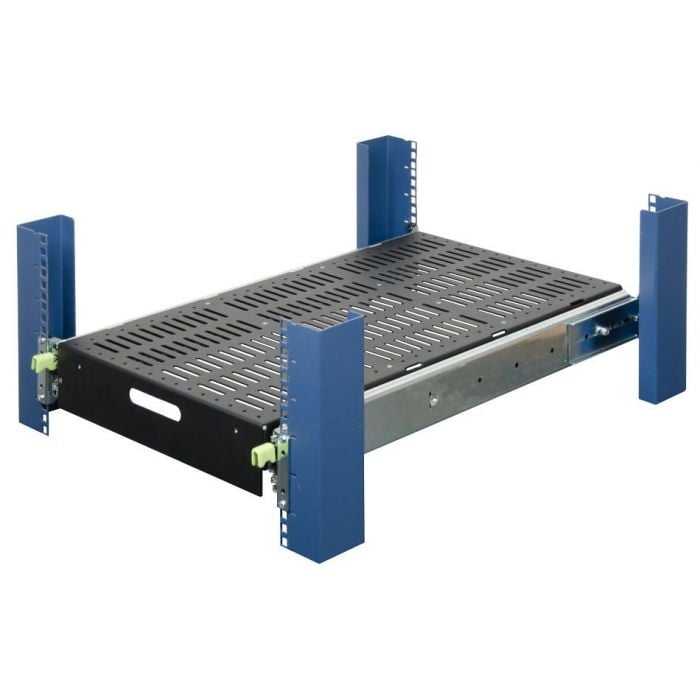

2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs)
Sliding Shelf for REALLY Heavy Equipment
- Great for non-rack-mountable equipment, large tower servers, and heavy switches
- Surface area: 28" L x 17.6" W (711 x 447 mm)
- Heavy-duty, ball bearing slides
Fits Any 4 Post Rack
- Compatible with square, round, threaded holes
- Shelf Depth: 28" (711 mm) deep, 17.6" (447 mm) wide
- Mounting Depth: 18 - 30" (457 -762 mm)
- Weight Capacity: 500 lbs (227 kgs)
This has been tested to be compatible with:
- Cisco Catalyst Switches
- Dell PowerEdge VRTX
See "Additional Information" for Technical Specifications.
RackSolutions Extreme Heavy Duty Sliding Shelf (500 lbs) is an ideal solution in environments where servers, computers and other equipment needs to be stored on a sturdy heavy duty pull out shelf that can be slid forward for easy access during operation.
Our heavy duty slide out shelves are compatible with square, threaded and round hole-based server racks, and feature an extended reach of 29". The Extreme Heavy Duty Sliding Shelf itself is 28" deep, letting users safely store most computers and other equipment. The heavy-duty sliding shelf hardware solution is also durable, as it is built of rolled steel and capable of holding 500 lbs of equipment.
In terms of compatibility, the heavy duty roll-out shelving will fit on almost any standard EIA standard server racks.
|Dell Part Number||115-4044 - AB186492
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||115-4044 - 6211151|
|Ingram Part Number||115-4044 - 8V6754|
|Assembly Notes||Phillips head screwdriver required|
|Equipment Depth||Supports items up to 28" (711 mm) Deep, 17.6" (447 mm) Wide|
|Rack Type||4 Post|
|Shelf Surface Area||28" L x 17.6" W (711 x 447 mm)|
|Finish||Black, textured powder coat|
|Mounting Depth Range||18 - 30" (457 -762 mm)|
|Included Hardware||10-32 & 12-24 screws
Cage nuts included for square hole racks
|Weight Capacity||500 lbs (227 kgs) Capacity|
|Hole Type||Fits Square, Round, Threaded Holes|
|Tech Notes||This has been tested to be compatible with Cisco Catalyst 6513-E Cisco Catalyst 6509-V-E Dell PowerEdge VRTX|
