Universal Rack Mount Monitor Bracket


Availability: In stock

Universal Rack Mount Monitor Bracket

Universal Monitor Mount for Server Racks

  • Flushmount any LCD monitor up to 20"
  • Uses standard 75 mm - 100 mm VESA hole pattern
  • Adjustable center mount depth of .44 - 3.5" (11.2 - 89 mm)
  • Great for viewing data in control rooms, AV racks, and data centers
Monitor not included.

Compatible with standard EIA 19" racks

  • Fits square, round, threaded holes
  • Easily installed in 4 post and 2 Post racks
  • Dell, HP, IBM, APC compatible
Rack Solutions Promise
Product Name SKU Price Qty
Universal Rack Mount Monitor Bracket MON-BRK-163

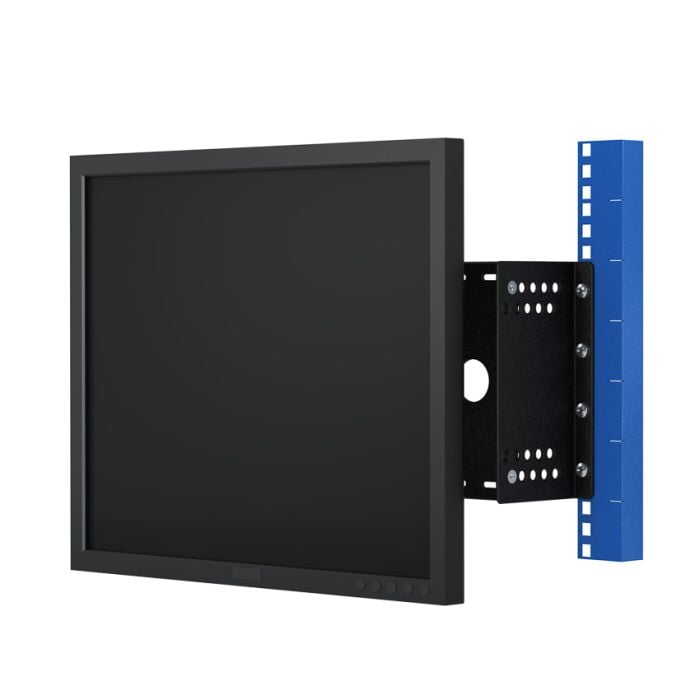

The flush mount monitor kit allows for the installation of any flat screen monitor with 75 or 100 mm VESA mount into any EIA standard 19" server rack. With this kit, you can install up to a 20" flat screen display into a server rack. The rack is perfect for displaying any data or other video feed from a server rack, control center, or AV rack. A rackmount keyboard is available as an optional feature.

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.

  • Adjusts to needed equipment width

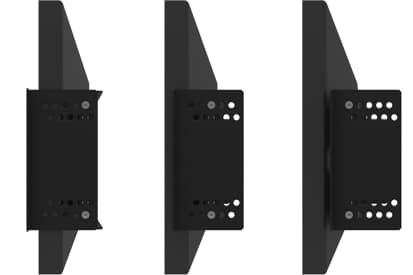

    Adjustable Center Mount Depth
    Adjust your monitor depth in your rack in increments of 0.25" to get the best viewing angle
  • Power Brick and Cord Storage

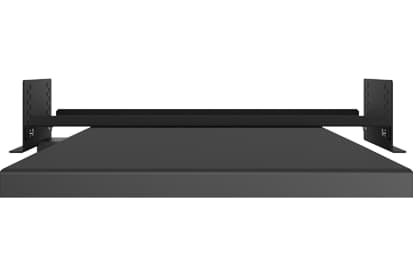

    Universal Monitor Mounting
    Mount any monitor within 17.5" width inside the bracket, or mount wider monitors on the front of the bracket
Additional Information

Additional Information

Mounting Depth Range Max bracket depth - 3.5"
Min bracket depth - 0.44"
Adjustable depth increments - 0.25"
Rack Type 2 Post Rack (Telco Rack), 4 Post Rack
Tech Notes Installation is flush with rack post, the width cannot exceed: 17.5" (444.5 mm)
Wider displays can be mounted in front of rack post depending on door clearance.
15" - 19" (381 - 483 mm) displays will typically mount flush with rack post.
20" (508 mm) display can mount flush. However, it cannot exceed the 17.5" (444.5 mm) width, or it will require mounting the display forward of the rack post.
Overall Installation Depth Center mounting bracket: 0.44" - 3.5" (11.2 - 89 mm) adjustable in 0.25" (6.35 mm) increments
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
Included Hardware Assembly Contents:
  • (1) Mounting bracket
  • (2) Angle brackets
Rack Hardware
  • (8) 12-24 nuts
  • (8) 10-32 pan head screws
  • (8) 12-24 pan head screws
  • (8) 12-24 cage nuts "black"
Monitor Hardware Package:
  • (8) Nylon spacers
  • (5) M4 x 10 mm pan head screws
  • (5) M4 x 18 mm pan head screws
  • (5) M4 x 25 mm pan head screws
  • (5) 10-32 Flat Head Screws
  • (5) Flat Washers
Assembly Notes Phillips head screwdriver required
VESA Mount Compatible with 100 mm or 75 mm VESA hole patterns
Finish Black, Powder coated
RoHS Compliant Yes
TAA Compliant Yes
