1U Raven 100-A Rail for HP
$174.99
In stock
SKU
122-2413
Fits any 4 Post rack
- Non-ball bearing, slide rails
- Square, round, threaded hole compatible
- Adjustable mounting depth of 18 - 34.5" (457 - 876 mm)
- HP rail kit not required
- Supports L, C, Z and ? (opens in a new tab) rack upright shapes
Alternative to HP DL320 Gen 8, DL360 Gen 8Â & Gen 9 rail kit
- Mounts HP DL320 Gen 8, DL360 Gen 8 & Gen 9 in 4Post racks
- Mounts HP DL320 Gen 8, DL360 Gen 8 & Gen 9 in any 2Post Relay Rack
Fits any 2Post rack
- Center mounts in 2Post rack
- Works with 3" - 6" uprights
Â

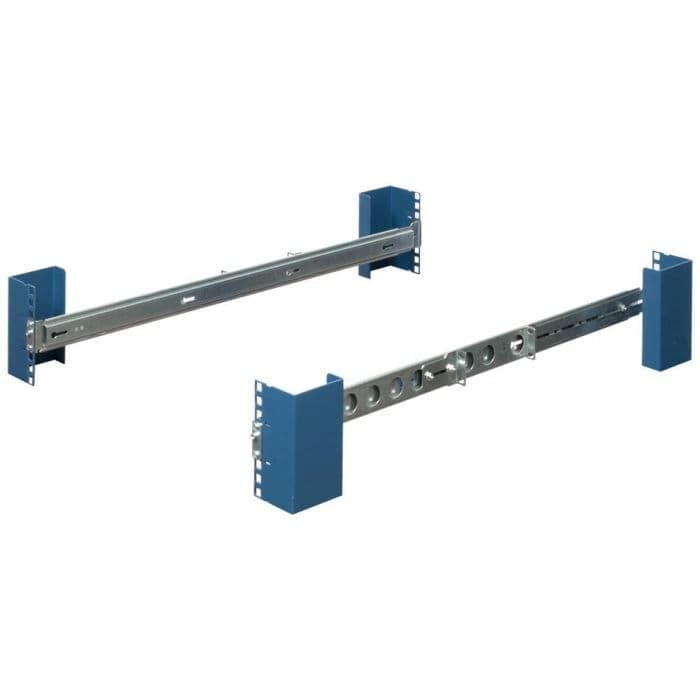

This slide rail kit allows the HP DL320 Gen 8, DL360 Gen 8 and Gen 9 to be installed in any type of server rack. These rails replace the HP rail kit that would normally come with the sever. This 1U HP rail kit allows the server to be installed in typical 4Post server racks as well as 2Post server racks. These rails are considered a dry slide type. They allow the server to slide in and out, but they are not ball bearing slides. Also, the rails do not include a stop catch mechanism that prevents the server from sliding completely out of the rack when removing it for servicing.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 3.600000 |
| Country of Manufacture | United States |
| Compatibility | HP |
| HP Server Compatibility | DL60 G9, DL120 G9, DL120 G10, DL160 G8, DL160 G9, DL160 G10, DL320 G8, DL325 G10, DL360 G8, DL360 G9, DL360e G8 |
| Dell Part Number | 122-2413 - AA182301 |
| Synnex Part Number | 122-2413 - 4930326 |
| Ingram Part Number | 122-2413 - RT4583 |
| Fixed/Sliding | Sliding |
| Tech Notes | This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack. Inner Rail Length: 27.3" |
| Finish | Zinc plated |
