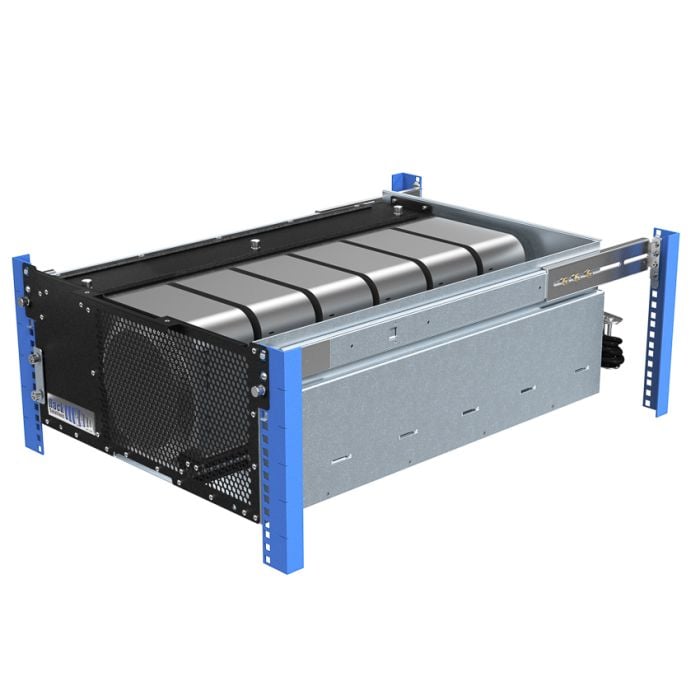

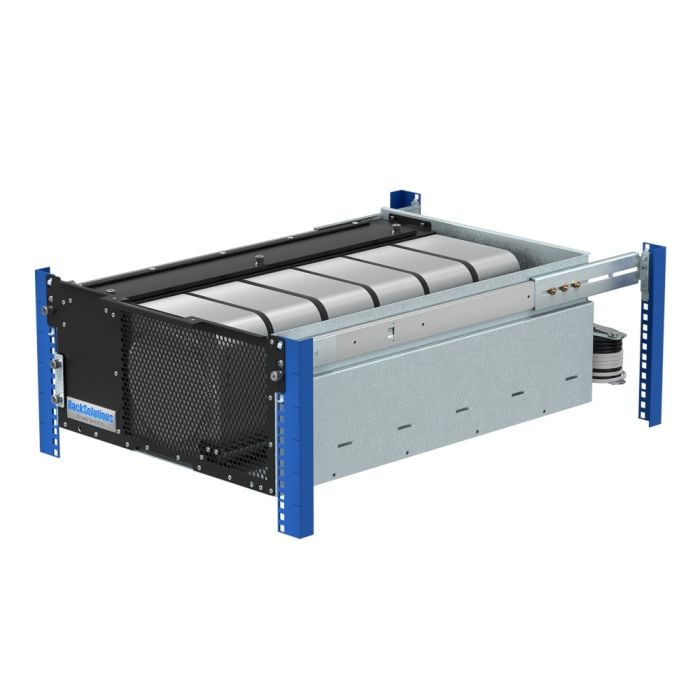

5U HyperShelf for 6 Apple Mac Studio

As low as $909.99
In stock

Rack mount up to 6 Mac Studios per shelf

  • Increases operational efficiency with limited space
  • Integrated airflow ducting for optimal cooling and thermal efficiency
  • Supports more Mac Studios per rack than alternatives in the industry
  • No power button or port interference
  • 26" - 29.5" (660mm - 749mm) mounting depth range



HyperShelf for Apple Mac Studio Features

  • Rack mount 6 Mac Studios per 5 rack units of space
  • Extends out of the server rack for in-rack serviceability
  • Built-in cable management for tie points/pathways
  • Isolated intake and exhaust ports
  • Optional blanking plate to control and improve airflow



Contact us for custom mounts.



HyperShelves are equipped with a standard 6ft Fan Cable with a NEMA 5-15 plug to a Fan Terminal Receptacle. A 6ft Fan Cable with a IEC C14 plug to a Fan Terminal Receptacle (SKU:100-9043) can be purchased separately from RackSolutions. An adapter may be required to accommodate different plug types. RackSolutions does not provide adapters for the HyperShelf.


Designed for enterprise deployments and data center environments, the Apple Mac Studio HyperShelf allows you to rack mount 6 mac studios per 5U of rack space. This rack mount shelf provides a lower installation cost per device that doesn’t interfere with the power button or peripheral ports. We built the Mac Studio HyperShelf to perfectly optimize space and airflow so that your mac studios will last and perform. You will be able to increase scalability and decrease deployment times.


Fully articulated cable management arm (desktop image)Fully articulated cable management arm (mobile image)

The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your mac studios in and out of the rack. The Mac Studio shelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.

integrated tie points (desktop image)integrated tie points (mobile image)

The Mac Studio HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

high quality ball bearing slide (desktop image)high quality ball bearing slide (mobile image)

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.


integrated airflow (desktop image)integrated airflow (mobile image)

For optimal cooling and thermal efficiency, the Mac Studio HyperShelf features integrated airflow for your mac studios. To prevent the air from mixing, the intake and exhaust separates the hot and cold air.

airflow management (desktop image)airflow management (mobile image)

The front airflow management of the rack mount shelf includes mounting holes for optional fans to be installed. The airflow management separates the hot and cold air, so you can be confident that your mac studios will not overheat.

included side panels (desktop image)included side panels (mobile image)

The rack mount shelf features an access door for accessing power buttons or peripheral ports.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 115-8652
  • Kit Contents:
    • (1) Hypershelf
    • (1) Cable Management Bar
  • Mounting Hardware:
    • (6) 8-32 x .500 Truss Head Screw

102-8807
  • Kit Contents:
  • (1) Mac Mini Blanking Panel
Compatibility Apple
Apple Compatibility A2615, A2901
Ingram Part Number 115-8652 - 06UV29
Fixed/Sliding Sliding
Finish Galvanized Steel
Hole Type Square
Material 16 GA Galvanized steel, 14 GA CRS, 16 GA CRS
Shelf Depth 25"-30" (635mm-762mm)
