Lockable Rackmount Drawers - 14"

Starting at $140.00

In stock
Grouped product items
Product Name SKU Qty

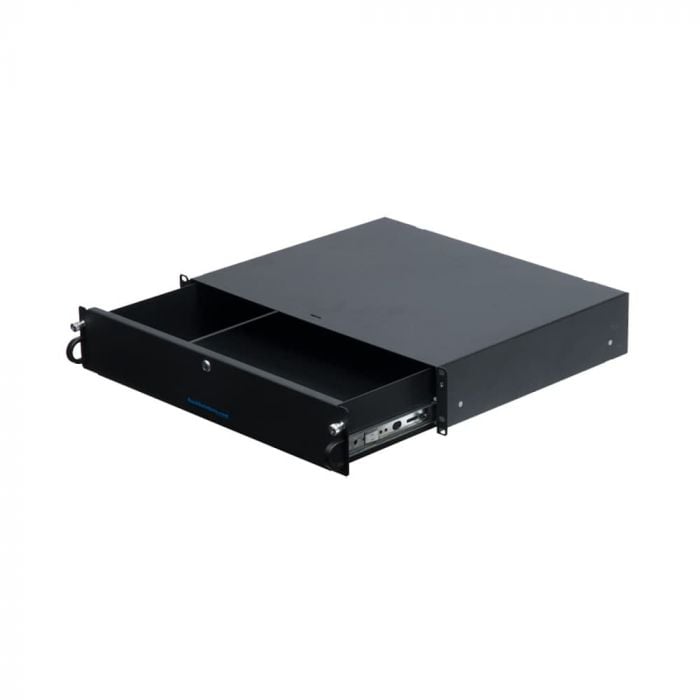

2U Lockable Rackmount Drawer
$140.00
2UDRAWER-162
3U Lockable Rackmount Drawers
$155.00
3UDRAWER-162
4U Lockable Rackmount Drawers
$170.00
4UDRAWER-162

Keep all your networking tools on-hand

  • Why put drawers in a server rack?
  • 2U, 3U, and 4U sizes
  • Store networking tools, patch cables, and manuals
  • Lock keeps equipment secure
  • Cable access holes in rear
  • High quality ball bearing slides
  • Up to 1,500 cubic inches of storage
  • 100 lb (45 kgs) weight capacity

The RackSolutions Lockable Rackmount Drawers provide a secure enclosure to store any equipment you would need on-hand for your data centers, such as networking tools, mice, software, manuals, and spare cables. This rack-mountable drawer is available in three different sizes ranging from 2U to 4U. The drawers extend from the rack on high-quality ball bearing slide rails. The 14" version is perfect for punch down tools, cable testers, USB drives, and cable crimpers. Rear access holes allow cables to be routed to any equipment that might be stored in the drawer. An integrated lock keeps all of your stored equipment safely stored in your rack.

Other storage options are available, including an open-faced and lockable rack-mounted storage boxes.

More Information
Assembly Notes Phillips Head Screwdriver Required
Dimensions 2U Dimensions (W x H x D):
19" x 3.45" x 14.25" (483 mm x 88 mm x 362 mm)
3U Dimensions (W x H x D):
19" x 5.2" x 14.25" (483 mm x 132 mm x 362 mm)
4U Dimensions (W x H x D):
19" x 6.95" x 14.25" (483 mm x 177 mm x 362 mm)

Weight Capacity: 100 lbs (45 kgs)
Cable Access Hole: 1.25" (32 mm)
Inside Width: 16.63" (422 mm)
Drawer Extension: 9.54" (242 mm)
Finish Black, textured powder coat
RoHS Compliant Yes
Included Hardware Assembly Components:
  • (1) Storage Box
  • (2) Keys Included

Rackmount Hardware:
  • (8) 12-24 Nuts
  • (8) 10-32 Pan Head Screws
  • (8) 12-24 Pan Head Screws
  • (8) 12-24 Cage Nuts
Amazon ASIN 2UDRAWER-162 = B0035B04ZM
3UDRAWER-162 = B0046SNH6Q
4UDRAWER-162 = B00BFTK7WG
TAA Compliant Yes
