Apple Mac Mini Rackmount Shelf

As low as $104.99
Out of stock

Rack Mount up to 4 Mac Minis per Shelf

  • Integrated airflow ducting for optimal cooling and thermal efficiency
  • Supports more Mac minis per rack than alternatives in the industry
  • Increases operational efficiency with limited space
  • Rack mount your devices on a 2 post or 4 post rack
  • Compatible with 2010-2023 Apple Mac minis

See "Additional Information" for compatibility.

ROHS Badge (desktop image)ROHS Badge (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

1U Mini Rack Access Tool-Less Shelf for Four Apple Mac Mini with USB  | 112-5541

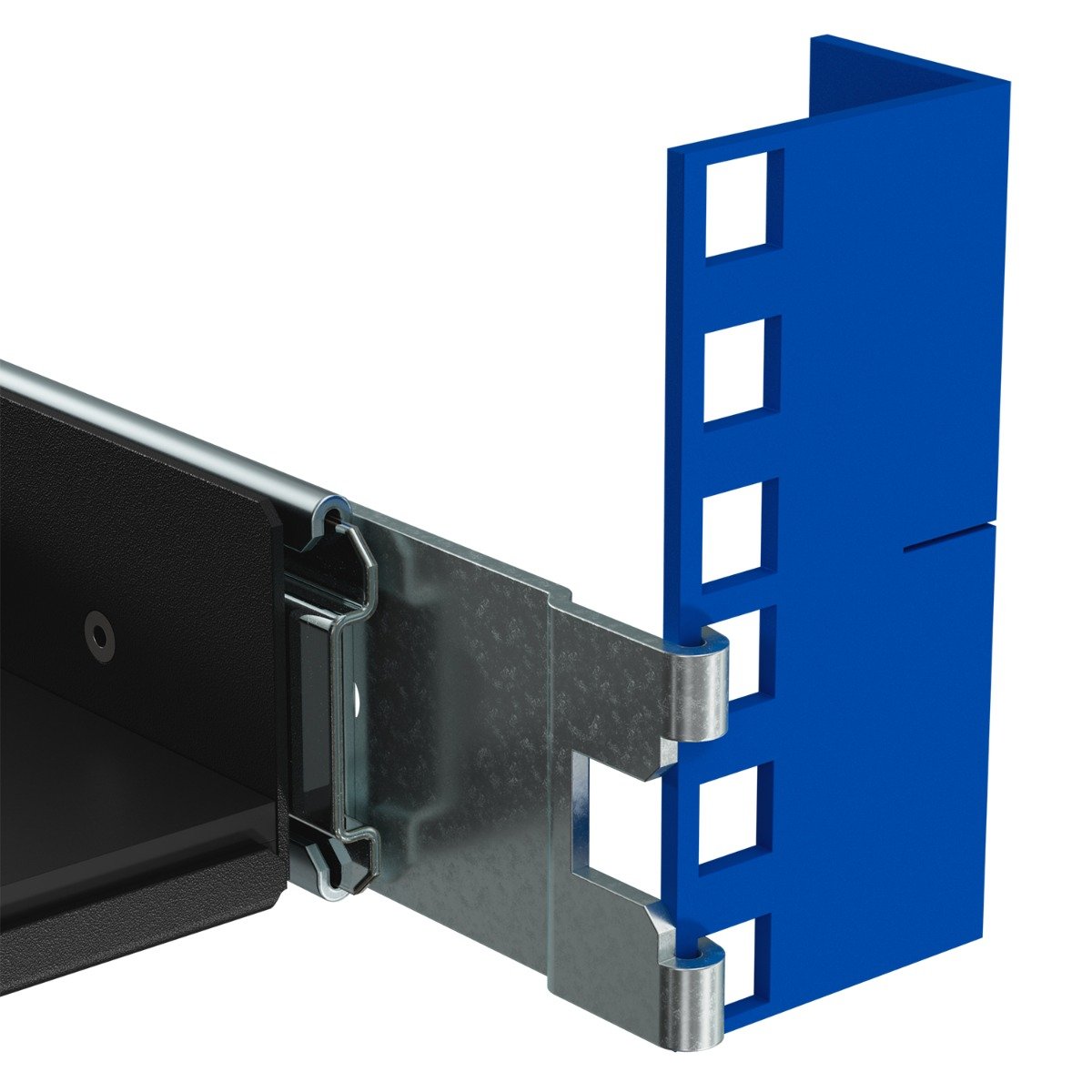

The Mini Rack Access is an ideal solution to create a mac mini power rack. In less than 1U of rack space, you can rack mount up to 4 Mac minis in a standard 19” 4 post server rack rack. No tools are required for installation of the sliding rack mount shelf. The four USB ports on the front of the shelf allows for easy access to each Mac mini.This sliding rack mount shelf works with standard mounting depth server racks that have square holes.

The design of the shelf allows airflow from the front of the rack to exhaust directly to the rear of the rack shelf without trapping them in hot air. The temperature will stay cool even when the Mac mini shelf is mounted between two other components. The layout of the Mini rack allows cables from the front Mac minis to be routed down the center of the rack.

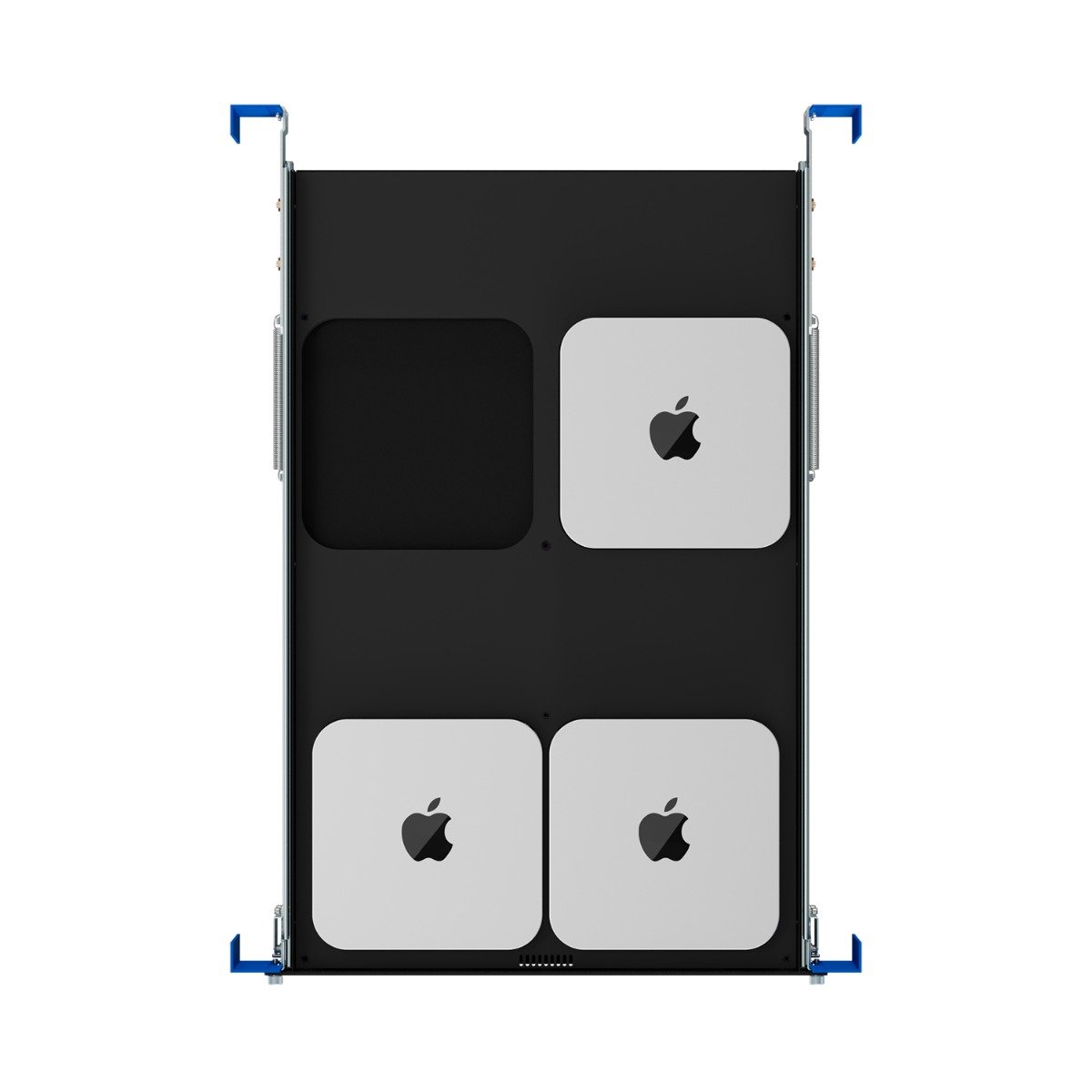

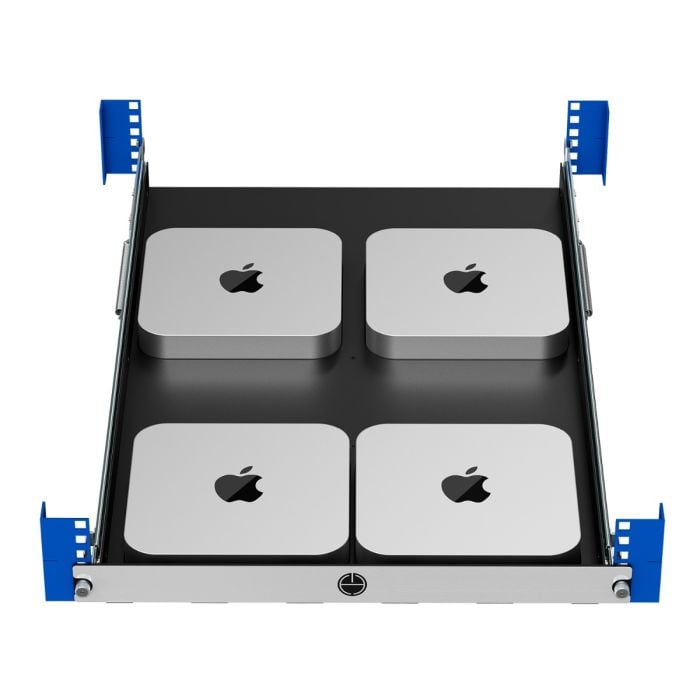

1U Mini Rack Tool-less Dry Sliding Shelf for Four Apple Mac Mini | 112-4901

The 1U Mini Rack Tool-less Dry Sliding Shelf allows you to mount your Mac mini devices in a standard 19" 4 post rack enclosure. In less than 1U of space, up to 4 Mac minis can be installed on the sliding shelf with no tools necessary. This shelf does not include USB ports.

The design of the airflow ducting ensures that all Mac minis receive cool air from the front of the rack and that the exhaust is vented directly to the rear. Cool air is directed through four openings below the faceplate to the front and rear Mac minis. The cool air is separated by a base that also does double-duty as a Mac mini rack tray. An additional inlet directs cool air above the Mac minis to cool the chassis and force the warmer exhaust air to the rear of the Mac mini rack.

Mini Rack Duo Shelf | 107-5735

The Mini Rack Duo Shelf is designed for 19-inch server racks in a homelab, small studio, or data center environments. In less than 1U of space, up to 2 Mac minis can be installed on the relay shelf with no tools necessary. This rack shelf is ideal for virtual systems, server clusters, render farms, MacOS servers, and developers using Apple's Developer Transition Kit running the A12Z SoC. The shelf mounts cantilever to 4-Post racks and cabinets, or 2-Post relay racks. To ensure that each Mac mini is in place, the shelf features laser cut acrylic cutouts.

This 2 post rack shelf features a passive ventilation system designed to isolate hot and cold aisles in large data center environments. The shelf's front air intake moves cool air from the front and moves it through the lower chamber on the shelf and to the rear of the rack where it is ventilated out along with the Mac Mini's exhaust.

More Information
Country of Manufacture United States
Included Hardware 107-5735
  • Kit Contents:
    • (1) Shelf
  • Mounting Hardware:
    • (6) 8-32 x .250 Flat Head Screw
    • (5) 10-32 x .500 Pan Head Screw
    • (5) 12-24 x .500 Pan Head Screw
    • (5) 12-24 Square Nut
    • (5) 12-24 Cage Nut
Apple Compatibility A1347, A1993, A2348, A2686, A2816
Synnex Part Number 112-4901 - 4660669
112-5541 - 5094001
107-5735 - 5738817
Ingram Part Number 112-4901 - 2LZ699
112-5541 - 2LZ700
107-5735 - 7BC193
Equipment Depth

112-4901 | 112-5541

  • 17.75" (451mm)

Shelf Type Solid
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area

112-4901 | 112-5541

  • 27.14" (689.36mm) x 16.99" (431.55mm) = 461.10" (11,711.94mm)


  • 17.70" (449.58mm) x 9.08" (230.63mm) = 160.72" (4082.29mm)
Finish Black, Powder Coat
Mounting Depth Range

112-4901 | 112-5541

  • 27.77- 29.97"


  • 9.08"
Weight Capacity

112-4901 | 112-5541

  • 45 lbs capacity


  • 30 lbs capacity
Rack Units

112-4901 | 112-5541

  • 1U


  • 1U
Overall Installation Depth

112-4901 | 112-5541

  • 24" (610 mm)


  • 9.1" (231mm)
Hole Type

112-4901 | 112-5541

  • Square Hole


  • 10-32 Threads, 12-24 Threads, Square Hole
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes

Compatible with:

  • Mac mini (Mid 2010)
  • Mac mini (Mid 2011)
  • Mac mini (Late 2012)
  • Mac mini (Late 2014)
  • Mac mini (2018)
  • Developer Transition Kit (DTK) with A12Z SoC
  • Mac mini with Apple's M1 Chip (Late 2020)
