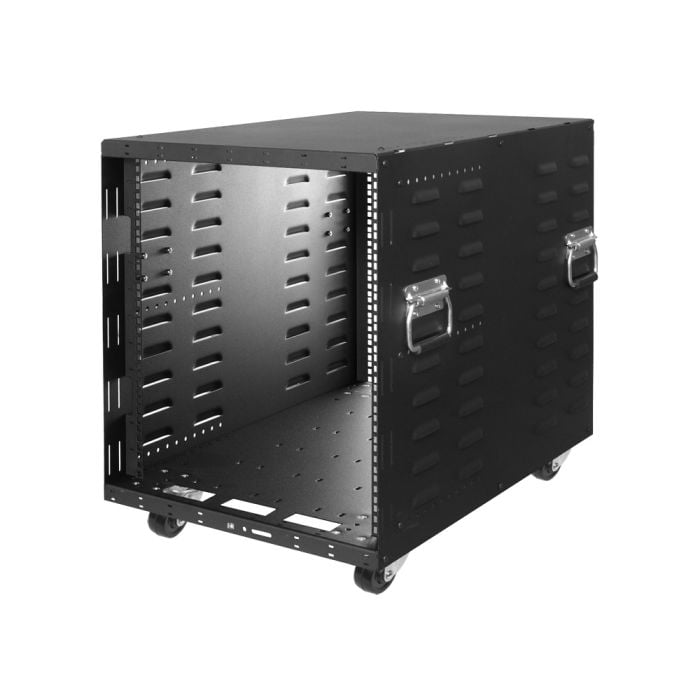

12U Portable Server Rack
12U rack for Server, PC, NAS
- Adjustable depth from 19”-29” (483-737 mm)
- Compatible with Dell, HP, IBM, Apple
- Universal square holes
- Lock position is available for padlock
Secure, Portable, and Adjustable
- Optional heavy duty caster and handles
- Optional front and rear covers
- Casters and labeled U Markings included
- Covers can be secured with separate padlock
RackSolutions 12U Portable Server Rack is engineered to provide individuals with mobility and accessibility. Our portable rack is compatible with any standard 19” rack equipment including Dell, HP, IMB, and Apple servers. The self-squaring design features an adjustable mounting depth of 19”-29”, 540 lbs maximum capacity, and includes ball-bearing casters.
Prevent unwanted access and protect your equipment with lockable door covers. The covers are designed with 63% perforation required by OEM manufacturers. The front and rear door covers can be secured with a padlock for additional security. Padlock is not included and must be purchased separately. The padlock must have a 3/16" diameter shackle with 1/2" horizontal clearance. The slot for the optional lock is located on the bottom piece of the rack. When attaching the door covers, the padlock must be looped under and over the 2 holes (slots).
Constructed with 16 GA and 13 GA steel and finished with a black powder coat, our portable server rack is flat-packed for easy storage. The cabinet top also supports monitors, printers, and other equipment. The sides are casted with louvers to improve cooling. Optional heavy duty handles on the side, front, and rear covers. All necessary tools and hardware are included for assembly. Our 12U portable server racks have approximately 20 minutes of assembly time.
|Rack Type||4 Post Rack, Enclosed|
|Hole Type||3/8" EIA square holes|
|Rack Internal Width||EIA 19" Standard Rack|
|Dell Part Number||RACK-117-12 - A8512541
RACK-117-COVERS - A1263898
RACK-117-MOBILE-KIT - A1470577
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||RACK-117-MOBILE-KIT - 4614654 RACK-117-COVERS - 4614607 106-2378 - 5178594 RACK-117-12 - 4614606|
|Ingram Part Number||RACK-117-MOBILE-KIT - N54325 RACK-117-COVERS - N54324 106-2378 - TW1726 RACK-117-12 - D34826|
|Tech Notes||Unit weight: 65 lbs|
|Included Hardware||(18) 10-32 screws
(18) 10-32 cage nuts
|Rack Height ( U Height)||12U|
|Finish||Black, textured powder coat|
|Rack Post Shape||L-Form (opens in a new tab)|
|Assembly Notes||All required tools and hardware are included
Assembly time: approximately 20 minutes
|Mounting Depth Range||19" - 29" (483 - 737 mm)
Adjustable in 1" increments (25 mm)
|Rack Doors||Optional covers have a 63% perforation required by all OEM equipment manufacturers.
The non-hinged covers are easily secured with a thumbscrew.
The covers can be secured with a padlock if additional security is required (padlock is not included).
NOTE: Padlock must have 3/16" diameter shackle with 1/2" horizontal clearance.
Recommended product: MasterLock #105 (opens in a new tab)
|Rack Outside Dimensions||H x W x D
Standard caster, without covers: 25" x 21.5" x 31" (635 x 546 x 787 mm)
H x W x D
Mobile kit with covers: 26.6" x 22.2 x 40" (674 x 564 x 1016 mm)
|Rack Casters||Standard casters included
Optional, heavy duty casters
|Rack Ventilation||63% perforation on covers
|Rack Sides||Louvered, non-removable|
|Amazon ASIN||RACK-117-12 = B00UVKCMTG|
