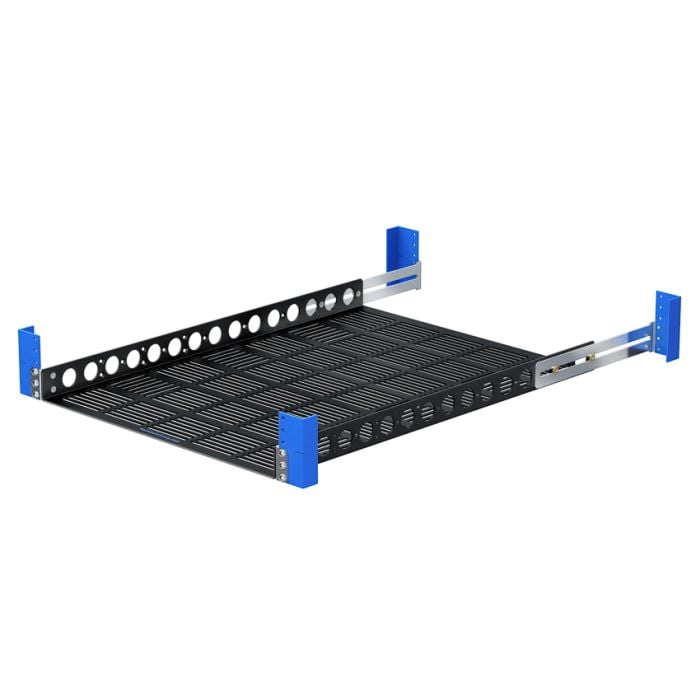

Fixed Rack Shelf

Starting at $94.99

In stock
Grouped product items
Product Name SKU Qty
Fixed Rack Shelf - 24" Depth
Fixed Rack Shelf - 20" Depth

Fixed Shelf for Any Equipment

  • Ideal for tower, printer, desktop
  • US Steel shelf construction
  • Includes anti-slip mat
  • 2Post flush or center mount
  • Alternative to rails for servers that are not rack mountable

Fits Any 2Post, 4Post Rack

  • Capacity: 150 lbs (68 kgs)
  • Shelf depths: 1USHL-108 24" (610 mm) or 108-2272 20" (508 mm)
  • 1USHL-108 24" shelf - adjustable mounting from 3 - 30" (279 - 762 mm)
  • 108-2272 20" shelf - adjustable mounting from 3 - 25" (279 - 635 mm)
  • Fits square, round, threaded holes

See "Additional Information" for Technical Specifications.

The RackSolutions fixed rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP, and IBM. This rack shelf can be installed into racks with square, round or threaded holes. Rackmount equipment weighing up to 150 lbs can be installed using this rack shelf when installed in a 4 post rack. The rack shelf is 24" deep 1USHL-108 (There is also a 20" deep option 108-2272) and can be installed in server racks with installation depths up to 30" and in multiple configurations. All needed mounting hardware is included with both versions of the 1u server rack shelf.

1U Cantilever 2 Post Rack Shelf Feaures1U Cantilever 2 Post Rack Shelf Feaures

Universal Mounting Options

RackSolutions 1U Cantilever 2 Post Rack Shelf is avaliable vented or solid with flanges up or down.

1U Cantilever 2 Post Rack Shelf Feaures1U Cantilever 2 Post Rack Shelf Feaures

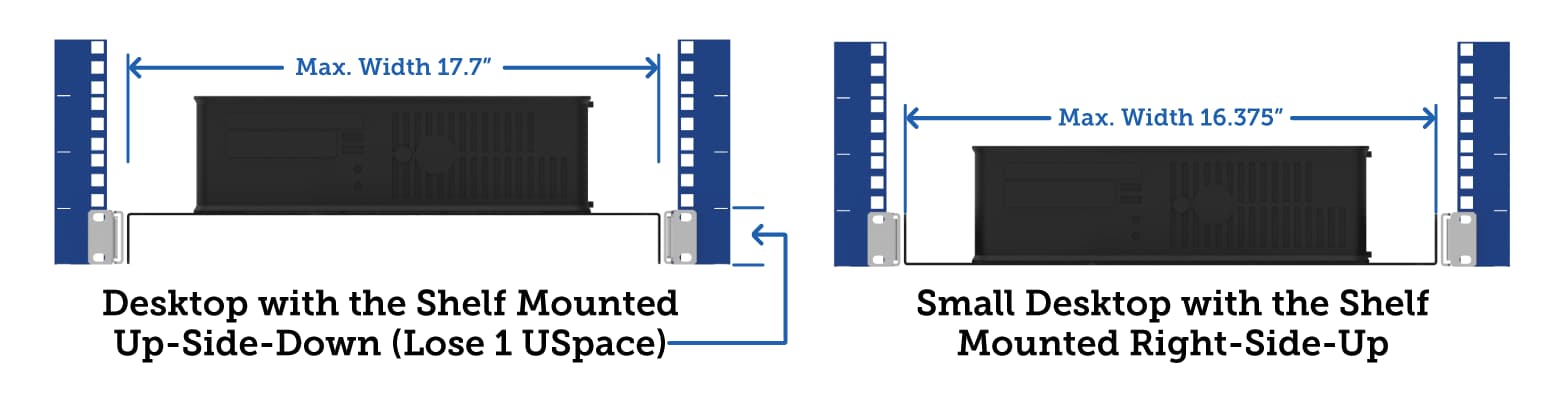

Shelf Can Mount Upside Down

Mount up-side-down for maximum width or right-side-up for minimum U space.

More Information
Visbility Bypass Enabled Yes
Dell Part Number 108-2272 - A9368024
1USHL-108 - A7455372
Assembly Notes Partially assembled
Equipment Depth Shelf depth is 24.0" (610 mm). Equipment can be deeper
Shelf depth is 20.0" (508 mm). Equipment can be deeper
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 1USHL-108 17.1" x 24" (435 x 609.6 mm)
108-2272 17.1" x 20" (435 x 508 mm)
Finish Black, textured, powder coat
Mounting Depth Range 11 - 30" (279 - 762 mm) for 24" shelf
11 - 25" for 20" shelf (279 - 635 mm)
Included Hardware 10-32 and 12-24 screws
Cage nuts are provided for square hole racks
Front brackets: 2 adjustable position front rack flanges
Rear slide brackets: 2 adjustable position rear rack flanges
Weight Capacity This shelf is capable of being installed right side up or upside down, depending on the equipment width.
    150 lbs (68 kgs) for 4Post mounting
    100 lbs (45 kgs) for 2Post, center mounting
    75 lbs (34 kgs) for 2Post, flush mounting
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth Minimum overall depth is 24" 1USHL-108
Minimum overall depth is 20" 108-2772
Maximum overall depth is the same as the rack's mounting depth
Material 14 Gauge U.S. Steel
Amazon ASIN 108-2272 = B00UVK8RPO
1USHL-108 = B00UVKE3V6
TAA Compliant Yes
RoHS Compliant Yes
