Reducer Brackets 23" to 19" & 24" to 19"

In stock
Grouped product items
Product Name SKU Qty
2U, 24" to 19" Joggled Reducer Brackets (pair)
$24.99
2UBRK-24J-PAIR
2U, 23" to 19" Joggled Reducer Brackets (pair)
$19.99
2UBRK-23J-PAIR

Converts 19" equipment to fit 23 - 24" racks

  • Does not change mounting depth of rack
  • "Joggled" bracket type keeps mounting flush with the frame
  • Capacity, 50 lbs (22.7 kgs) per rack unit
  • P/N: 2UBRK-23J-PAIR reduces width of 23" rack to 19"
  • P/N: 2UBRK-24J-PAIR reduces width of 24" rack to 19"
  • Single order comes with 2 brackets

Fits any 4Post, 2Post rack

  • Compatible with Square, round holes
  • Works with Dell, HP, IBM, equipment

NOTE: Hardware not included. Rackmount hardware can be purchased here.

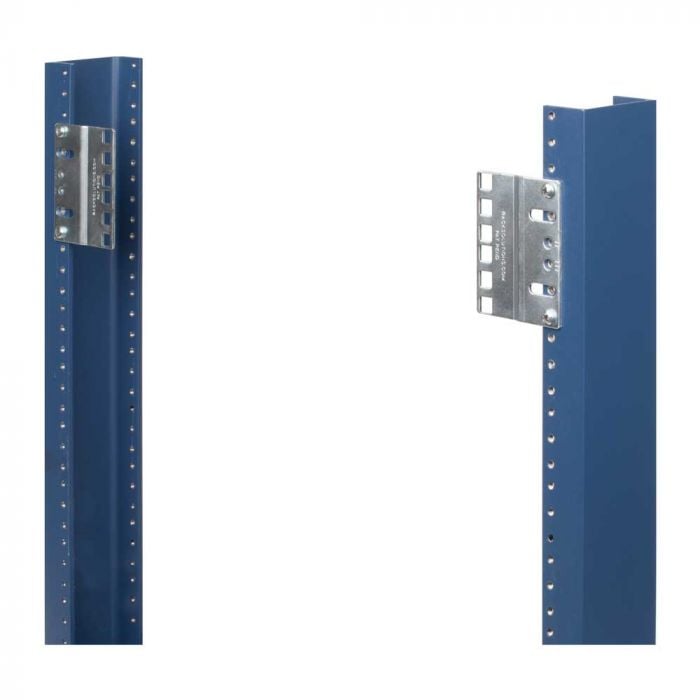

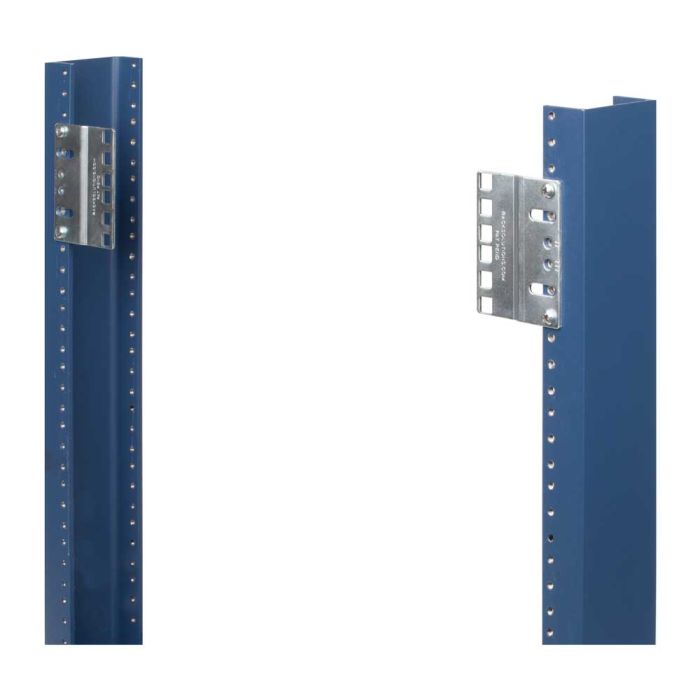

RackSolutions' reducer brackets allow rack-mount equipment designed for 19" (483 mm) racks to be properly installed into 24" (609 mm) and 23" (584 mm) racks. The 24" (609 mm) and 23" - 19" (584 mm - 483 mm) reducer bracket provides EIA-D standard square holes for installing OEM rails into 24" (609 mm) and 23" (584 mm) round-holed racks. This "joggled" type bracket has a slight bend in the material that keeps whatever you are mounting flush with the server frame, unlike flat brackets which cause items to stick out slightly.

RackSolutions Reducer BracketRackSolutions Reducer Bracket

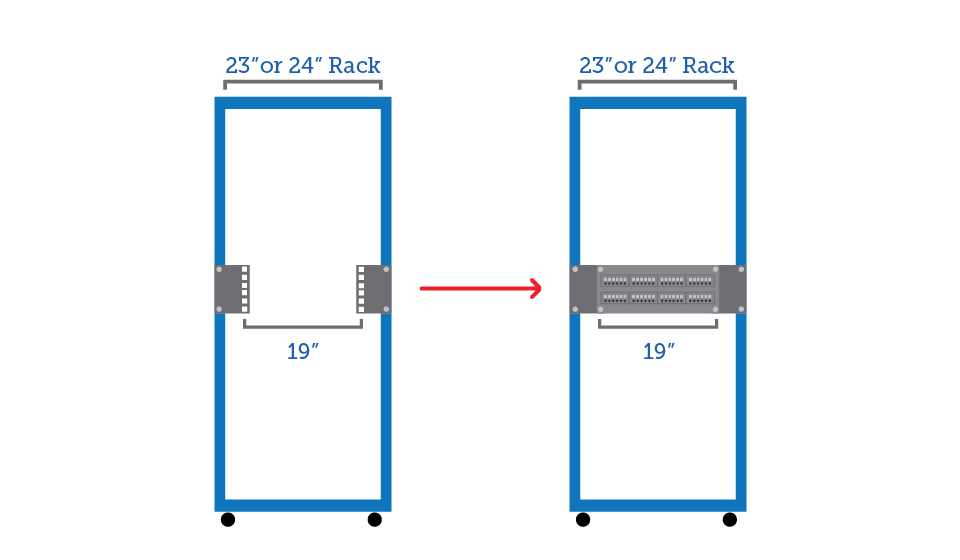

RS-Reducer Bracket

The RackSolutions Reducer bracket allows 19" equipment to be mounted in 23" or 24" racks

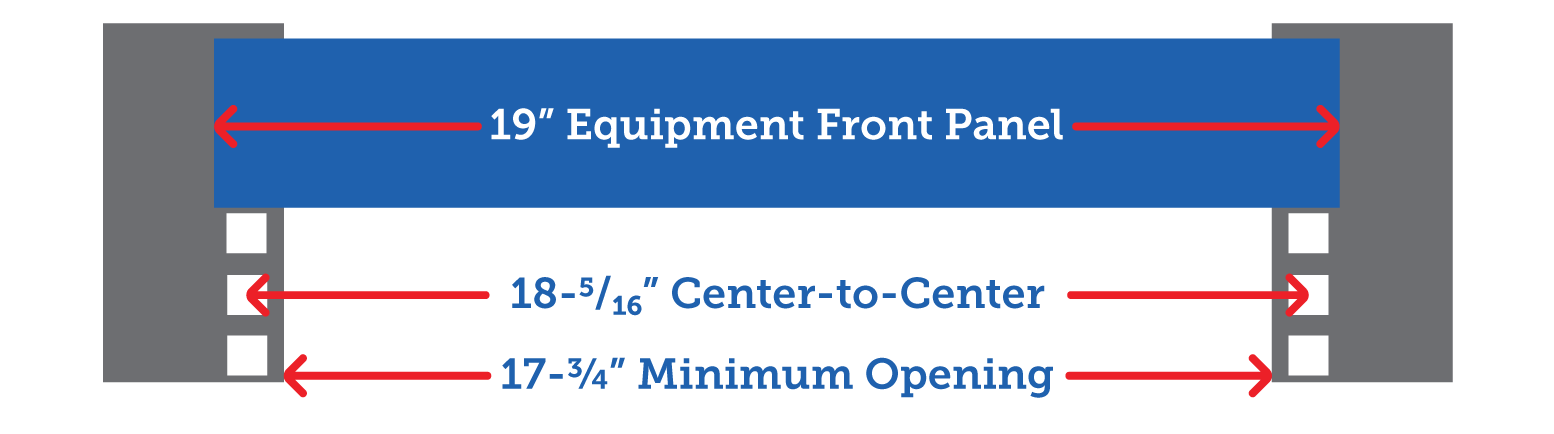

Defining 19 Inch RackDefining 19 Inch Rack

Why 19" Conversion

19" server rack is the standard. Most OEMs made equipment that mounts in 19" racks. Some 2 post racks can be 23" or 24" wide and our brackets will allow for 19" equipment to be mounted normally.

More Information
Tech Notes 50 lb (22.7 kgs) weight capacity per rack unit
RoHS Compliant Yes
Hole Type Compatible with all EIA-D standard round hole racks or square hole racks with cage nuts
Amazon ASIN 2UBRK-23J-PAIR = B00UVK7S2M
2UBRK-24J-PAIR = B00UVK7XHM
TAA Compliant Yes
