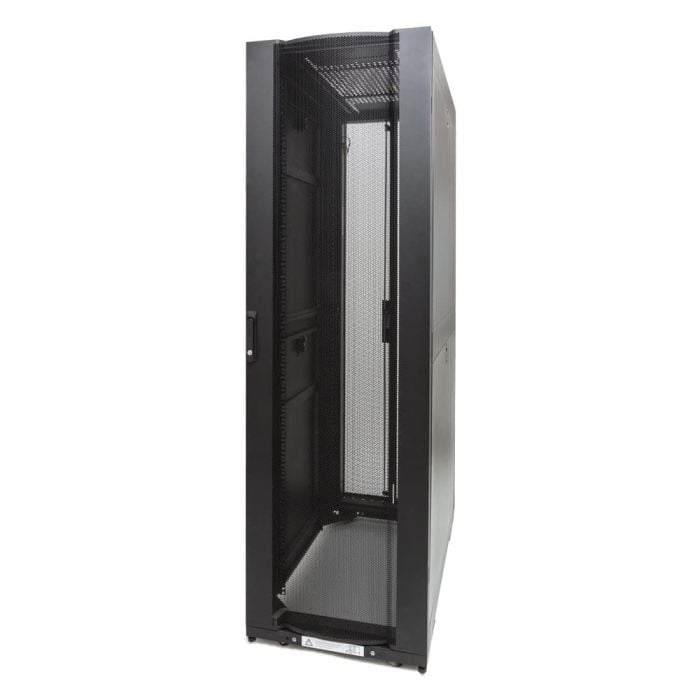

Server Rack Cabinet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Be the first to review this product

As low as $1,324.99

In stock

This Product Ships Freight

Details

24U-48U of rackable space

Overall rack depth 1070 mm or 1200 mm
1070 mm rack: Adjustable mounting depth up to 890 mm
1200 mm rack: Adjustable mounting depth up to 1020 mm
Universal square holes
Dell, HP, IBM compatible

Designed for Data Centers

Doors and sides are removable, lockable
3000 lbs. (1360 kgs) capacity
Casters, leveling feet included
Cable pass-throughs in top & bottom of rack
(2) Vertical cable management bars included

The RackSolutions Server Rack Cabinets are compatible with Dell, HP and IBM servers and have a footprint that is the same size as a European data center tile (600 mm). The 800 mm wide rack is also available for a network cabinet. Our cabinets are the EIA standard 19" server rack. The sizes are available in 24U, 42u and 48U to get the most height out of your data center space. All of these rack options come standard with 2 vertical cable management bars that are the same height of the rack.

Fantray

The fan tray is powered with a standard 110 power cable that may be plugged into a power strip or PDU.

Vertical Cable Management Tray

These trays run vertically from the top to the bottom of the server cabinet and allow you to route cables to data switches or UPS devices in a structured manner.

Rack-151

151SW

151DC

Available Heights

18U, 22U, 27U, 32U, 37U, 42U

24U, 32U, 37U, 42U, 48U

16U, 42U, 45U, 48U

Available Depths

39" (1000mm)

42", 48" (1070 mm, 1200mm)

Available Widths

23.6" (600mm)

23.6", 31.5" (600mm, 800mm)

24", 30" (610mm, 762mm)

Weight Capacity (Static)

1680 lbs

3000 lbs

Rack and Stackable

—

✔

19" EIA Square Mounting Holes

✔

Adjustable Mounting Depth

✔

Fully Enclosed Rack with Perforated Locking Doors

✔

(2) Vertical Cable Managment Bars Included

—

✔

Customizable Configuration

—

✔

Additional Information

More Information
BABA Compliant	No
RoHS Compliant	Yes
TAA Compliant	No
UL Compliant	No
ETL Compliant	No
Country of Manufacture	United States
Included Hardware	(2) keys
Rack Type	4 Post Rack, Enclosed
Dell Part Number	151SW-4562 - AB419957 151SW-4563 - AB304910 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number	151SW-4560 - 5399487 151SW-4562 - 6358398 151SW-4563 - 4729080 151SW-4565 - 5334347 151SW-4566 - 6197936 151SW-4567 - 5334342 180-4961 - 5401933
Ingram Part Number	151SW-4560 - 01QY31 151SW-4562 - 8PB988 151SW-4563 - 7R9181 151SW-4565 - 4T0010 151SW-4566 - 4F2098 151SW-4567 - 4F2099 180-4961 - 5JV890
Finish	Black textured powder coat

Instructions & Downloads

Download Server Rack Cabinet Data Sheet (opens in a new tab)

Download 800mm Server Rack Cabinet 42-48U (151SW) Dimensional Drawings (opens in a new tab)

Download 600mm Server Rack Cabinet 42-48U (151SW) Dimensional Drawings (opens in a new tab)

Download 600mm Server Rack Cabinet 24-42U (151SW) Dimensional Drawings (opens in a new tab)

Download Brush Panel Insert (180-5336) Installation Placement Guide (opens in a new tab)

Rack Unit Converter: How To Convert Rack “U” Height (opens in a new tab)

What is a Data Center Rack? (opens in a new tab)

Benefits of Secure IT Equipment (opens in a new tab)

42U Server Rack Enclosure (opens in a new tab)

Server Rack Buying Guide: Everything You Need To Know (opens in a new tab)
