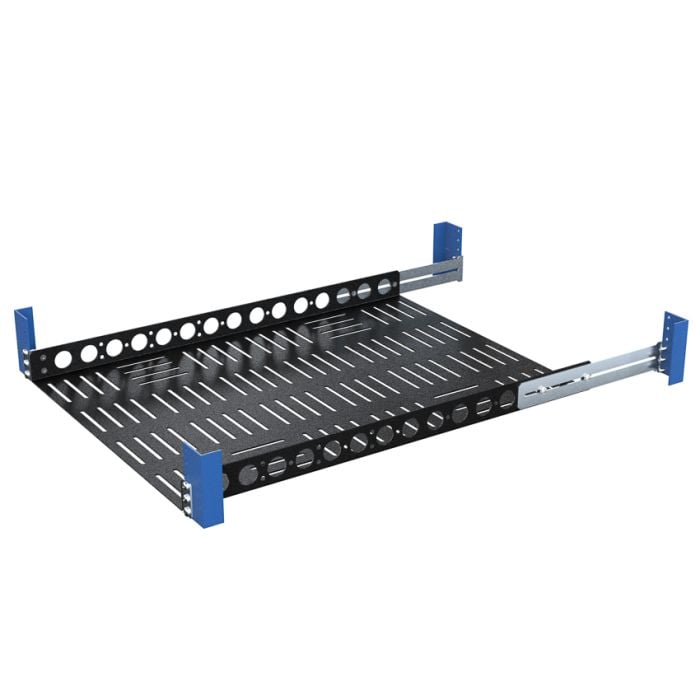

1U Light Duty Fixed Shelf 24in Depth

In stock

Fixed Shelf for Server Rack Equipment

  • US Steel shelf construction
  • Mounts 2Post flush or center mount
  • Includes anti-slip mat
  • Ideal for server towers, printers, and desktop PCs

Fits Any 2Post orĀ 4Post Rack

  • Weight Capacity: 100 lbs (45.36 kgs)
  • Shelf depth: 24" (610 mm)
  • Adjustable mounting depth from 3 - 29.75" (76 - 755mm)
  • Compatible with square, round, threaded holes

See "Additional Information" for Technical Specifications.

RoHS-Symbol (desktop image)RoHS-Symbol (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

RackSolutions Light Duty server rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP, and IBM. Though it is a “light duty” shelf compared to our other offerings, a 100 lb weight capacity can carry most 2U servers, and larger equipment like printers, desktop PCs and universal power supplies.

The vented design creates airflow and is also useful as a cable tie pass through. Our anti-slip mat is great for keeping equipment from sliding while pulling out the shelf, and still has ventilation.

How to mount server rack shelf (desktop image)How to mount server rack shelf (mobile image)

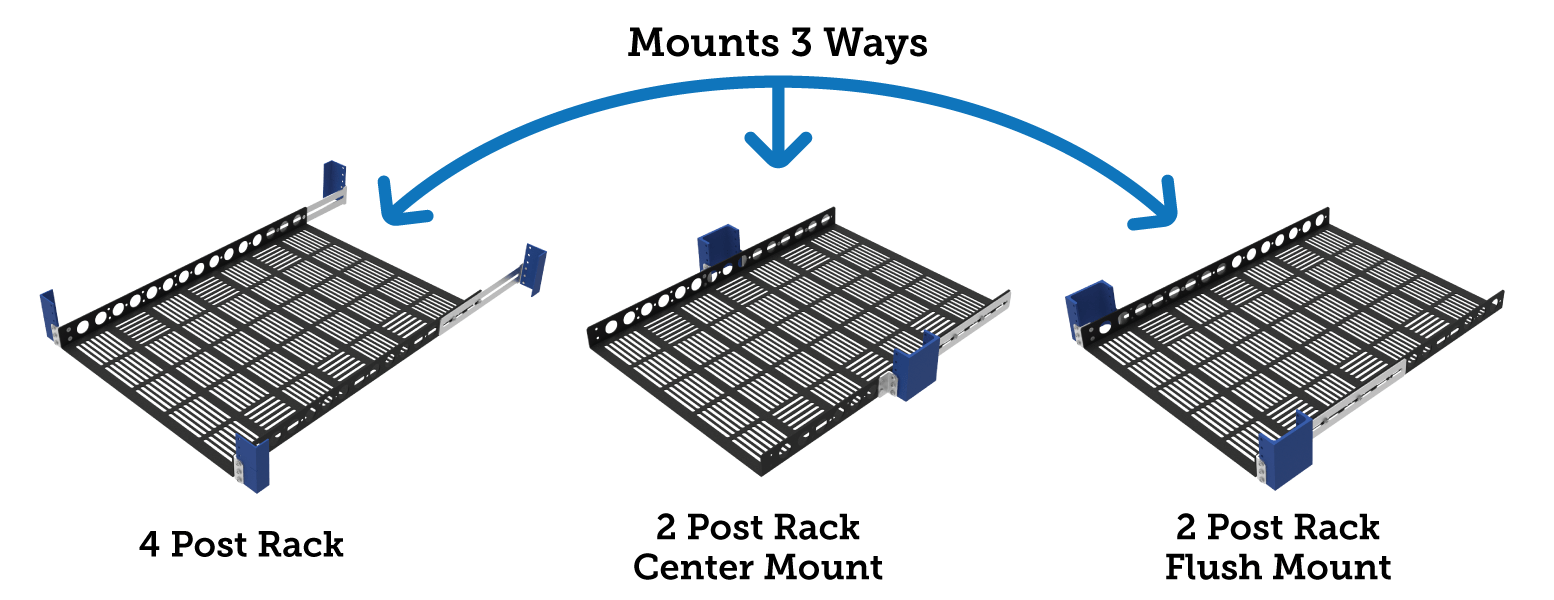

Universal mounting options

RackSolutions 1U Cantilever 2 Post Rack Shelf is avaliable vented or solid with flanges up or down.
Mount inverted server rack shelf (desktop image)Mount inverted server rack shelf (mobile image)

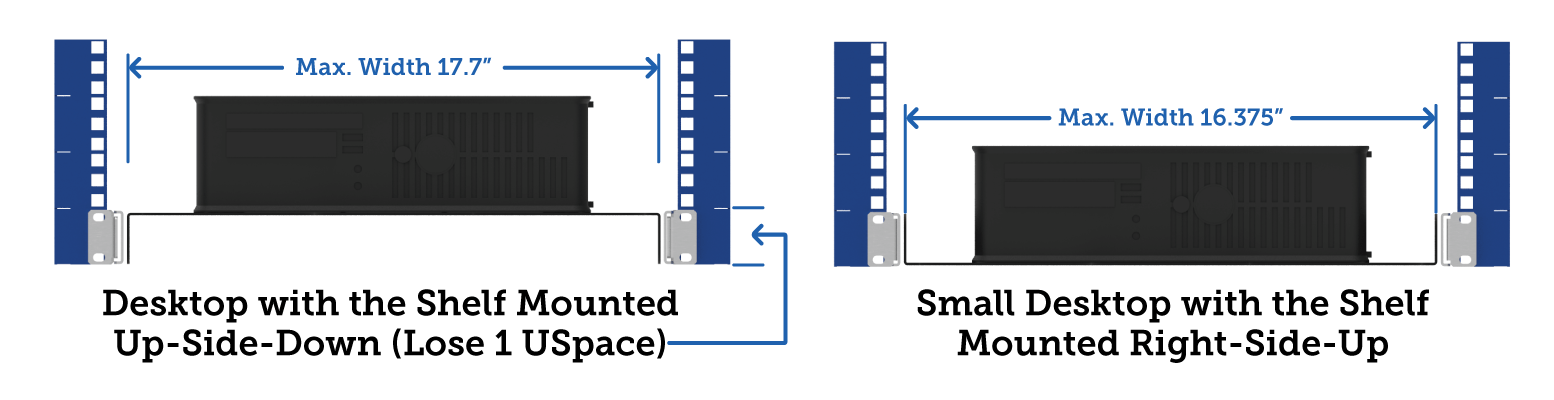

Shelf can mount upside down

Mount up-side-down for maximum width or right-side-up for minimum U space.
Light Duty Server Rack Shelf 24"Light Duty Server Rack Shelf 24"


Light Duty

Weight Capacity
100 lbs.

Sliding / Fixed

Light Duty 23" Wide Server Rack ShelvesLight Duty 23" Wide Server Rack Shelves


Light Duty

Weight Capacity
100 lbs.

Sliding / Fixed

Heavy Duty 23" Wide Server Rack ShelvesHeavy Duty 23" Wide Server Rack Shelves


Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed

2U Fixed Heavy Duty Rack Shelf (desktop image)2U Fixed Heavy Duty Rack Shelf (mobile image)


Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed

2U Fixed Extreme Heavy Duty Rack Shelf (desktop image)2U Fixed Extreme Heavy Duty Rack Shelf (mobile image)


Extreme Heavy Duty

Weight Capacity
900 lbs.

Sliding / Fixed

More Information
Weight (lbs) 11.680000
Country of Manufacture United States
Included Hardware 108-4013
  • Kit Contents:
    • (1) Shelf
    • (2) Rear Brackets
  • Front Hardware Kit:
    • (4) 8-32 x .375 Flat Head Screw
    • (4) 8-32 Keps Nut
    • (2) Front Brackets
  • Rear Hardware Kit:
    • (4) 8-32 x .375 Flat Head Screw
    • (4) 8-32 Keps Nuts
  • Rear Mount 8x:
    • (8) 10-32 x .500 Pan Head Screw
    • (8) 12-24 x .500 Pan Head Screw
    • (8) 12-24 x Square Nut
    • (8) 12-24 x Cage Nut
Dell Part Number 108-4013 - A7779437
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 108-4013 - 4614581
Ingram Part Number 108-4013 - VU7458
Assembly Notes Partially assembled, hardware included.
Equipment Depth Shelf depth is 24.0" (610 mm). Equipment can be deeper
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 17.1" x 24" (435 x 609.6 mm)
Finish Black, textured, powder coat
Mounting Depth Range 3 - 29.75" (76 - 755mm)
Weight Capacity 100 lbs (45 kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth Minimum overall depth is 24"
Maximum overall depth is the same as the rack's mounting depth
Material 14 Gauge U.S. Steel
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes This shelf is capable of being installed right side up or upside down, depending on the equipment width.
100 lbs (45 kgs) for 4Post mounting
75 lbs (34 kgs) for 2Post, center mounting
50 lbs (23 kgs) for 2Post, flush mounting
