12U TechEdge Wall Mount Rack 18in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
$199.99
In stock
SKU
119-6040

Easily wall mount networking equipment

  • Mounting hardware included: (20) 12-24 screws, (20) cage nuts, (8) drywall anchors
  • Constructed of high quality 14 and 16 gauge steel
  • Corner brace attachments enhance stability
  • Black powder coat finish

Front mount up to 12U of rack equipment

  • Stud center mounting holes 16" apart
  • Self-squaring for easier installation
  • Mounting depth 18.05"
  • 200lb capacity
  • Square holed

RackSolutions TechEdge product line offers high-quality manufacturing in the USA at a low cost. Whatever your industry, we've got a TechEdge product with the quality you need, at an affordable price.

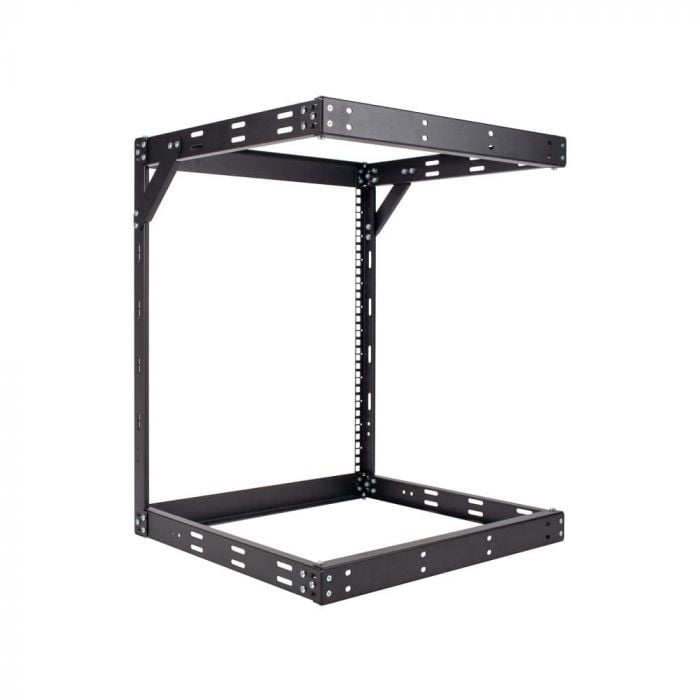

The 12U TechEdge WallMount Rack is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space where you need equipment to be secure and out of the way. The TechEdge 12U Wall Mount Rack is self-squaring for easier installation. Constructed from heavy-duty 14 and 16 gauge steel with a durable black powder-coated finish, the rack has a maximum load capacity of 200 pounds with a mounting depth of 18.05". Wall mounting stud holes are 16" apart located on the back of the rack. Lined with squared holes, the 12U TechEdge WallMount Rack is ready for cage nuts to be installed.

All mounting hardware is included: (20) 12-24 screws, (20) cage nuts, (8) drywall anchors.

TechEdge 12U Wall Mount Rack Top and Bottom Stud Center Mount (desktop image)TechEdge 12U Wall Mount Rack Top and Bottom Stud Center Mount (mobile image)

Stud Center Mounting 16" Apart

Located at the top of the rack are corner braces to enhance stability. The stud center mounts are located on the back of the rack marked 16" apart and eliminate the chances of bowed uprights while assembling.
RackSolutions TechEdge 12U Wall Mount Rack Self Squaring View 119-6040 (desktop image)RackSolutions TechEdge 12U Wall Mount Rack Self Squaring View 119-6040 (mobile image)

Self Squaring

The TechEdge 12U Wall Mount Rack is self squaring to ensure every bracket meets 90 degrees to create the perfect square frame.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 12.248000
Country of Manufacture United States
Included Hardware 119-6040
  • Kit Contents:
    • (2) Vertical Rack Posts
    • (4) Front-to-Rear Braces
    • (2) Front Width Brackets
    • (2) Rear Width Brackets
    • (2) Corner Brackets
  • Wall Mount Hardware:
    • (16) #8 - 1.250" Anchoring Screws
    • (16) Flat Washers
    • (8) Drywall Anchors
  • Assembly Hardware:
    • (52) 10-32 x .375 Pan Head Screw
    • (20) Locking Washers
    • (32) Kep's Nuts
    • (8) 8-32 x .250 Flat Head Screw
  • Rack Mount Hardware:
    • (8) 12-24 x .500 Pan Head Screw
    • (8) 12-24 x Cage Nut
Rack Type Wall Mount
Synnex Part Number 119-6040 - 6069018
Rack Height ( U Height) 12U
Finish Black powder coat
