TechEdge 2Post Relay Racks

As low as $249.99
In stock

NOTE: P/N 131-6513 and 101-6724 and an additional rack required for 2-Post to 4-Post conversion



Relay Rack Designed for Versatility

  • Universal square mounting holes
  • 1000 lb load capacity
  • Constructed from sturdy 13 GA steel
  • Tool-less Button-Mounting Holes for PDUs and vertical cable management
  • Self-squaring design for easy assembly
  • Caster kit add-on available for added mobility
121-6512-14 (desktop image)121-6512-14 (mobile image)

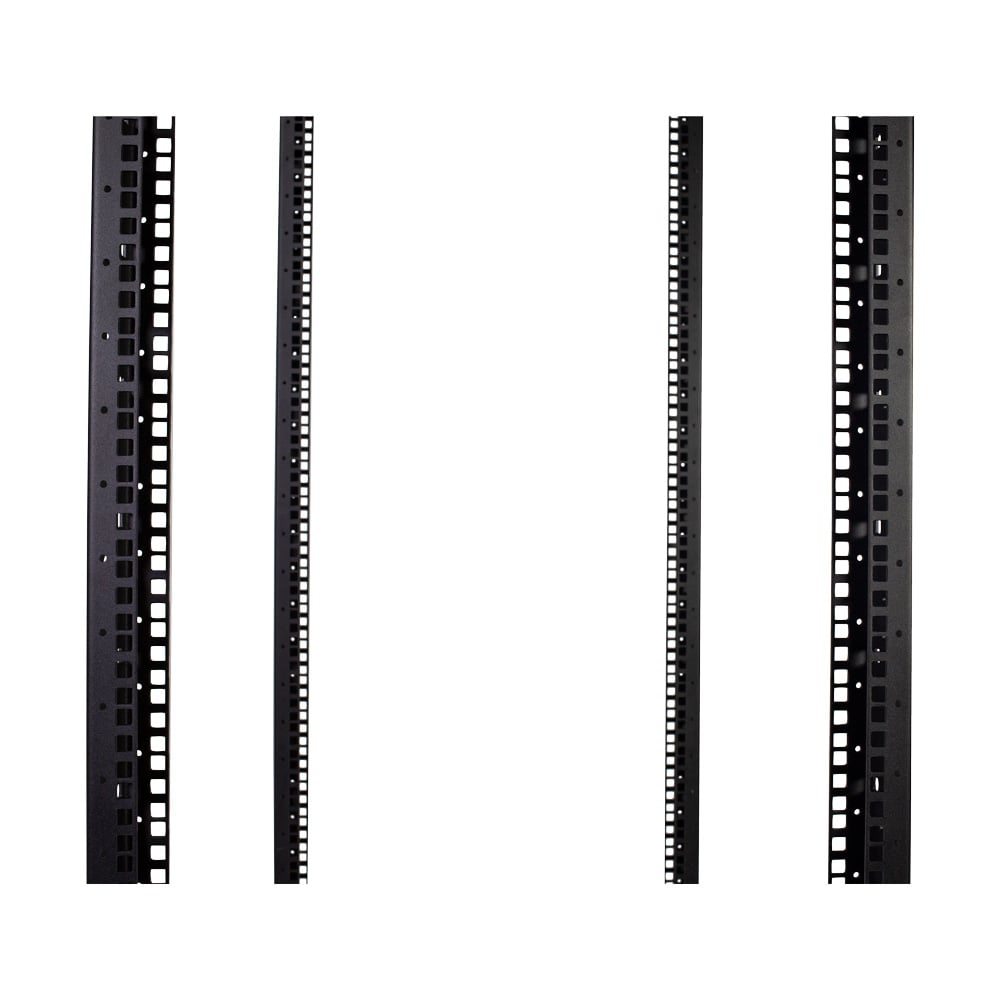

Universal Square Mounting Holes

Use any size of thread you need in your rack and never worry about stripping our your holes or losing U spaces.
121-6512-13 (desktop image)121-6512-13 (mobile image)

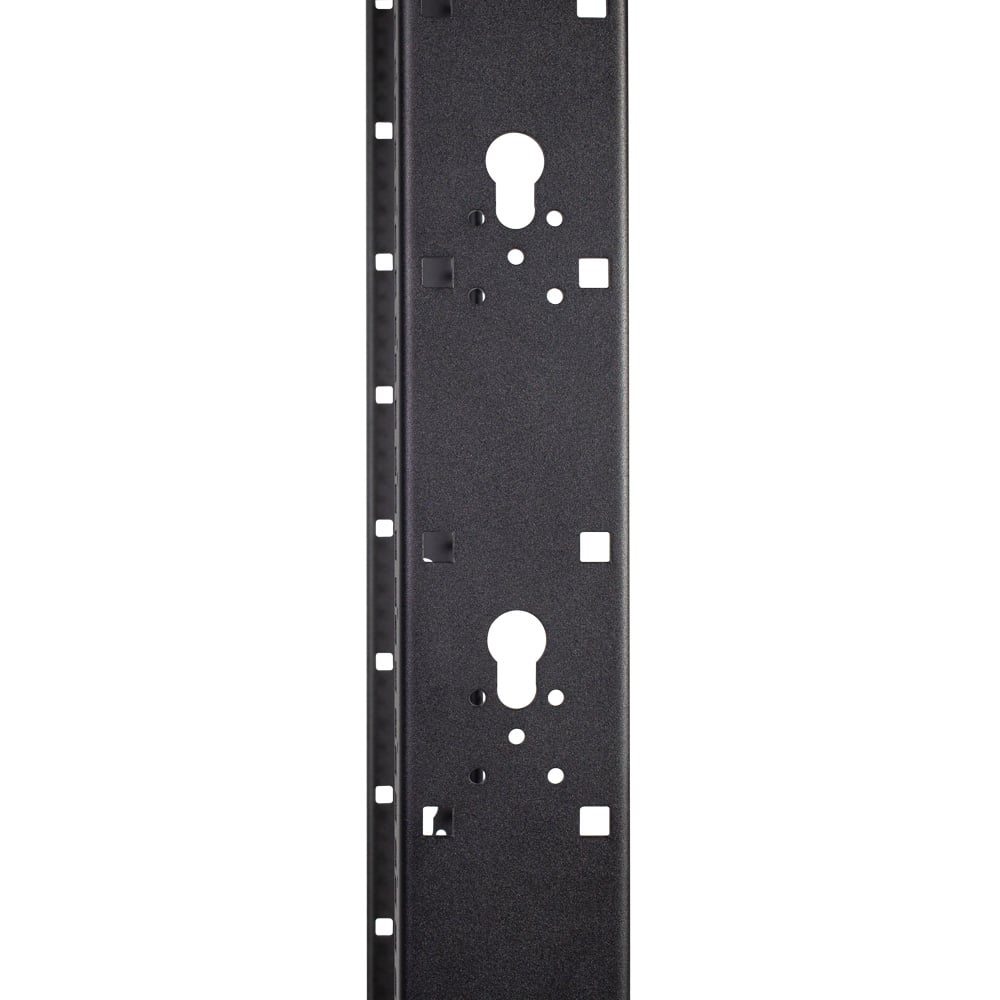

Tool Less Button Mounts

Tool less button mount holes are equipped with standard hole spacing and compatible with most cable management and power components.
121-6512-18 (desktop image)121-6512-18 (mobile image)

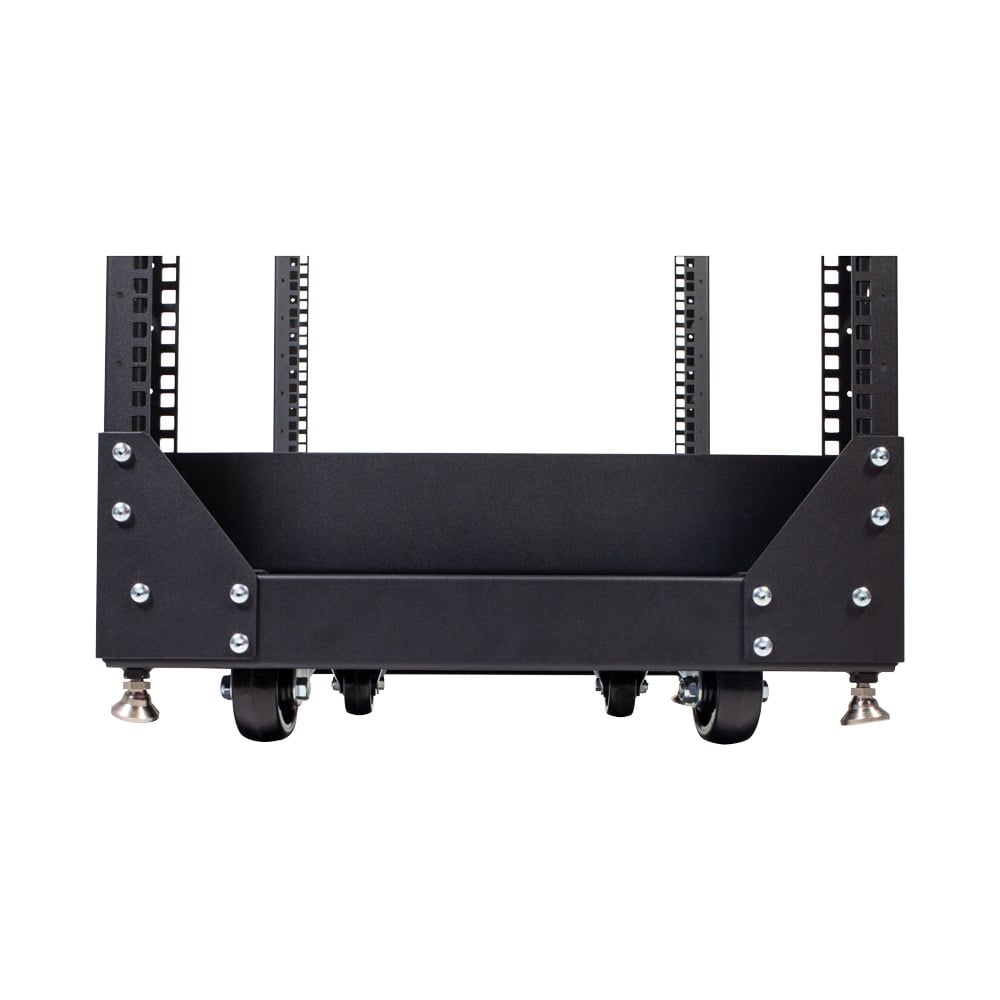

Casters

Compatible with the 2 and 4 post, the caster kit makes your rack mobile and ready to move around your work space.

RackSolutions engineering team has custom designed a 2 post rack that can easily be converted into a 4 post rack. Our rack is constructed from 13 gauge steel, NOT aluminum, and features square mounting holes on the frame. Equipped with tool less button-mounting holes along the sides, vertical PDUs and cable managers can be easily installed. The TechEdge 2 Post Rack was designed with the capability of easily converting into a 4 post rack with the addition of our conversion kit available for the 25U and 45U. Our universal design is compatible with most rack equipment and stands out from the rest with the option to add on our caster kit for easy transportation in your server room, office, or studio. It’s easy to reposition or relocate the network rack in order to connect your rack-mounted equipment to other devices throughout your work space. If you're looking for a more permanent solution, the rack comes with a floor anchor kit to secure your rack to a certain area. The TechEdge 2 post rack is available in 25U and 45U with both racks having a load capacity of 1000 lbs and all assembly hardware included: (9) .250-20 Flat Head Torx Screws (13) .250-20 Pan Head Torx Screws (1) Floor Anchor Kit with drill bit.

RackSolutions TechEdge product line offers high-quality manufacturing in the USA at a low cost. Whatever your industry, we've got a TechEdge product with the quality you need, at an affordable price.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 121-6512 | 121-6522 | 121-8758
  • Kit Contents:
    • (2) Vertical Rack Posts
    • (2) Bottom Anchor Angles
    • (2) Top Angles
    • (1) Floor Anchor Kit w/ Drill
  • Hardware:
    • (9) .250-20 Flat Head (T30) Torx Screw
    • (13) .250-20 Pan Head (T30) Torx Screw
Rack Type 2 Post Rack (Telco Rack)
Dell Part Number 121-6522 - AB399910
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 121-6512 - 6064690
131-6513 - 6064692
180-5257 - 5994429
Ingram Part Number 106-6485 - 8JU433
121-6522 - 8PB562
121-6512 - 7BB559
131-6513 - 8JU432
180-5257 - 5DK724
Tech Notes Constructed from 13 GA steel
Self squaring design

1000 lbs load capacity

Button mounts along both sides of rack

Cagenuts and screws NOT included
Rack Height ( U Height) Available in 25U and 45U
Finish Black powdered coat
