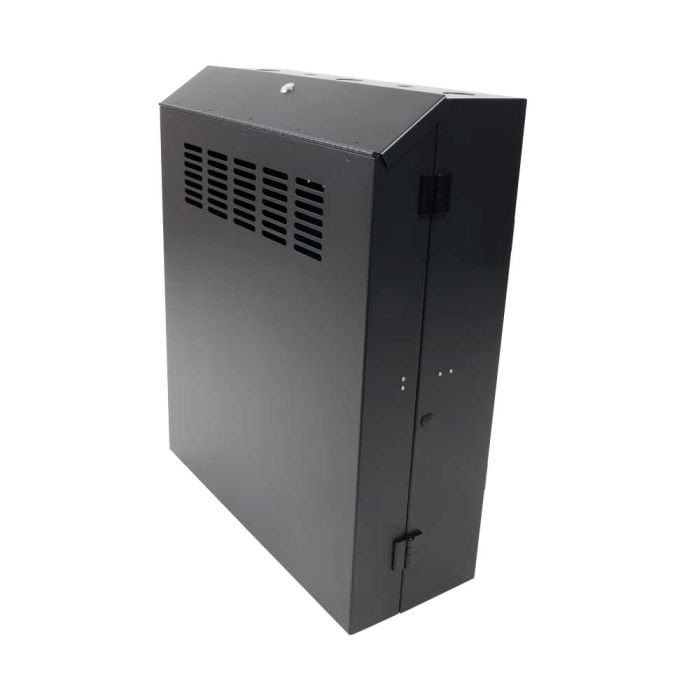

Secure Vertical 5U Wall Mount Rack

Availability: In stock

Secure Vertical 5U Wall Mount Rack

5U of Secure Rackable Space

  • 23"-30" Deep
  • 2U of extra rack space designed for patch panels
  • Load Capacity: 150 lbs
  • Adjustable depth
  • Threaded holes for M6 or 12-24 screws

Mounts 19" equipment

  • Top cover and rack door are lockable
  • Vented bottom
  • Vented locking hinged cabinet door with latch
  • Punch outs for routing cables
  • Mounts x2 120 mm fans to the bottom vents

See "Additional Information" for Tech Specs.

Rack Solutions Promise
Product Name SKU Price Qty
Secure 5U Vertical Wall Mount Rack, 23" Deep 180-5281
Secure 5U Vertical Wall Mount Rack, 30" Deep 180-5282
120mm Fan for Wall Mount Rack 180-5416


Our secure vertical rack is a perfect place to secure small amounts of rack equipment, without taking up too much space and extends less than 10 inches from the wall. Different rack mount equipment such as servers, patch panels, UPS systems, and network switches are compatible with this vertical wall mount rack. The 5U vertical wall mount data rack features a vented hinged door that is lockable, as well as a hinged top panel that locks as well, which allows both security and accessibility to equipment. The wall mount server rack vertical also includes an additional 2U mounting bracket, great for mounting patch panels up to 2.5 inches deep. The air vents located at the bottom of the 5U server rack, allow x2 standard 120mm fans to be mounted. The vertical wall solution is available in 23" and 30" deep vertical mounts. This 5U rack cabinet has a weight capacity up to 150 lbs of 19" equipment. The vertical rack wall mount enclosure is PCI DSS compliant and ships fully assembled.
  • Security and Accessibility
    Security and Accessibility
    The top panel cover and front rack door are both separately lockable for when you need varying security access.
  • Interior rack mounting
    Rack mount equipment without losing floor space
    Inside the top of the rack is a patch panel mounting bracket with the horizontal mounting rails below. Air vents are located at the bottom of the rack ready for 120mm fans to be installed.
Additional Information

Additional Information

Rack Type Enclosed, Wall Mount
Hole Type 12-24 Threaded mounting holes
Rack Internal Width EIA 19" Standard Rack
Rack Depth 20" - 30"
Dell Part Number 180-5282 - AA503081
Rack Mount Depth 180-5281-23"
Included Hardware Included
Rack Height ( U Height) 5U
Finish Black
Rack Doors Vented locking hinged cabinet door with latch
Rack Ventilation Vented bottom
Amazon ASIN 180-5281 = B07L41952Z
180-5282 = B01N6ADQ16
RoHS Compliant Yes
TAA Compliant Yes
