Vertical Wall Mount Rack Bracket 1U - 4U

Starting at $49.99

In stock
Grouped product items
Product Name SKU Qty
1U Vertical Wall Mount Rack
$49.99
1URACK-119
2U Vertical Wall Mount Rack
$59.99
2URACK-119
3U Vertical Wall Mount Rack
$69.99
3URACK-119
4U Vertical Wall Mount Rack
$74.99
119-5028

Vertical Rack for 19 Inch Network Equipment

  • Mounts server and network equipment flush against the wall to save space
  • Low-profile vertical rack perfect for when a server rack is too much
  • Great for mounting servers, network switches, routers, patch panels, KVM switches, and power strips
  • Also mounts under a desk or to the ceiling.
  • Equipment mounts to standard EIA universal, square mounting holes
  • Installation hardware, sheetrock anchors, and cage nuts included

Built to Last

  • Proudly made in Texas from high-quality 16-Gauge cold-rolled steel
  • 200 lb weight capacity when mounted on 16" wooden center studs 35 - 105 lb weight capacity (depending on size) when mounted to dry wall using included sheetrock anchors

See "Additional Information" for Tech Specs.

Our rack mount bracket is a perfect solution for small or home offices. In environments where a server rack is too much or there's just not enough room, this wall mount can flush mount your 19" equipment vertically to the wall or horizontally to the bottom of a desk. With up to a 200lb load capacity, can handle everything from switches and patch panels to heavy servers. Any equipment mounted horizontally must be attached with two brackets so that there are four areas of support. This vertical wall mount rack works with standard 19" server, networking, and telecommunications equipment from Dell, HP, IBM, Apple, Sun, Intel, Cisco, Juniper, 3Com and more.

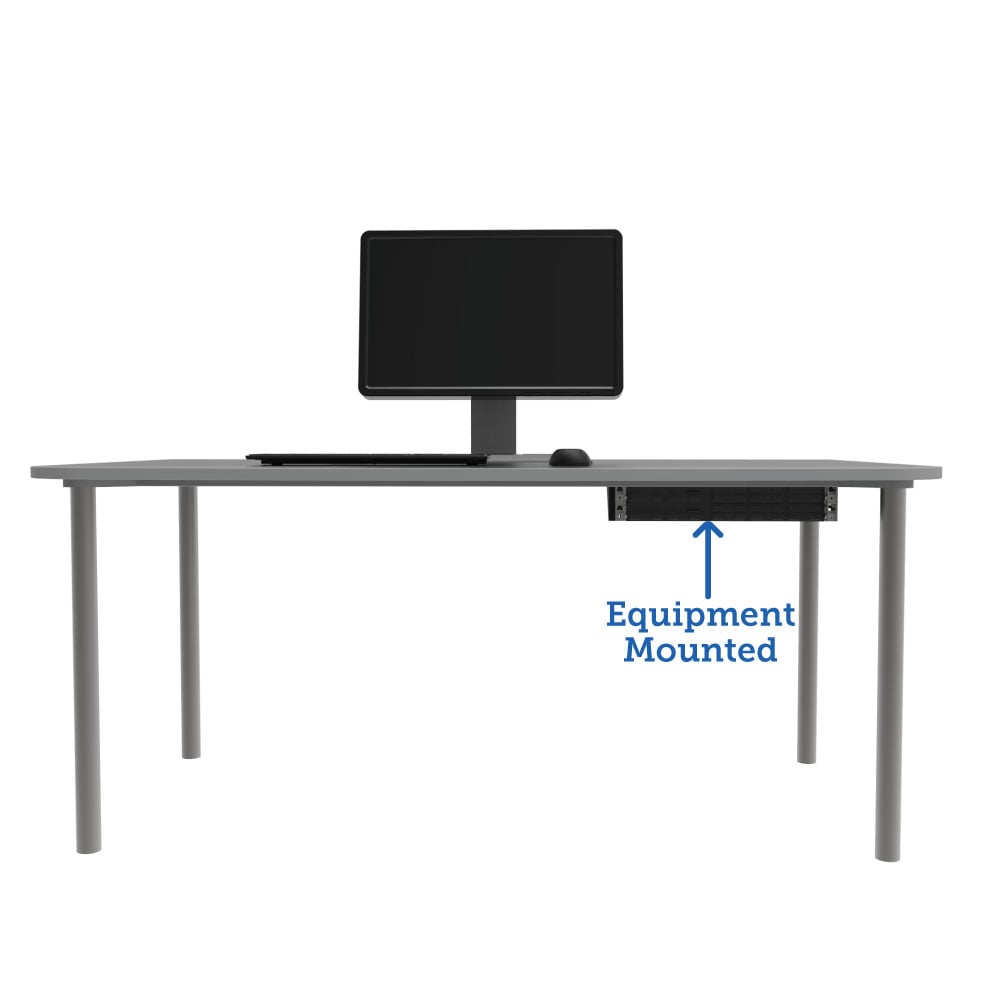

Wall or Desk MountingWall or Desk Mounting

Mount It on a Wall or Under a Desk

The vertical wall mount rack's low-profile flush mounts networking equipment against the wall can hide it under a desk.

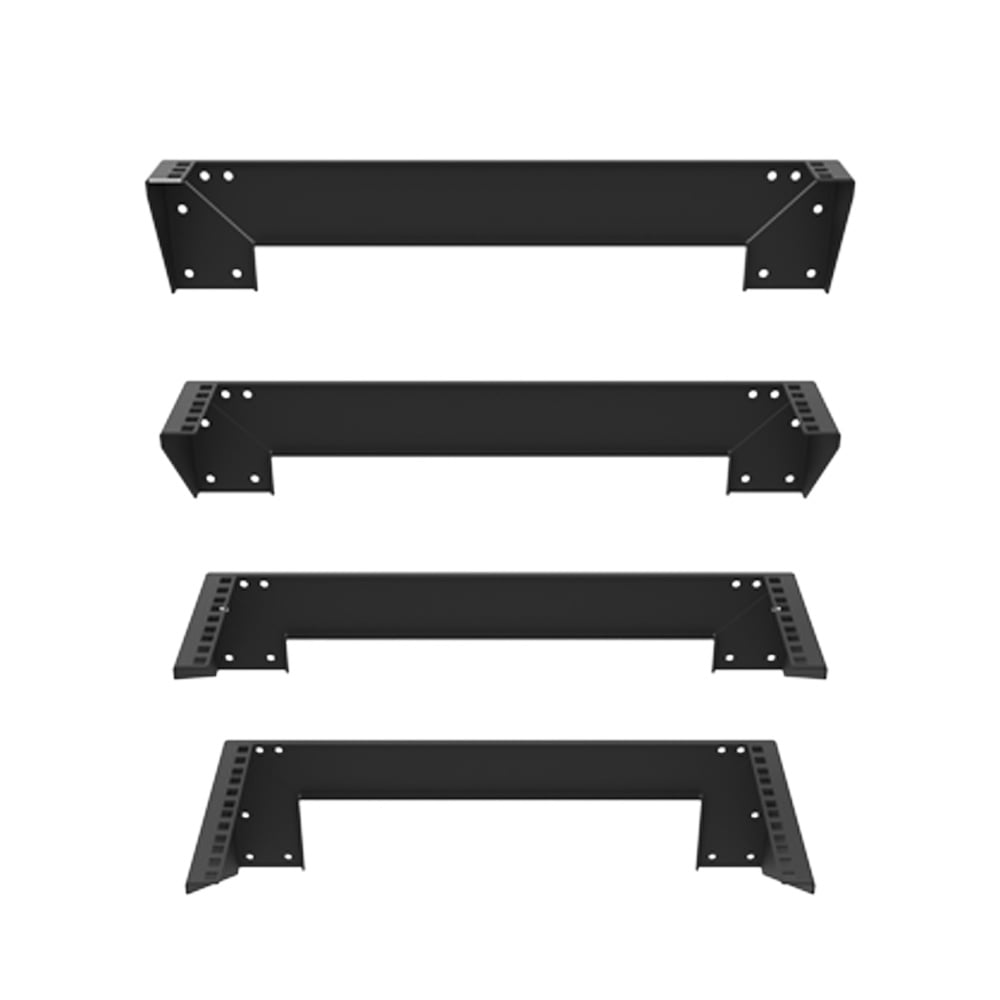

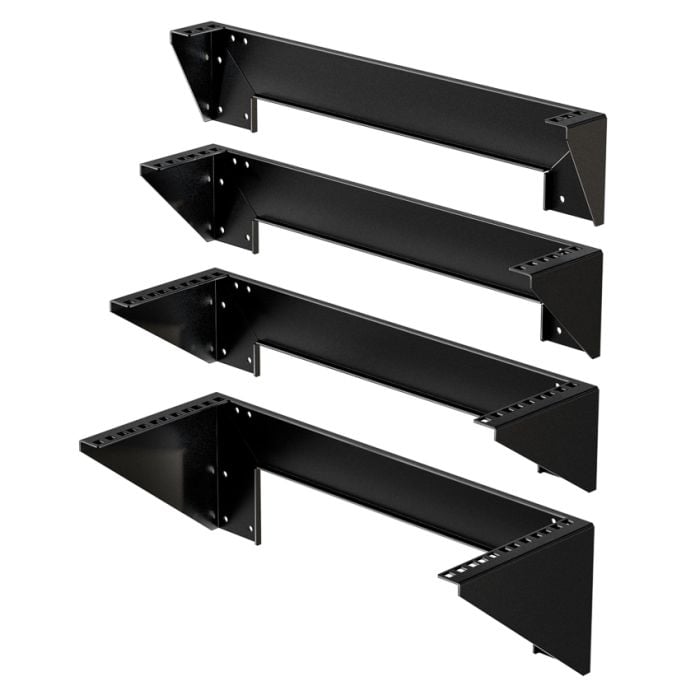

1U - 4U Sizes Available1U - 4U Sizes Available

1U - 4U Sizes Available

1U - 4U vertical network racks available for rack mounting 19-inch server and telecommunications equipment including heavy servers, patch panels, routers, and network switches.

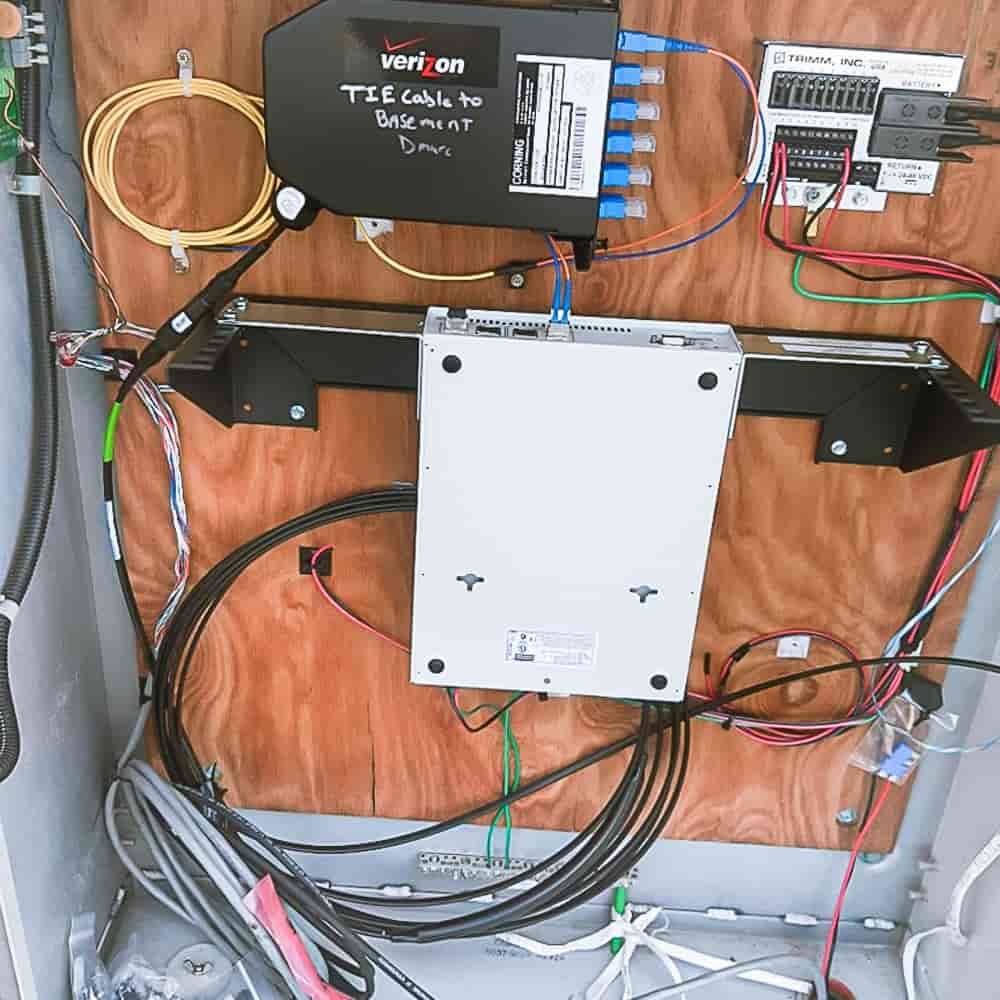

Installation Example for Vertical Wall Mount Rack Bracket 1U - 4UInstallation Example for Vertical Wall Mount Rack Bracket 1U - 4U

Installation Example

This is not only an example of how our vertical wall mount can be utilized in a business setting but how you can add reducer brackets, converters or adapters that allow you to mount all types of equipment on it.

More Information
Rack Type Wall Mount
Rack Internal Width EIA 19" Standard Rack
Dell Part Number 1URACK-119: A0414987
2URACK-119: A0646538
3URACK-119: A0586373
119-5028: A8930307
Tech Notes Note: Metal has a weight capacity of 200 lbs. The weight capacity with the included drywall anchors are as followed:
1URACK-119: Weight Capacity of 35 lbs (16 kg)
2URACK-119: Weight Capacity of 70 lbs (32 kg)
3URACK-119: Weight Capacity of 105 lbs (48 kg)
119-5028 (4U):Weight Capacity of 105 lbs (48 kg)
Load capacity is limited by fasteners. For increased load capacity up to 200 lbs contact a professional engineer for mounting recommendations.
Included Hardware Cage nuts and screws provided for equipment mounting
Auger style, sheet rock anchors included
Rack Height ( U Height) 1U - 4U
Finish Black, textured powder coat
Assembly Notes Phillips head screwdriver required
Amazon ASIN 1URACK-119: B0009N5P6C
2URACK-119: B00UVK8ZRY
3URACK-119: B00UVKAU4K
119-5028: B01D24E80I
RoHS Compliant Yes
TAA Compliant Yes
Dimensions (H x W x D)
1U: 4.0 x 19.8 x 2.0" (101.6 x 502.9 x 50.8 mm)
2U: 4.0 x 19.8 x 4.5" (101.6 x 502.9 x 114.3 mm)
3U: 5.9 x 19.8 x 5.6" (149.8 x 502.9 x 142.2 mm)
4U: 6 x 19.9 x 7.5" (152.4 x 505.5 x 190.5 mm)
