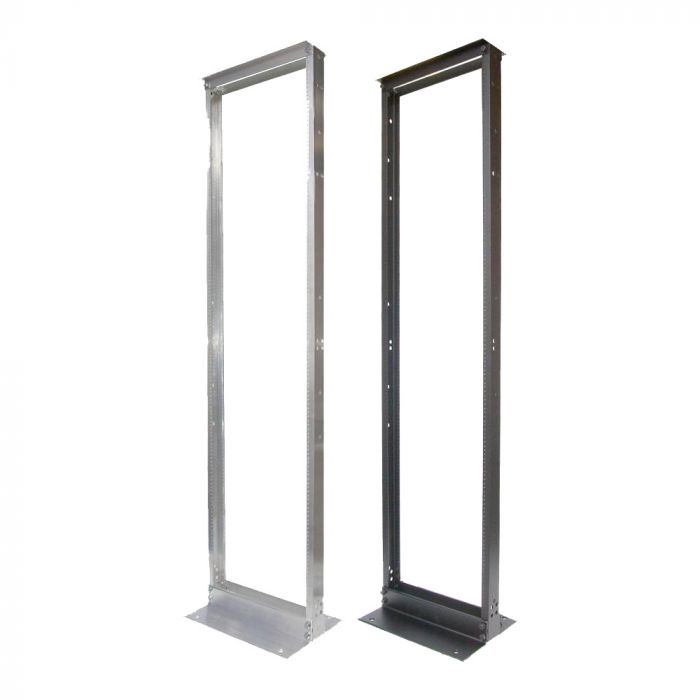

Telco Relay 2 Post Rack
24U-45U of Rackable Space
- Mounting Depth Range: 3" Side Channels
- 19" Mounting Width (RELAY-RACK-45-B-12-23 is 23" Wide)
- Weight capacity, 1000 lbs (453.6 kgs)
- High strength, 6005-T5 aluminum extrusion
10-32 or 12-24 Threaded Holes
- Front & Rear floor mounting holes
- Must be anchored to floor, wall or ceiling
- Clear or black, textured powder coat
Pricing while supplies last!
See "Additional Information" for Tech Specs.
Our 2 Post Telco Rack is also commonly called a relay rack or simply telco rack. Two post network racks are primarily used to install communication and network equipment. Computing equipment can be installed in 2post server racks with the use of specialized rail kits. These rail kits allow the equipment to be installed in either a center mount or a flush mount configuration. The standard rail kits can be used to install computing equipment in a two post server rack with the addition of a relay rack conversion kit.
2 Post Data Racks are manufactured using two different methods - the highest quality server rack posts are extruded. This means the aluminum is formed and not bent. The second method used to make 2 post open frame racks is to bend flat sheets of aluminum or steel. These open frame relay racks are of lesser quality than the extruded 2 post relay racks. All of our 45U and 24U server racks are made from extruded aluminum and are the highest quality available. More info on 2 post racks.
All of our open frame relay racks are knock down(flat-packed) and ship ready-to-assemble, making it easier to handle and store until needed.
We promise you’re going to have a great experience. We’ll help you figure out what you need, get it to you fast, and we’ll stand behind it.
|Rack Type||2 Post Rack (Telco Rack), Open Frame|
|Hole Type||10-32 or 12-24 threads|
|Rack Internal Width||EIA 19" Standard Rack|
|Rack Mount Depth||3" side channels (76.2 mm)|
|Synnex Part Number||180-6128 - 5525263 180-6129 - 5525268 180-6131 - 5525276 180-6130 - 5525265|
|Ingram Part Number||RELAY-RACK-24-B-10 - 2DV901 RELAY-RACK-45-B-12-23 - 3GY761 RELAY-RACK-24-C-12 - 5DK378 RELAY-RACK-45-C-10 - H53944 RELAY-RACK-45-B-10 - M74140 180-6128 - 5KW794 180-6129 - 9RD115|
|Tech Notes||High strength, 6005-T5 aluminum extrusion
Floor mounting holes front and rear.
Use 1/2" bolts with a large washer to mount to the floor.
These relay racks must be anchored to the floor, wall or ceiling.
|Finish||Clear or black, textured powder coat|
|Rack Post Shape||C Shape|
|Assembly Notes||3/4" wrench required|
|Mounting Depth Range||3" side channels (76.2 mm)|
|Rack Outside Dimensions||Footprint: Width x Depth 20.3" (514 mm) x 15" (381 mm)|
|Amazon ASIN||RELAY-RACK-24-C-10 = B000SDYZ3C RELAY-RACK-24-C-12 = B000SDYZ4G|
