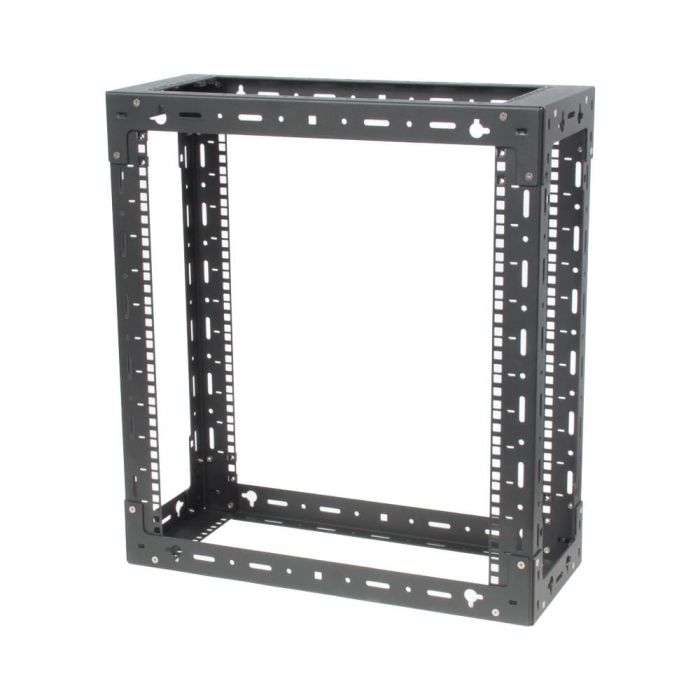

Open Frame Wall Mounted Rack

Availability: In stock

Open Frame Wall Mounted Rack

9 configurations for any application

  • 12U, 15U, 21U heights (front mount)
  • 4U, 6U, 9U depths (top/bottom mount)
  • 300 - 400 lb capacity
  • Optional side panels, front covers, top panels

Wall mount networking equipment or servers

  • Wall mount 19" rack mount equipment
  • Front mount up to 21U of rack equipment
  • Top mount up to 9U of servers (use 15U [29.95"] height)
  • Open design allows for optimal air flow
  • Easy cable access & tie points
  • Convenient U space markings


  • Patch panels & network devices
  • Small, peripheral devices
  • Servers or storage systems
  • Installations requiring moderate security
  • How to select a Wall Mount Rack

*Be sure your server rails will extend to 29.95" before ordering

See "Additional Information" for Tech Specs.

Rack Solutions Promise

* Required Fields

From: CA$204.99

To: CA$892.93

Price as configured: CA$0.00

Price as configured: CA$0.00



Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

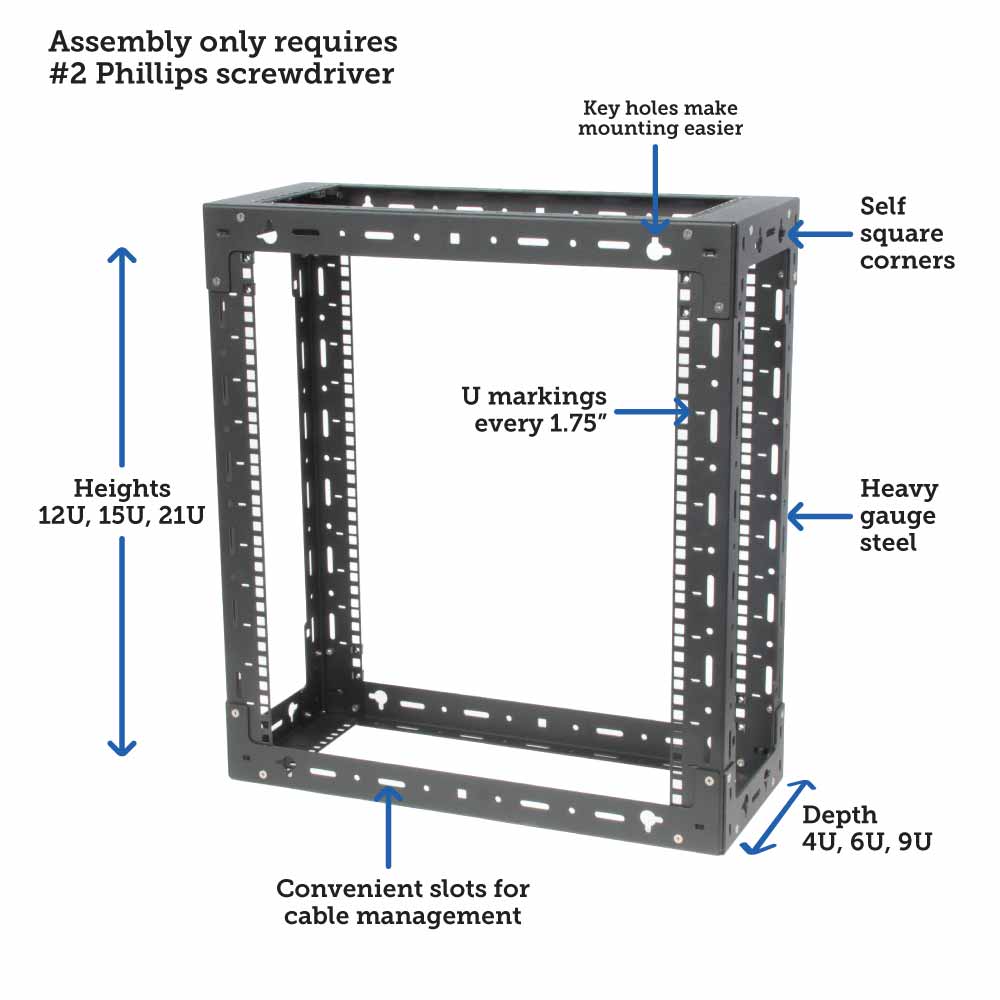

Wall Mount Rack Features

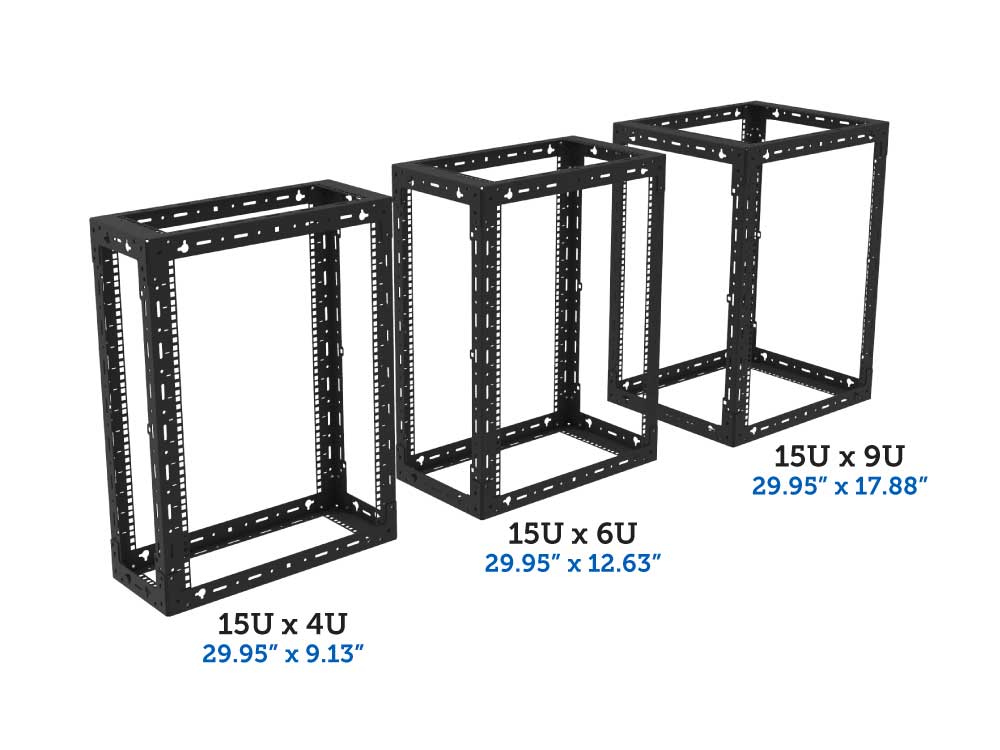

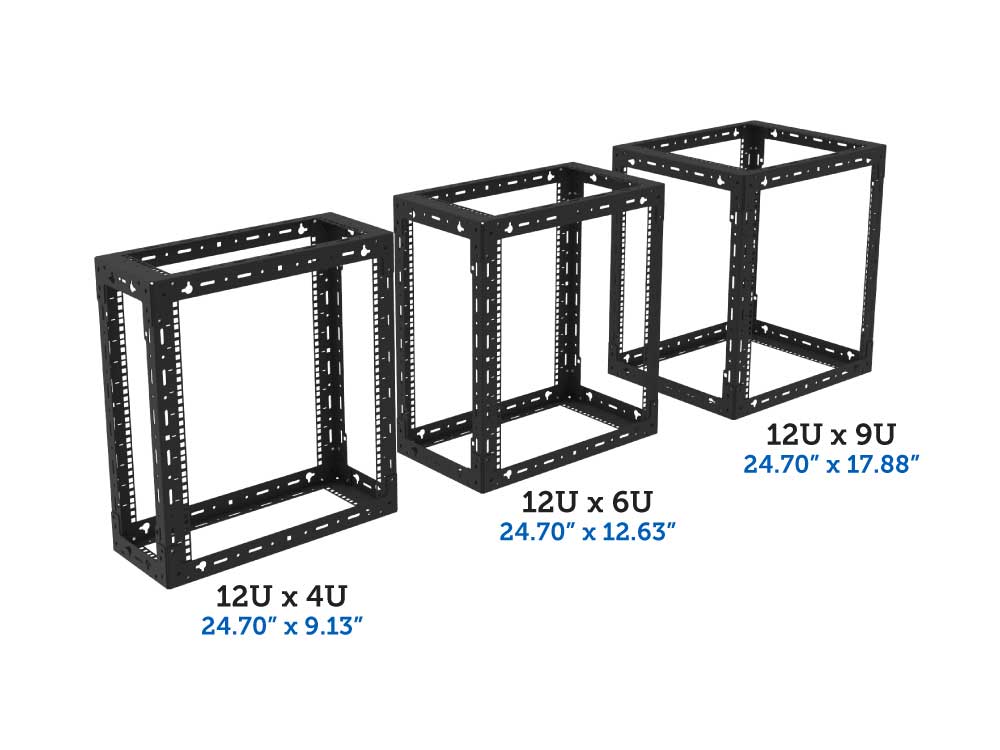

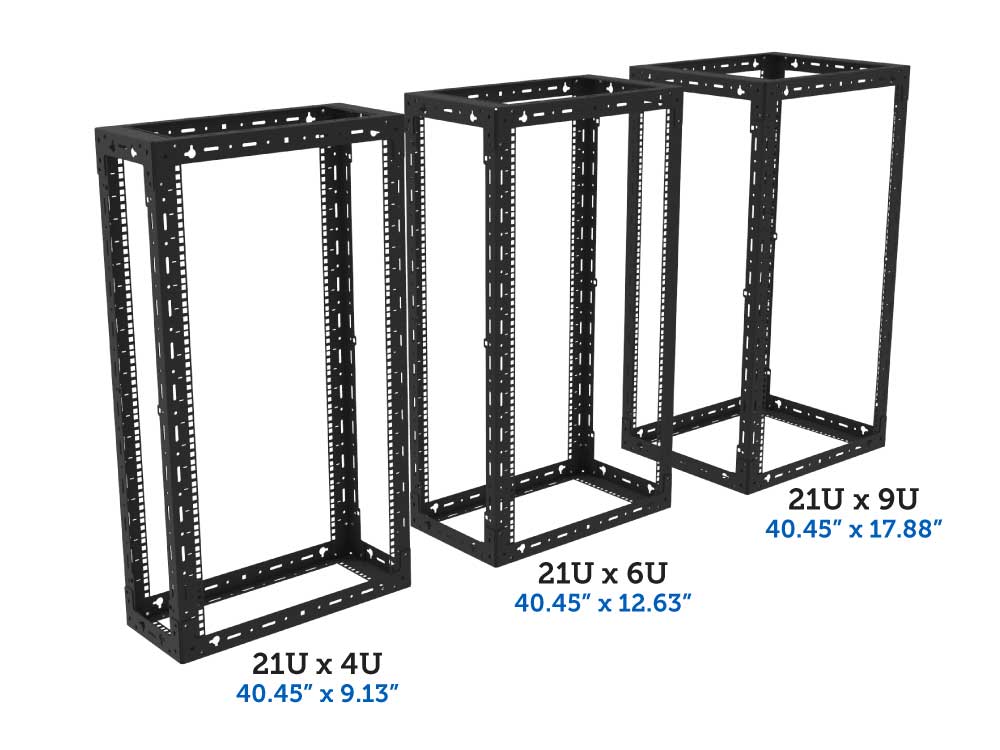

Wall Mount Rack Sizes

Side Panels and Front Cover

Wall Mount Rack Side Panels and Front Covers

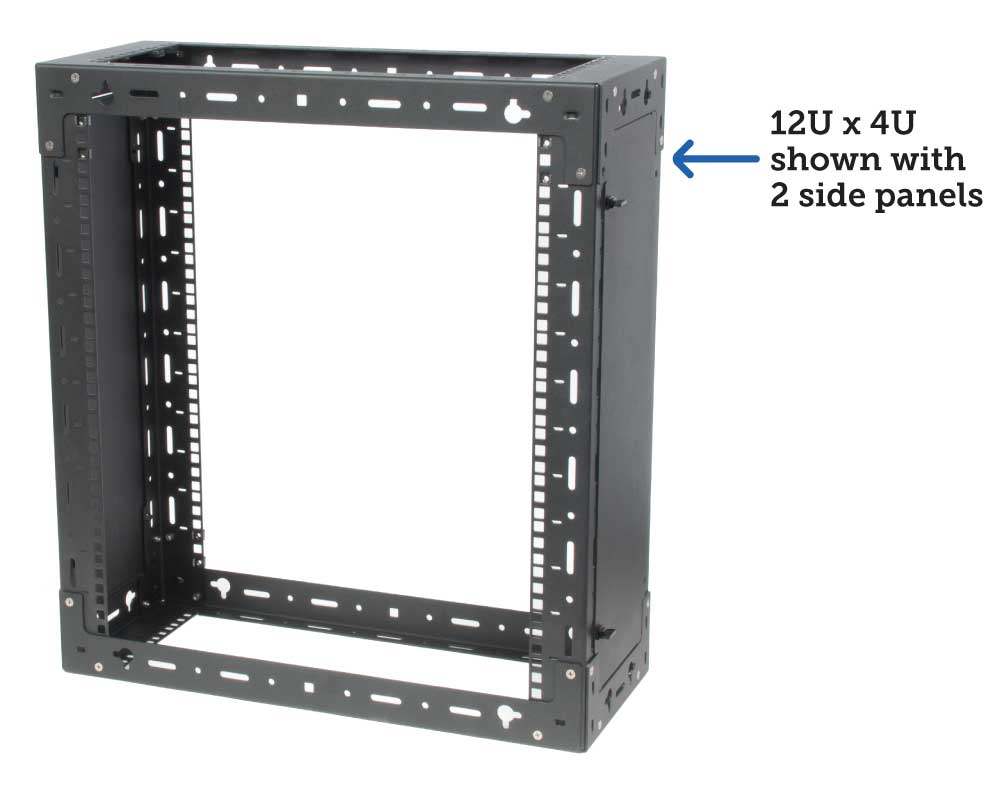

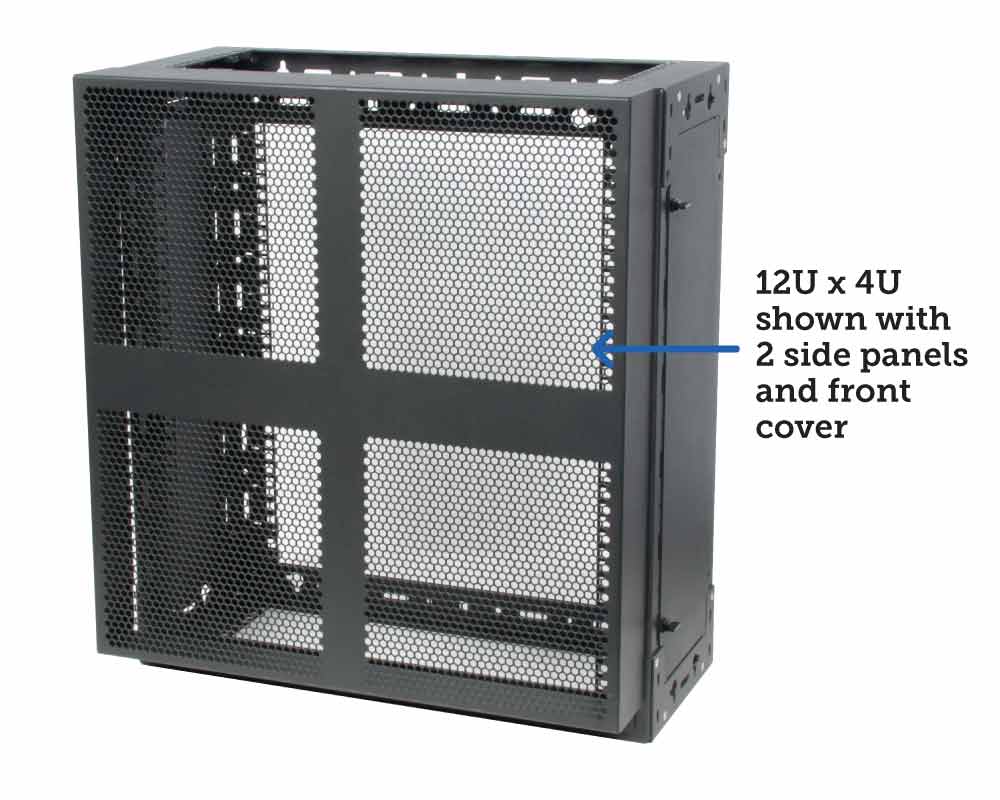

These tool-less, non-locking, side panels come in 9 different sizes and are sold as single units. You must order 2 side panels per rack if you wish to install side panels on the left and right side of the rack. Wall mount rack side panels are easy to install. Front Covers for the Open Frame Wall Mount Rack are available in 12U, 15U and 21U sizes.

Filler Panels

Wall Mount Rack Filler Panels

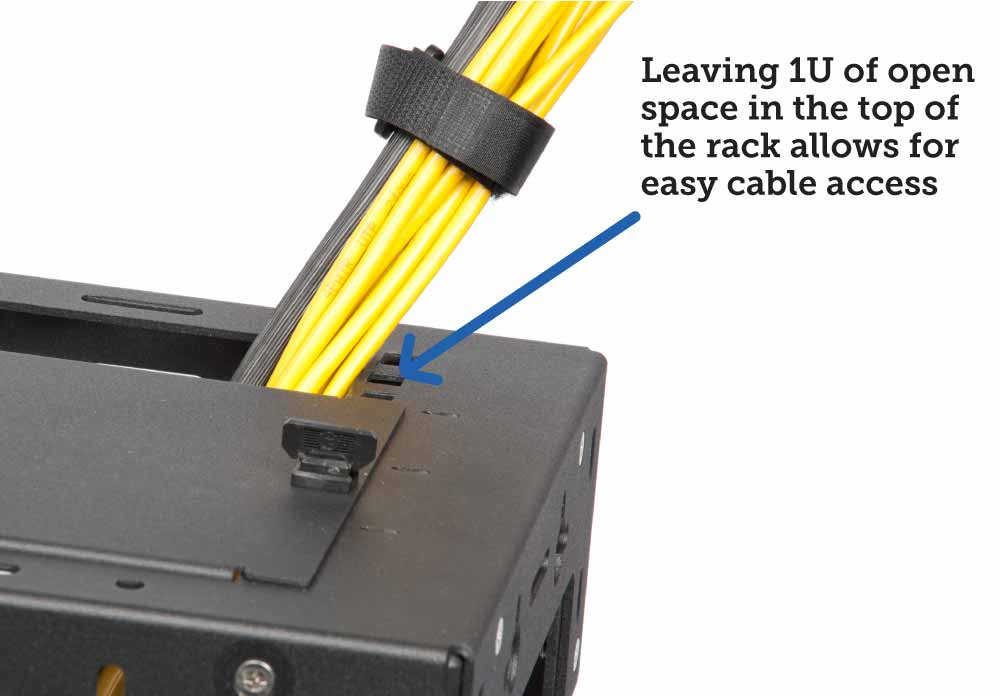

Tool-less Filler Panels may be used to fill in the open spaces on the front, top or bottom of the Wall Mount Rack. Below, on the left, is a photo of a Wall Mount Rack with 4U of space on the top. A 3U filler panel encloses most of the top but leaves 1U of open space. In the image on the right, a power distribution unit has been installed in the previously available 1U of space. Standard Filler Panels are also compatible with the Open Frame Wall Mount Racks.

Wall Mount Rack Standard Filler Panel


These solid or vented shelves made for 2 post racks fit nicely in this Wall Mount Rack. Depending on the depth of the rack you select, you may choose a 7" or 13" shelf. They're great when you need a place to set a wireless access device or another piece of equipment that doesn't mount in a rack.

Power Strips

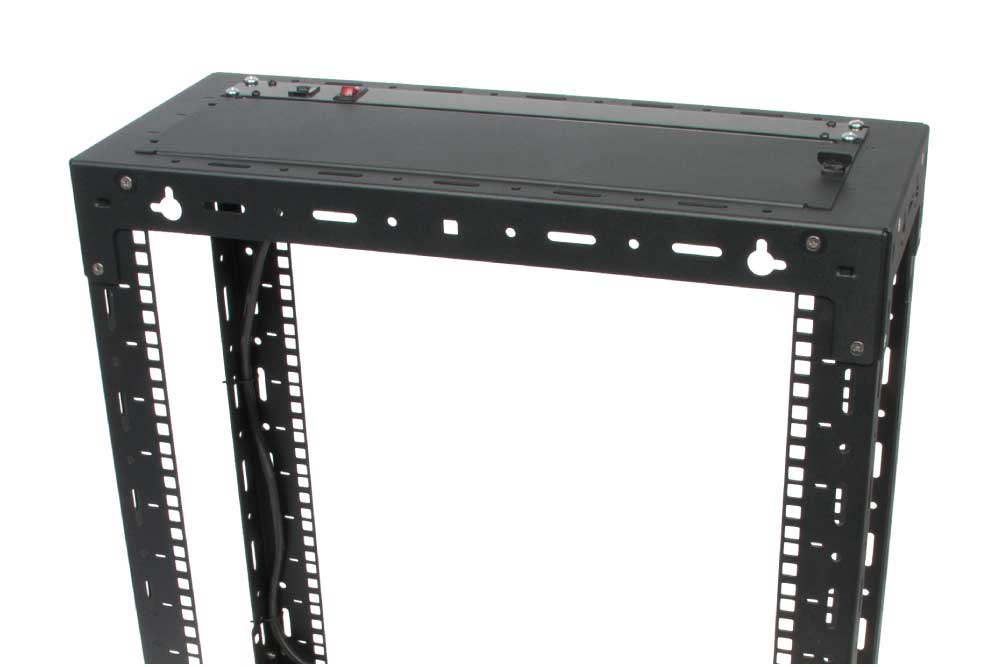

Any of these horizontal power strips will easily mount to the top, bottom, front or back of this Wall Mount Rack.

Additional Information

Additional Information

Rack Type Open Frame, Wall Mount
Rack Internal Width EIA 19" Standard Rack
Dell Part Number 102-1869 - A8943424
Included Hardware (2) Frames
(4) Posts

Assembly Hardware Kit
(32) 10-32 x .375" Flat Head Screws

Mounting Hardware Kit
(4) .25" Hex Lag Screws
(4) .281 Flat Washers

Rack Mount Hardware Kit
(20) 12-24 x .500" Pan Head Screws
(20)12-24 Cage Nuts
Assembly Notes Assembly time is less than 10 minutes
Requires only a #2 Phillips Screwdriver
Rack Units
  • Vertical:12U, 15U, 21U heights
  • Horizontal:4U, 6U, 9U depths top and bottom
RoHS Compliant Yes
TAA Compliant Yes
