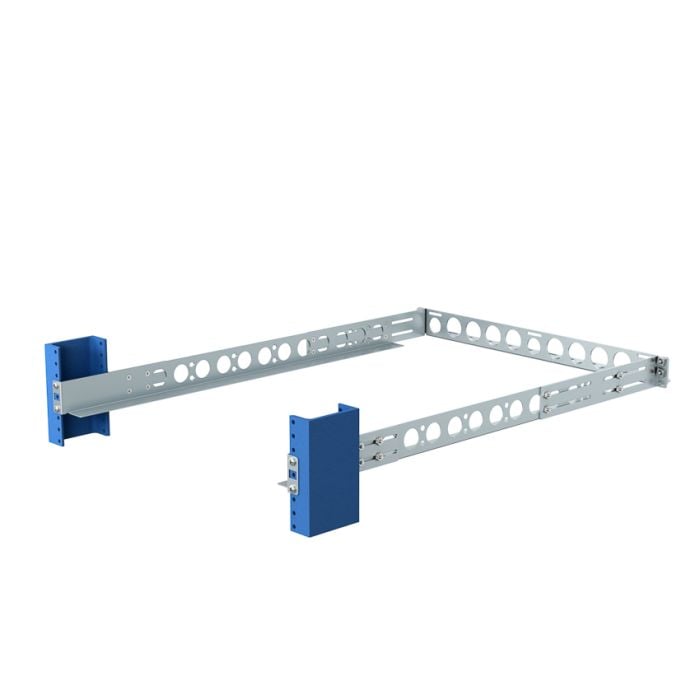

2 Post Rack Rails

In stock
Grouped product items
Product Name SKU Qty
1U, 2Post Rack Rails
CA$119.99
1UKIT-009
2U, 2Post Rack Rails
CA$169.99
2UKIT-009
3U, 2Post Rack Rails
CA$189.99
3UKIT-009

Mounts in any 2Post rack

  • Square or round hole racks (10-32, 12-24, metric M6 threads)
  • Weight capacity, 45 - 200 lbs
  • Includes cable management bar
  • Hook-and-loop straps provided for securing cables

Excellent alternative to OEM rails

  • Dell, HP & IBM compatible
  • Mounting depth: 10 - 31.75" (254 - 806 mm)
  • 24" (610 mm) long

The RackSolutions 2 Post Rack Rails are designed to give users a durable, high-performance rail solution for standard 19" server racks. As a result, the 2 Post Rack Rails are simultaneously durable and versatile. Durability comes from strong construction principles and a zinc plating finish. This allows the device to support 45 lbs for 1U devices, 75 lbs for 2U and a maximum weight of 200 lbs for 3U devices. All of this is achieved in a form factor 24" long with a mounting depth of 10" to 31.75". The 2 Post Rack Rails get their diversity from a form factor compatible with DellHP and IBM. servers. Furthermore, the rails can be mounted in both center and flush settings, making them easy to deploy in a variety of settings. This ease is furthered by the rails' compatibility with square, round or threaded holes. Besides giving users durability and versatility, the rails also offer a reliable, professional solution. To make this possible, RackSolutions equipped the rails with a built-in cable management bar to ease cable routing and hook-and-loop straps to help keep wires from going astray. The 2 Post Rack Rails ship with screws, cage nuts and nuts for all rack types, easing installation and ensuring users have all the hardware they need to assemble the server storage solution.



XUKIT-109 Universal Rack Rails XUKIT-109 Universal Rack Rails

XUKIT-109

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails XUKIT-009 2 Post Rack Rails

XUKIT-009

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack RailsXUKIT-109-QR Tool-Less Rack Rails

XUKIT-109-QR

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack RailsXUKIT-109-20 Universal Shallow Rack Rails

XUKIT-109-20

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails XUKIT-109-31 Deep Mount Rack Rails

XUKIT-109-31

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109 Universal Rack Rails XUKIT-109 Universal Rack Rails
XUKIT-009 2 Post Rack Rails XUKIT-009 2 Post Rack Rails
XUKIT-109-QR Tool-Less Rack RailsXUKIT-109-QR Tool-Less Rack Rails
XUKIT-109-20 Universal Shallow Rack RailsXUKIT-109-20 Universal Shallow Rack Rails
XUKIT-109-31 Deep Mount Rack Rails XUKIT-109-31 Deep Mount Rack Rails

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes

More Information
Equipment Depth The rack rails support flange is 23 1/2" (597 mm) long
The rack rail will support servers computers or equipment up to 35" (889 mm) deep
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area *Maximum: 17.6" (447 mm)
1U Minimum: 16.625" (422 mm)
2U Minimum: 16.375" (416 mm)
3U Minimum: 16.75" (413 mm)
*Maximum equipment width allowed is based on worst case conditions. Wider equipment may fit depending on the mounting configuration and/or actual equipment dimensions. Please contact technical support for further assistance.
Finish Zinc plating
Mounting Depth Range Mounting depth: 10 - 31.75" (254 - 806 mm)
Included Hardware Includes relay rack mounting hardware: screws, cage nuts and nuts for all standard rack types
Weight Capacity 2Post center mount
1U: 45 lbs (20.4 kgs)
2U: 75 lbs (34 kgs)
3U: 200 lbs (90.7 kgs)

2Post flush mount
1U: 30 lbs (13.64 kgs)
2U: 50 lbs (22.73 kgs)
3U: 125 lbs (56.82 kgs)
Rack Units 1U, 2U and 3U
Tool-less/Standard Standard
Overall Installation Depth Maximum overall depth is the same as the rack's mounting depth
Hole Type Compatible with all standard threads including 10-32, 12-24 and metric M6
Amazon ASIN 1UKIT-009 = B00E2TYI58
2UKIT-009 = B000H33N6I
3UKIT-009 = B00UVKAI10
TAA Compliant Yes
RoHS Compliant Yes
