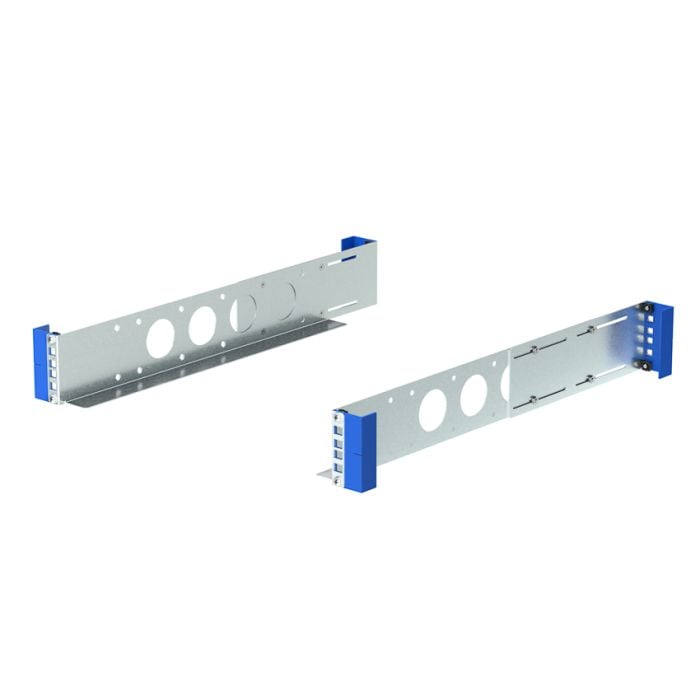

Universal Shallow Rack Rails

Starting at CA$94.99

In stock
Grouped product items
Product Name SKU Qty
1U, 20" Rackmount Rails
CA$94.99
1UKIT-109-20
2U, 20" Rackmount Rails
CA$124.99
2UKIT-109-20
Out of stock
3U, 20" Rackmount Rails
CA$154.99
3UKIT-109-20

Fits square, round or threaded holes

  • Rack mounts a variety of equipment
  • Mounting depths from 10" - 28 (254 - 711 mm)
  • 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP & IBM compatible

  • Alternative to OEM slide rails

Rack rails can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 200 lbs (91 kgs) can be installed using rack rails. The rack rail can be installed into server racks with installation depths from 10 to 27" (254 mm to 686 mm).

Adjustable Rack Rails and Square Hole Mounting

The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.

The rails to be compatible with round, square or threaded hole racks.



XUKIT-109 Universal Rack Rails XUKIT-109 Universal Rack Rails

XUKIT-109

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails XUKIT-009 2 Post Rack Rails

XUKIT-009

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack RailsXUKIT-109-QR Tool-Less Rack Rails

XUKIT-109-QR

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack RailsXUKIT-109-20 Universal Shallow Rack Rails

XUKIT-109-20

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails XUKIT-109-31 Deep Mount Rack Rails

XUKIT-109-31

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109 Universal Rack Rails XUKIT-109 Universal Rack Rails
XUKIT-009 2 Post Rack Rails XUKIT-009 2 Post Rack Rails
XUKIT-109-QR Tool-Less Rack RailsXUKIT-109-QR Tool-Less Rack Rails
XUKIT-109-20 Universal Shallow Rack RailsXUKIT-109-20 Universal Shallow Rack Rails
XUKIT-109-31 Deep Mount Rack Rails XUKIT-109-31 Deep Mount Rack Rails

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes

More Information
Rail OEM Universal
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware
  • Components
  • (1) Left Fixed Rail
  • (1) Right Fixed Rail
  • (2) Rear Brackets

  • Assembly Hardware Kit
  • (8) 8-32 Flat Head Screws
  • (8) 8-32 Keps Nuts
  • (1) 10-32 Cage Nut
  • (1) 12-24 Cage Nut
  • (1) M6 Cage Nut
  • Rack Hardware
  • (8) 10-32 Pan Head Screws
  • (8) 12-24 Pan Head Screws
  • (8) 12-24 Cage Nuts
  • (8) 12-24 Square Nuts
Assembly Notes Ships Fully Assembled
Overall Installation Depth Min: 19.5" (495.3 mm)
Max: 27" (685.8 mm)
Rail Type Fixed
Mounting Depth Range The Rack Rails support flange is 19 1/2" (495.3 mm) long.
The Rack Rail will support servers, computers or equipment up to 24" (609.6 mm) deep.
Finish Zinc Plated
Rack Units 1U, 2U, or 3U
Rack Type 4 Post
Amazon ASIN 1UKIT-109-20 = B003E9N3V2
2UKIT-109-20 = B0093HG1HM
3UKIT-109-20 = B00UVKAMWU
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
TAA Compliant Yes
