Universal Rack Rails
Fits any 4 Post rack
- Fits square, round, threaded holes
- Mounting depth: 10 - 31.50" (254 - 800mm)
- Includes cabling crossbar (installation is optional)
Rackmounts 19" equipment
- 1U, 2U or 3U+
- 45, 75 or 200 lb (20, 34 or 91 kg) capacity
- Dell, HP, IBM, Apple compatible
- Replaces OEM slide rails
- Optional retaining plate for standard width 1U-2U universal rails

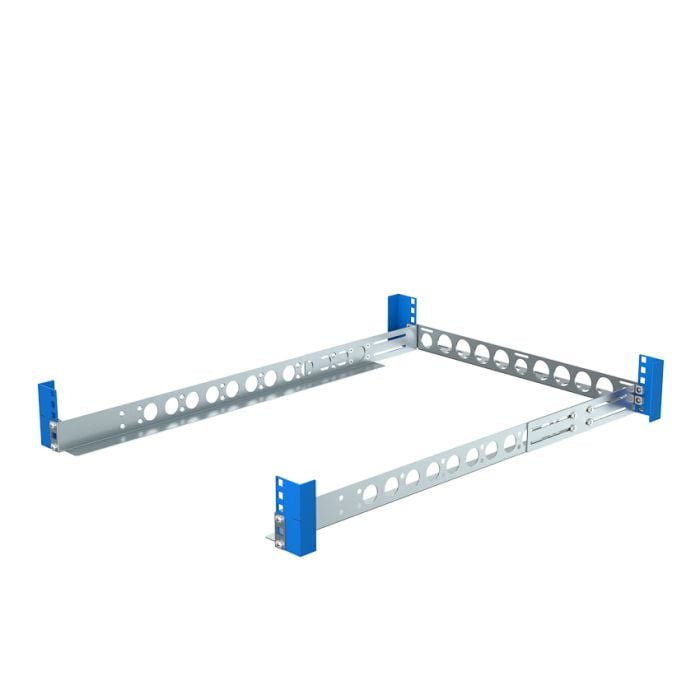

The Rack Solutions Universal Server Rack Rails come in either 1U, 2U or 3U+ sizes, with weight capacities of 45, 75 and 200 pounds, respectively. The universal rails are designed to replace OEM rails included with Apple, HP, IBM and Dell server racks, providing a flexible solution for damaged server rack rails or OEM slide rails. The product is designed to support a variety of server racks, and is compatible with setups requiring standard square, rounded and threaded holes. To further its compatibility with various different devices and server racks, the rail rack supports mounting depths between 10 and 31.5 inches. The server rack rail ships with a variety of complementary items and hardware to make assembly, installation and cable management easier. Hardware items include screws, cage-nuts and nuts for all rack types. A cable management bar is also included to assist with routing, and hook-and-loop strips come included to keep cords secure. Overall, the all-purpose, zinc plated, fixed Universal Server Rack Rails can meet the needs of a variety of server installation solutions, allowing data centers to replace their OEM rails with a high-quality, reliable system.
Adjustable Rack Rails
The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated.
Square Mounting Holes
The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.
Dell Slam Latch Retaining Plate
The 1U and 2U retaining plate allows Dell servers to be secured in place when using our universal rails. These retaining plates are only compatible with 1U-2U standard width universal rails and are not compatible with wide equipment universal rails configuration. If your Dell server does not have a slam latch, please call our support team at 888-505-RACK for more information on server compatibility.
Testimonials
"Installed those universal rails from Rack Solutions yesterday - it was so easy and worked so well that the assistant editor literally couldn't believe it. Wish I would have discovered these first (before wasting precious time and money on extenders, adapters, etc.) And I mean every word. Thanks for the great service, quick turnaround, and excellent product!" :)
Shaun O
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
2-Post Only
Mounting Depth Range
Center or Flush Mount
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
28 - 30"
(711 - 762 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
No
Size Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109
XUKIT-009
XUKIT-109-QR
XUKIT-109-20
XUKIT-109-31
Sizes Available
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
Rack Type
4-Post
2-Post Only
4-Post
4-Post
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Center or Flush Mount
28 - 30"
(711 - 762 mm)
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Cable Management Bar
Yes
Yes
Yes
No
Yes
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Dell, HP / HPE, Lenovo, Universal | U Height | 1U, 2U, 3U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs, 125 - 250 lbs | Finish | Zinc plated | Dell Part Number | 1UKIT-109 - A7272282 2UKIT-109 - A7008276 3UKIT-109 - A7008269 109-8421 - AB892028 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. | Synnex Part Number | 1UKIT-109 - 4614567 2UKIT-109 - 4614568 3UKIT-109 - 4614569 | Ingram Part Number | 109-8421 - 9RC243 101-2435 - TF0926 1UKIT-109 - 658376 2UKIT-109 - 658456 3UKIT-109 - 658458 |
|---|
Data Sheet
1U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8251)
Open PDF
Installation Instructions
1U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8251)
Open PDF
Dimensional Drawings
1U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8251)
Open PDF
Data Sheet
2U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8421)
Open PDF
Installation Instructions
2U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8421)
Open PDF
Dimensional Drawings
2U Wide Equipment Universal Rail 24in Depth with Wirebar (109-8421)
Open PDFComponents:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
Components:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30” Hook and Loop Cable Tie
Assembly Hardware Kit:
- (8) 8-32 Flat Head Screws
- (8) 8-32 Nuts
Cage Nuts for Equipment Thumb Screws:
- (2) 10-32 Cage Nuts “Silver” (Dell Standard)
- (2) 12-24 Cage Nuts “Black”
- (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
Rack Hardware Kit (2 bags):
- (12) 10-32 Pan Head Screws
- (12) 12-24 Pan Head Screws
- (12) 12-24 Cage Nuts
- (12) 12-24 Square Nuts
Kit Contents:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30'' Hook and Loop Cable Tie
Rear Bracket Hardware:
- (9) 8-32 x .312 Flat Head Screw
- (9) 8-32 Keps Nuts
Mounting Hardware:
- (9 or 11) 8-32 x .500 Pan Head Screw
- (2) Square-hole Retainer Plate
- (2) Round-hole Retainer Plate
Kit Contents:
- (1) Left Fixed Rail
- (1) Right Fixed Rail
- (2) Rear Brackets
- (1) Cable Crossbar
- (1) 30'' Hook and Loop Cable Tie
Rear Bracket Hardware:
- (9) 8-32 x .312 Flat Head Screw
- (9) 8-32 Keps Nuts
Mounting Hardware:
- (9 or 11) 8-32 x .500 Pan Head Screw
- (2) Square-hole Retainer Plate
- (2) Round-hole Retainer Plate
Kit Contents:
- (2) 1U Dell Slam Latch Adapter Bracket
Kit Contents:
- (2) 2U Dell Slam Latch Adapter Bracket
