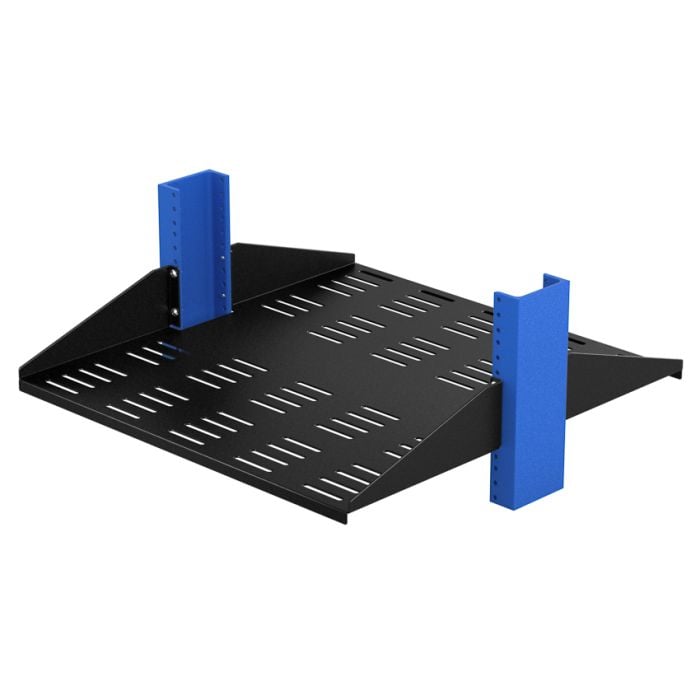

2U 2 Post Relay Rack Shelf - 20" Depth

Starting at CA$54.99

In stock
Vented Shelves
Grouped product items
Product Name SKU Qty
20" 2Post Shelf, Vented, Flanges Up
CA$54.99
2USHL-022FULL-20UV
20" 2Post Shelf, Vented, Flanges Down
CA$54.99
2USHL-022FULL-20DV
Solid Shelves
Grouped product items
Product Name SKU Qty
20" 2Post Shelf, Solid, Flanges Up
CA$54.99
2USHL-022FULL-20US
20" 2Post Shelf, Solid, Flanges Down
CA$54.99
2USHL-022FULL-20DS
Out of stock

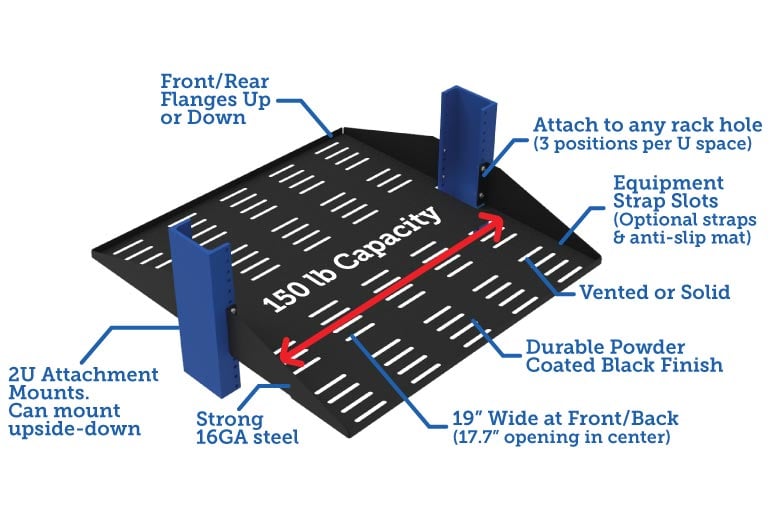

Center Mounted Shelf for a Wide Variety of IT Equipment

  • Choose from solid or vented options
  • Options with flanges facing up or down
  • Center mounts to 2 Post Relay and Telco racks
  • Slots along the side of the shelf for equipment straps

Compatible With Most 2 Post Racks

  • Weight Capacity: 150 lbs (68 kgs)
  • Shelf Depth: 20" (508 mm)
  • Compatible with round, threaded, or square rack holes

NOTE: NOT Compatible with 2 Post racks with 5" - 6" wide uprights.


RackSolutions' 2U 20 inch (508 mm) deep relay rack shelf is perfect for rack mounting networking and telecommunications rack in a 2 post rack, also called a "relay" or "telco" rack. Shelves can be used in a rack to mount equipment that might not ordinarily be rack mountable. It's large depth and 150 lb (68 kgs) weight capacity give it the ability to support a wide variety of electronic equipment. Four different configurations are available for this shelf, with vented and solid options to assist with airflow needs, as well as those with flanges facing up or down. The shelf features slots along the side of the shelf for securing equipment down using equipment straps. Our 20 inch deep 2U 2 Post Relay Rack Shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks.

Shelf Features

The RackSolutions 2U 2 Post Relay Rack Shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks.

More Information
Dell Part Number
2USHL-022FULL-20DV - A0475500

2USHL-022FULL-20US - A9082832
Assembly Notes Phillips head screwdriver required
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Finish Black, textured powder coat
Included Hardware 12-24 & 10-32 pan head screws
Weight Capacity 150 lbs (68 kgs)
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 20" (508 mm)
Material 16 GA Steel
Amazon ASIN 2USHL-022FULL-20UV = B0006I5H72
2USHL-022FULL-20DV = B00UVK9RYE
2USHL-022FULL-20US = B0006I5H7M
2USHL-022FULL-20DS = B00UVK9PLO
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes Shelf depth is measured from front to rear including flanges
