Heavy Duty Relay Rack Shelf Base
Heavy Duty (500 lbs) Shelf for 2 Post Relay Rack
- Designed for the largest and heaviest equipment
- Supports large drive arrays: SAN & NAS appliances
- Supports large chassis servers and UPS Units
- Supports large blade centers: IBM, Dell, HP
- Solid Steel Construction
- Durable Zinc plated finish
Fits any 2 Post Rack
- Shelf Depth: 29.15" (740.41mm)
- Weight Capacity: 500 lb (227 kgs)
- Mounting Depth: 29.15" (740.41mm)
- Compatible with 10-32 Threads and 12-24 Threads
- Shelf does not come with Conversion Brackets (must be purchased separately)
Want something more versatile? Check out our configurable (opens in a new tab) or adjustable (opens in a new tab) version.
See "Additional Information" for Tech Specs.
RackSolutions Relay Rack Shelf - Heavy Duty was designed for 2-post relay racks that need to support heavy duty equipment up to 500 lbs. Created for the largest and heaviest equipment, our relay rack shelf is made of solid steel construction and zinc plated finish to be able to support large blade centers such as IBM, Dell, and HP. In addition, our heavy duty relay shelf can support UPS units, large drive arrays (SAN & NAS appliances) and large chassis servers.
Our 2 post relay rack shelf has a depth of 29.15 inches (740.41 mm) and a weight capacity of 500 lbs (227 kgs), making it perfect for mounting a large variety of electronic equipment on your 2post rack that you might not normally be able to mount.
Our 2post relay rack heavy duty shelf will require a 2post conversion bracket for installation, which will need to be purchased separately. You can select one based on U-height: (2POST-4UKIT, 2POST-5UKIT, 2POST-7UKIT).

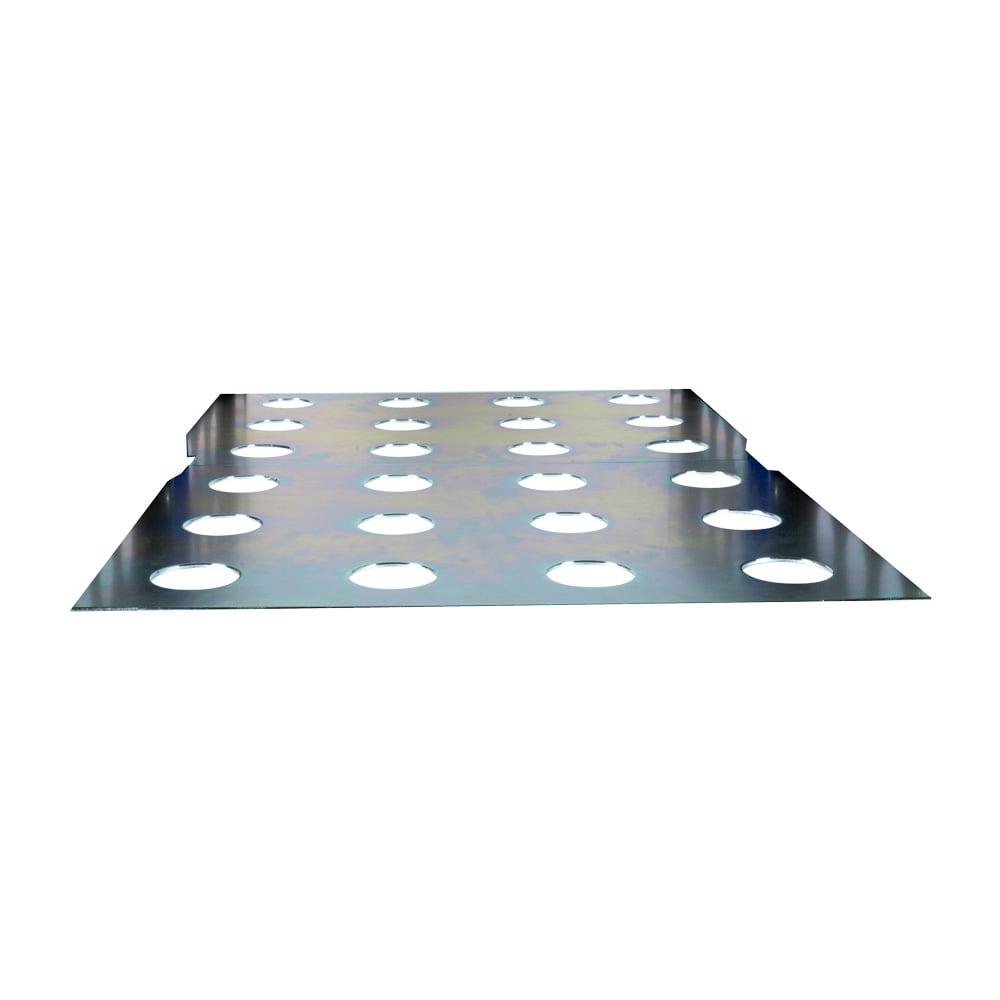

Relay Rack Shelf - Heavy Duty
Our 2post Relay Rack Heavy Duty Shelf designed for 2Post Racks does NOT come with conversion brackets.

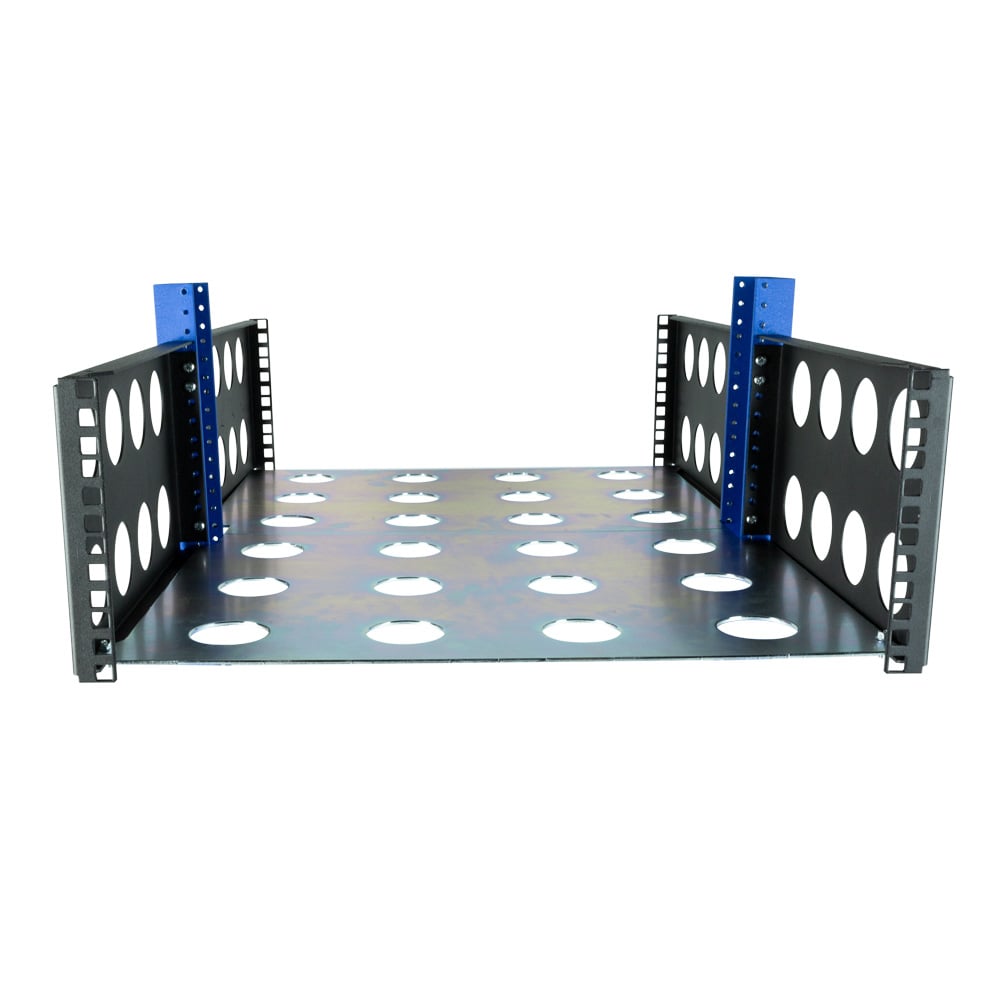

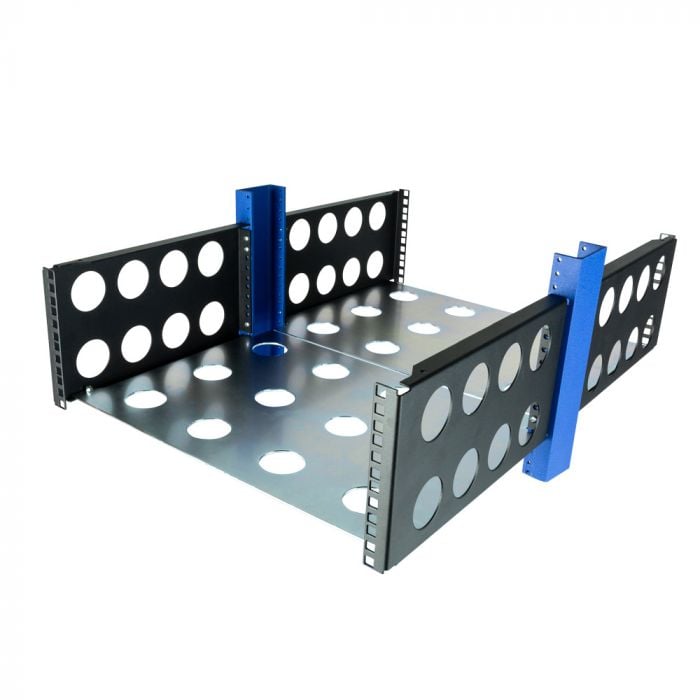

2post Conversion Brackets with Relay Rack Shelf
Our 2post Relay Rack Heavy Duty Shelf will require a 2post conversion bracket for installation, which will need to be purchased separately.
|Synnex Part Number||2USHL-100 - 4757181|
|Ingram Part Number||2USHL-100 - K78530|
|Assembly Notes||Phillips head screwdriver required|
|Equipment Depth||29.15" (740.41mm)|
|Rack Type||2 Post|
|Shelf Surface Area||29.15" x 27.22 w (740.41mm x 691.38 mm)|
|Finish||Shelf: zinc plated
Conversion kits: black textured powder coat
|Mounting Depth Range||29.15" (740.41mm)|
|Weight Capacity||Weight capacity up to 500 lb (227 kgs)|
|Hole Type||10-32 Threads
|Material||Solid Steel Construction|
|Tech Notes||This shelf must be used in conjunction with a 2Post conversion kit.
Blade Server Specs
IBM blade center weight and dimensions
Dell PowerEdge blade servers weight & dimensions
HP ProLiant Blade System Weight & Dimensions
